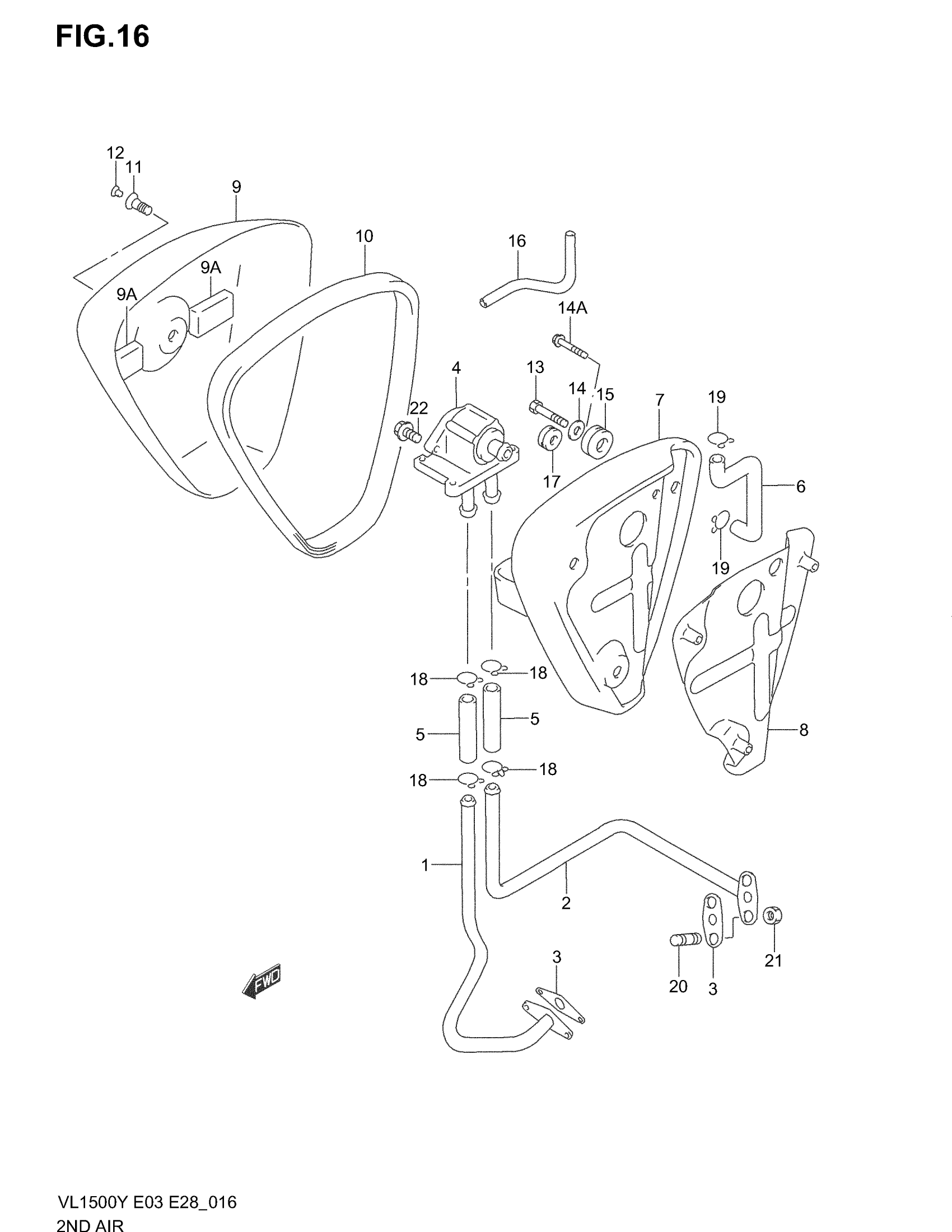

Suzuki VL1500 (2004) 2ND AIR Diagram

#

Description
Price

1

PIPE, 2ND AIR FR

18410-10F00

Unavailable

2

PIPE, 2ND AIR RR

18420-10F00

Unavailable

3

GASKET 2ND AIR PIPE

18441-45C01

$7.05

4

VALVE ASSY, 2ND AIR REED | MODEL W/X/Y/K1/K2/K3 This part replaces 18450-10F02.

18450-10F03

$194.46

4

VALVE ASSY, 2ND AIR | MODEL K4

18450-10F03

$194.46

5

HOSE, 2ND AIR VALVE | MODEL W This part replaces 18461-10F00.

18461-10F01

Unavailable

5

HOSE, 2ND AIR VALVE | MODEL X/Y/K1/K2/K3/K4

18461-10F01

Unavailable

6

HOSE, 2ND AIR CLEANER

18711-10F00

Unavailable

7

BRACKET

18610-10F00

Unavailable

8

PLATE, HEAT GUARD

18740-10F00

Unavailable

9

COVER ASSY, 2ND AIR | Includes Item(s) 9A

18780-10F00

Unavailable

9A

CUSHION, FRONT This part replaces 47161-04A00.

47191-22D00

$5.02

10

CUSHION

18788-48E00

Unavailable

11

BOLT, 2ND AIR COVER (8X25)

09106-08089

$9.27

12

CAP

09250-06011

$2.50

13

BOLT | MODEL W This part replaces 01500-06403.

01500-0640B

$2.62

14

WASHER (6.5X24X1.2) | MODEL W This part replaces 09160-06140.

09160-06114

$2.03

14A

BOLT, 2ND AIR SUPPORT | MODEL X/Y/K1/K2/K3/K4

09116-06176

Unavailable

15

CUSHION

09320-10014

$2.92

16

HOSE (3.5X7.5X600) | MODEL W,L:600!170 MODEL X,L:600!185 MODEL Y/K1/K2/K3/K4,L:600!190 This part replaces 09355-35755-600.

09355-35007-600

$6.94

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

18

CLIP

09401-13409

$2.12

19

CLIP

09401-15101

$2.26

20

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

21

NUT This part replaces 08316-10063.

08316-1006B

$2.50

22

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
