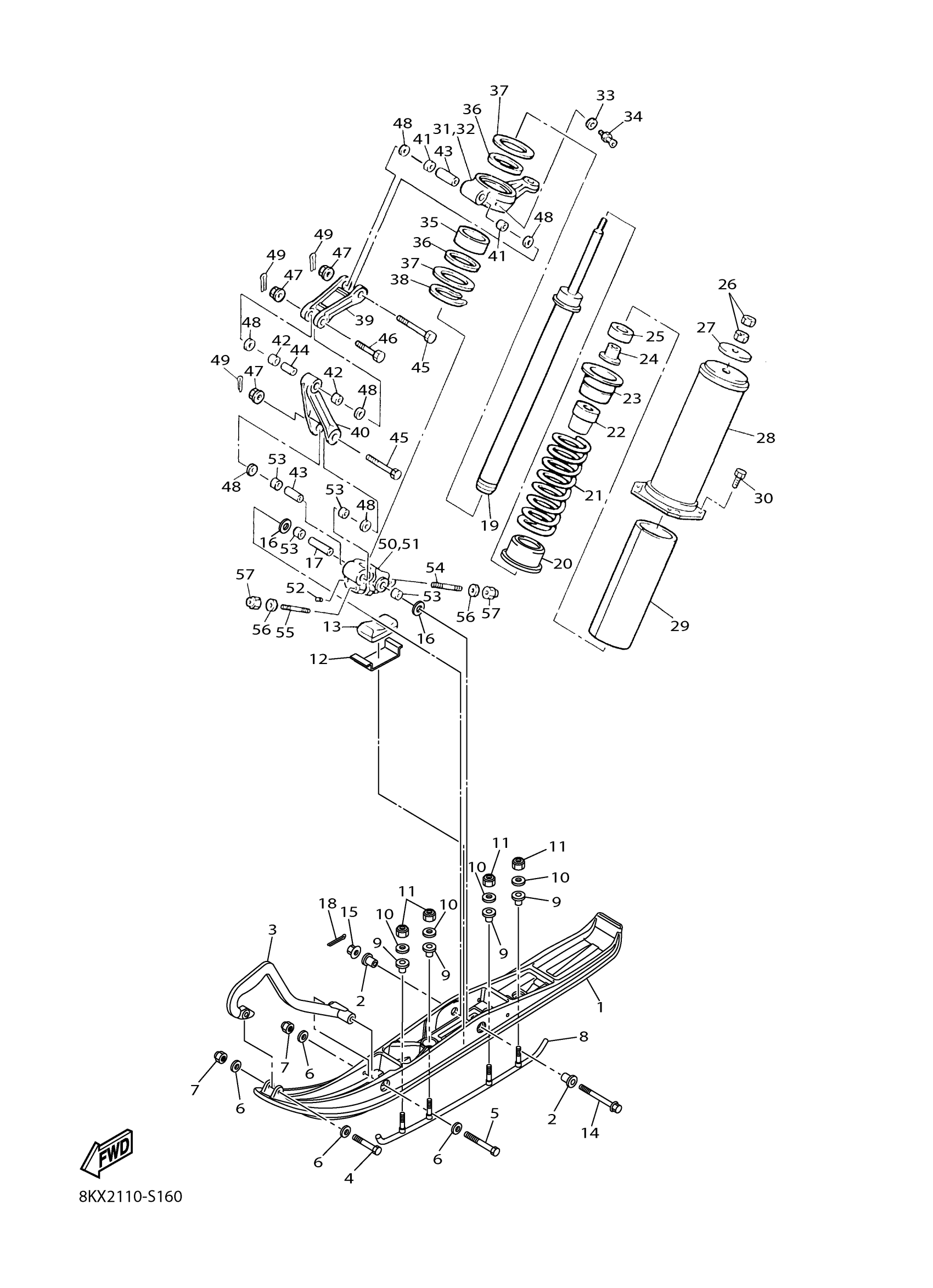

Yamaha VK5NFNW (VK540) 8KXA0 2022 SKI Diagram
#
1
SKI 1
8AC-23711-00-00
Unavailable
2
COLLAR, 1
8AC-23754-00-00
$45.99
3
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
4
BOLT, HEXAGON
97017-08055-00
$9.49
5
BOLT, REINFORCEMENT HEAD 2
8HG-23756-00-00
Unavailable
6
WASHER, PLATE (3L7)
90201-08784-00
$3.23
7
NUT, NYLON
95717-08300-00
$2.70
8
RUNNER 1
8EN-23731-02-00
$246.99
9
COLLAR
90387-09018-00
$5.60
10
WASHER, PLATE
90201-08043-00
$7.49
11
NUT, NYLON
95717-08300-00
$2.70
12
STOPPER
8AC-23765-00-00
$6.99
13
STOPPER 1
88T-23743-00-00
$23.99
14
BOLT, FLANGE
90105-10410-00
$14.99
15
NUT, S/L FLANGE
95602-10200-00
$4.82
16
WASHER, PLATE(8BV)
90201-100S7-00
Unavailable
17
COLLAR (8V0)
90387-106J3-00
Unavailable
18
PIN, COTTER
91490-20025-00
Unavailable
19
DAMPER SUB ASSY
8KA-22401-00-00
Unavailable
20
SEAT, SPRING 2
8KA-23777-00-00
Unavailable
21
SPRING, COMPRESSION (8L9)
90501-75612-00
Unavailable
22
BUMP, STOP
89L-22493-00-00
Unavailable
23
PLATE, BACK UP
8AB-23788-00-00
Unavailable
24
COLLAR(82M)
90387-084R1-00
Unavailable
25
WASHER
82M-23779-00-00
Unavailable
26
NUT
95302-08600-00
Unavailable
27
WASHER, PLATE(82M)
90201-080L1-00
Unavailable
28
HOLDER, ABSORBER
8AT-2376J-00-00
Unavailable
29
PROTECTOR
8L0-2376R-00-00
Unavailable
30
BOLT, HEXAGON
97017-06020-00
Unavailable
31
ARM, OUTSIDE 1
82M-23851-00-00
Unavailable
32
ARM, OUTSIDE 2
8AT-23852-00-00
Unavailable
33
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
34
NIPPLE, GREASE
93700-06M03-00
Unavailable
35
BUSH, BIMETAL FORMED (8U7)
90384-53175-00
Unavailable
36
OIL SEAL (8U7)
93109-53036-00
Unavailable
37
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
37
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
38
CIRCLIP (8L9)
93410-52061-00
Unavailable
39
ARM, FRONT 1
8L0-2382E-01-00
Unavailable
40
ARM, FRONT 2
8L0-2382F-00-00
Unavailable
41
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
42
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
43
COLLAR(89A)
90387-101Y9-00
Unavailable
44
COLLAR (8L0)
90387-100A4-00
Unavailable
45
BOLT, WITH HOLE (8L0)
90102-10039-00
Unavailable
46
BOLT, HEXAGON SOCKET HEAD(85L)
90110-10173-00
Unavailable
47
NUT, NYLON
95707-10300-00
Unavailable
48
WASHER PLATE 626441260000
90202-14037-00
Unavailable
49
PIN, COTTER
91490-20025-00
Unavailable
50
BRACKET 1
84M-2376E-00-00
Unavailable
51
BRACKET 2
84M-2377E-00-00
Unavailable
52
BOLT, SET (8K2)
90113-06039-00
Unavailable
53
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
54
BOLT, STUD 3
95617-08655-00
Unavailable
55
BOLT, STUD 3
95617-08640-00
Unavailable
56
.. WASHER, PLATE
92990-08600-00
Unavailable
57
NUT, NYLON
95717-08300-00
$2.70
