Description

Price

1

OIL PUMP ASSY

8AT-13101-00-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.92

4

SPRING, CHECK BALL (451)

90501-02217-00

$7.49

5

HOSE

91A30-03052-00

Unavailable

6

NOZZLE

353-13552-01-00

$9.99

7

CLIP (2A6)

90468-02025-00

$9.49

8

GASKET 137131870000

90430-04004-00

$9.49

9

SCREW, BINDING

98907-04020-00

Unavailable

10

PLATE, ADJUSTING

137-13138-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-10

$7.99

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

15

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

16

WASHER(3SX)

92907-05100-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

Unavailable

18

CLIP (2A6)

90468-02025-00

$9.49

19

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

20

SCREW, PAN HEAD

98507-04018-00

Unavailable

21

PUMP CABLE ASSY

8KX-26320-01-00

Unavailable

22

CLAMP (3Y2)

90464-16039-00

Unavailable

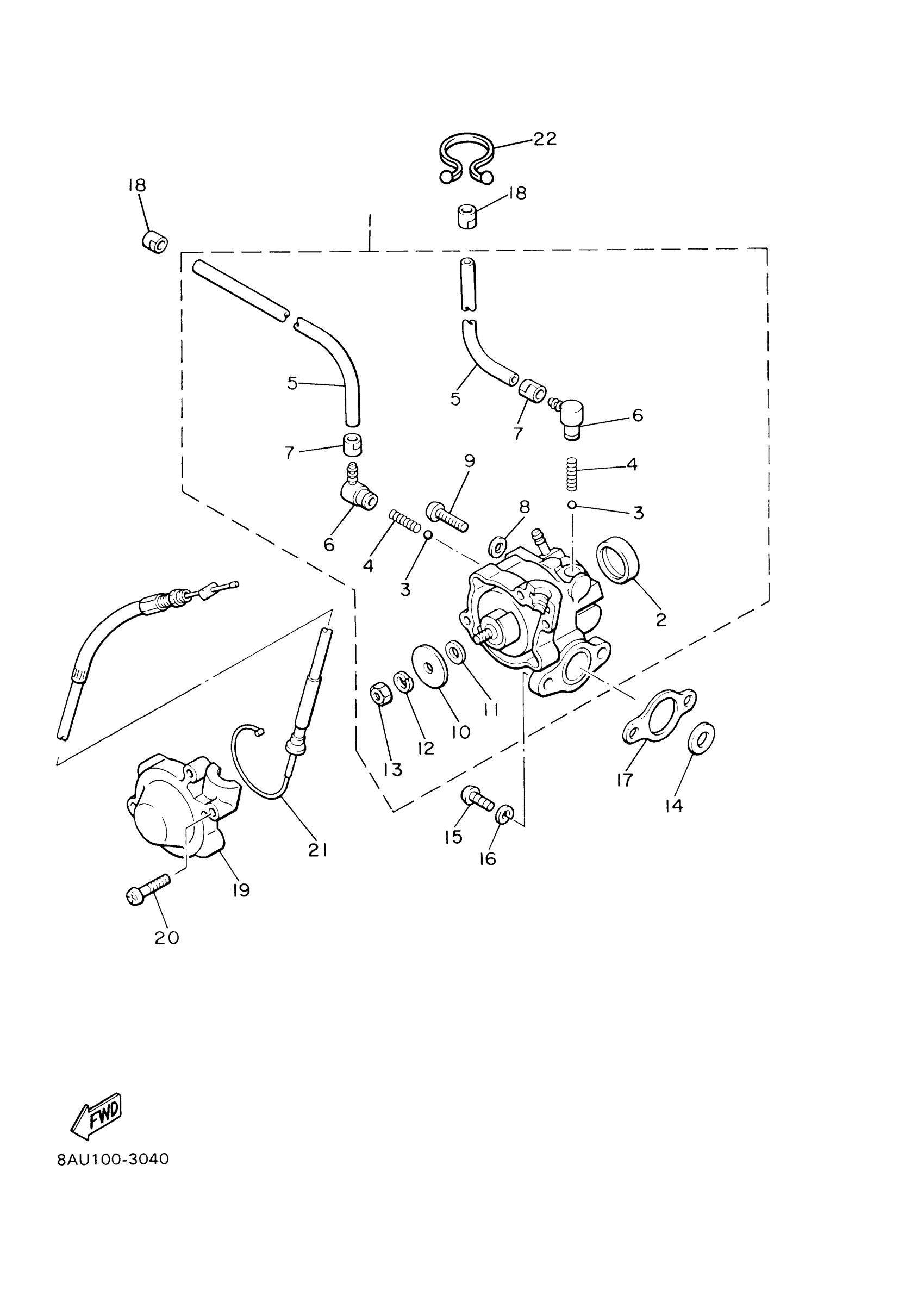

Yamaha VK5NFNW (VK540) 8KXA0 2022 OIL PUMP Diagram

OIL PUMP ASSY

. PLUG

BALL

SPRING, CHECK BALL (451)

HOSE

NOZZLE

CLIP (2A6)

GASKET 137131870000

SCREW, BINDING

PLATE, ADJUSTING

SHIM,PLUNGER

YBS67-5 WASHER, SPRING

NUT, HEXAGON (663)

WASHER, PLATE (1E7)

SCREW, PAN HEAD(JJ6)

WASHER(3SX)

GASKET, PUMP CASE

CLIP (2A6)

COVER, ADJUST PULLEY

SCREW, PAN HEAD

PUMP CABLE ASSY

CLAMP (3Y2)
