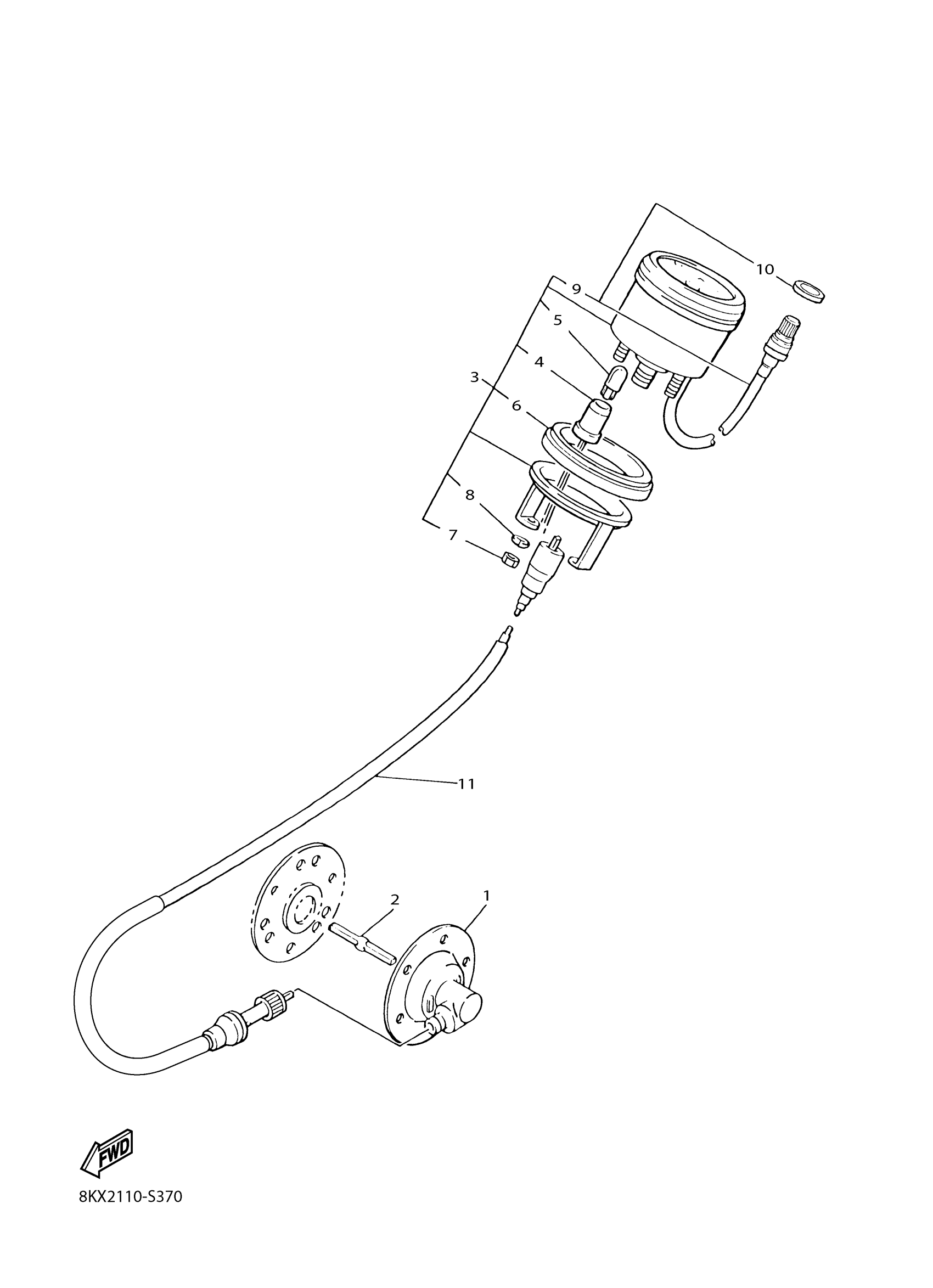

Yamaha VK5NFNW (VK540) 8KXA0 2022 METER Diagram

#

Description
Price

1

METER GEAR HOUSING COMP.

8JD-47700-00-00

$100.14

2

JOINT

8K4-47715-00-00

$4.29

3

SPEEDOMETER ASSY (KM/H)

86V-83510-20-00

Unavailable

3

SPEEDOMETER ASSY

87R-83510-40-00

Unavailable

4

SOCKET CORD ASSY

5E2-83509-20-00

$24.52

5

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.64

6

DAMPER, METER

8G6-83523-00-00

Unavailable

7

NUT, HEXAGON (663)

95380-05600-00

$6.08

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

TRIP METER CABLE ASSY

8K1-83603-02-00

Unavailable

10

NUT

8K1-8366W-00-00

Unavailable

11

TACHOMETER CABLE ASSY

8H4-83560-10-00

$40.12
