Description

Price

1

PANEL, INSTRUMENT

8KX-77711-00-00

$226.99

2

SCREW, BINDING

98907-06016-00

$9.49

3

SCREW, FLAT FILLISTER

90155-06007-00

Unavailable

4

COLLAR(83R)

90387-060U0-00

$10.49

5

NUT, SPRING

90183-06100-00

$10.49

6

LOUVER 1

83R-77131-01-00

Unavailable

7

LOUVER 2

83R-77132-01-00

Unavailable

8

BOLT, FLANGE

95817-06016-00

$2.75

9

NUT, NYLON

95707-06300-00

$3.50

10

SCREW, FLAT

98707-04016-00

$8.49

11

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

12

NUT, NYLON

95707-04300-00

$1.01

13

SHIELD 1

83R-77731-00-00

$75.99

14

RIVET(81E)

90269-05055-00

$8.49

15

PANEL, INSTRUMENT

8KX-77712-00-00

$161.99

16

GROMMET, INSTRUMENT PANEL

8KX-77740-00-00

Unavailable

17

SCREW, BINDING

98907-05020-00

Unavailable

18

WASHER PLATE (664)

90201-05556-00

Unavailable

19

NUT, NYLON

95707-05300-00

Unavailable

20

BOLT

90109-05012-00

Unavailable

21

HOLDER

8KX-2419A-00-00

Unavailable

22

BRACKET 1

8KX-77721-00-00

Unavailable

23

BRACKET 2

8KX-77722-00-00

Unavailable

24

BRACKET 3

8KX-77723-00-00

Unavailable

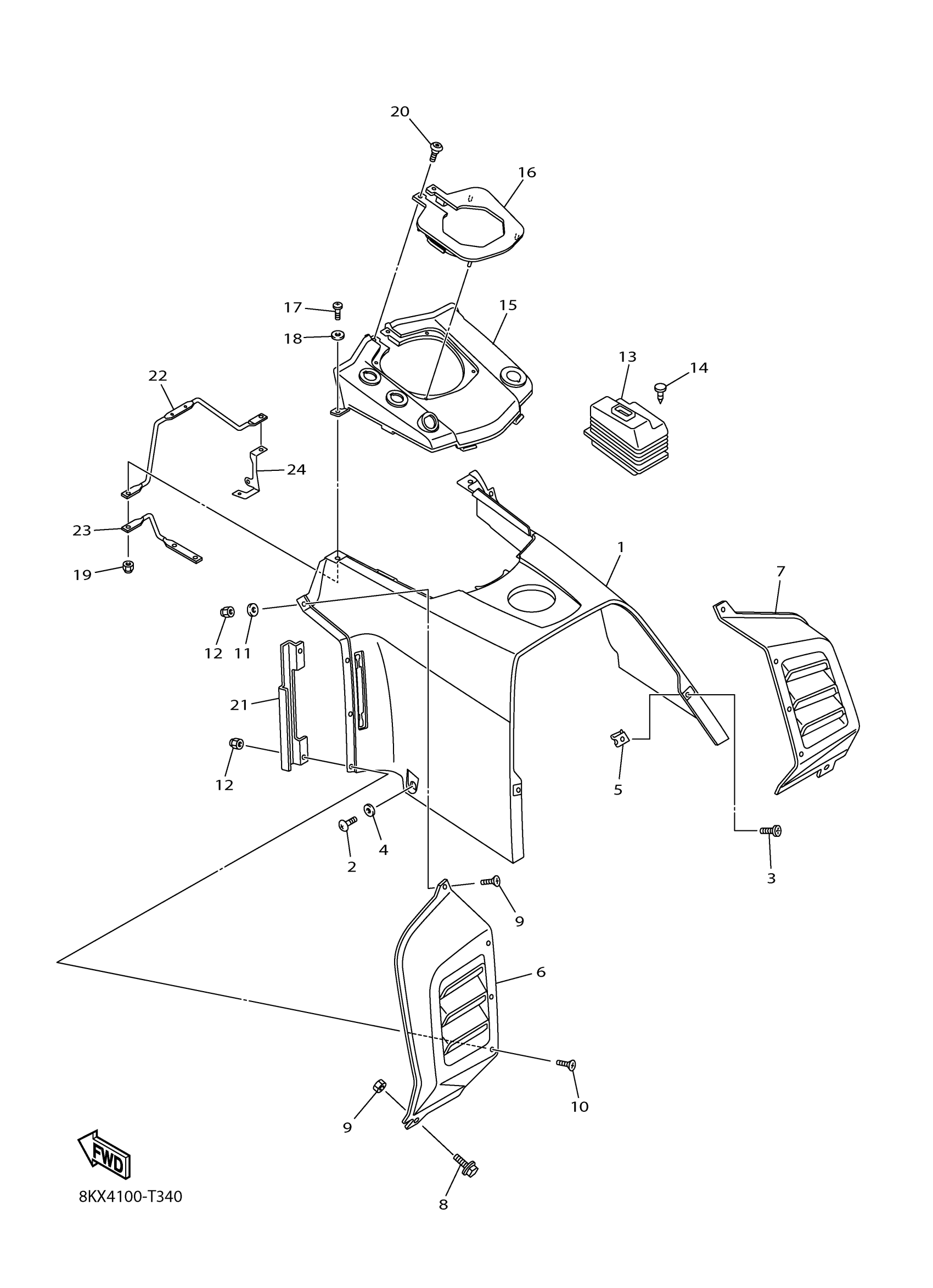

Yamaha VK5NFNW (VK540) 8KXA0 2022 INSTRUMENT PANEL Diagram

PANEL, INSTRUMENT

SCREW, BINDING

SCREW, FLAT FILLISTER

COLLAR(83R)

NUT, SPRING

LOUVER 1

LOUVER 2

BOLT, FLANGE

NUT, NYLON

SCREW, FLAT

WASHER, PLATE (8M6)

NUT, NYLON

SHIELD 1

RIVET(81E)

PANEL, INSTRUMENT

GROMMET, INSTRUMENT PANEL

SCREW, BINDING

WASHER PLATE (664)

NUT, NYLON

BOLT

HOLDER

BRACKET 1

BRACKET 2

BRACKET 3
