Description

Price

1

STAY, FAIRING

8KX-77241-00-00

Unavailable

2

WASHER, PLATE

90201-06078-00

$5.60

3

NUT, NYLON

95707-06300-00

$3.50

4

GROMMET(4DN)

90480-01558-00

$4.19

5

FAIRING

8KX-77231-00-P0

Unavailable

6

COVER, HEADLIGHT

8KX-77251-00-00

$154.99

7

SCREW, FLAT

98707-05016-00

$7.99

8

WASHER, PLATE 8067717800

90201-05029-00

$8.49

9

NUT, NYLON

95707-05300-00

$4.24

10

WINDSHIELD COMP.

8KX-77210-01-00

Unavailable

11

TRIM, UPPER

8KX-77213-00-00

Unavailable

12

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

13

NUT(1KT)

90179-05523-00

$8.49

14

REAR VIEW MIRROR ASSY (LEFT)

8KW-26280-00-00

$118.99

15

REAR VIEW MIRROR ASSY (RIGHT)

8KW-26290-00-00

$118.99

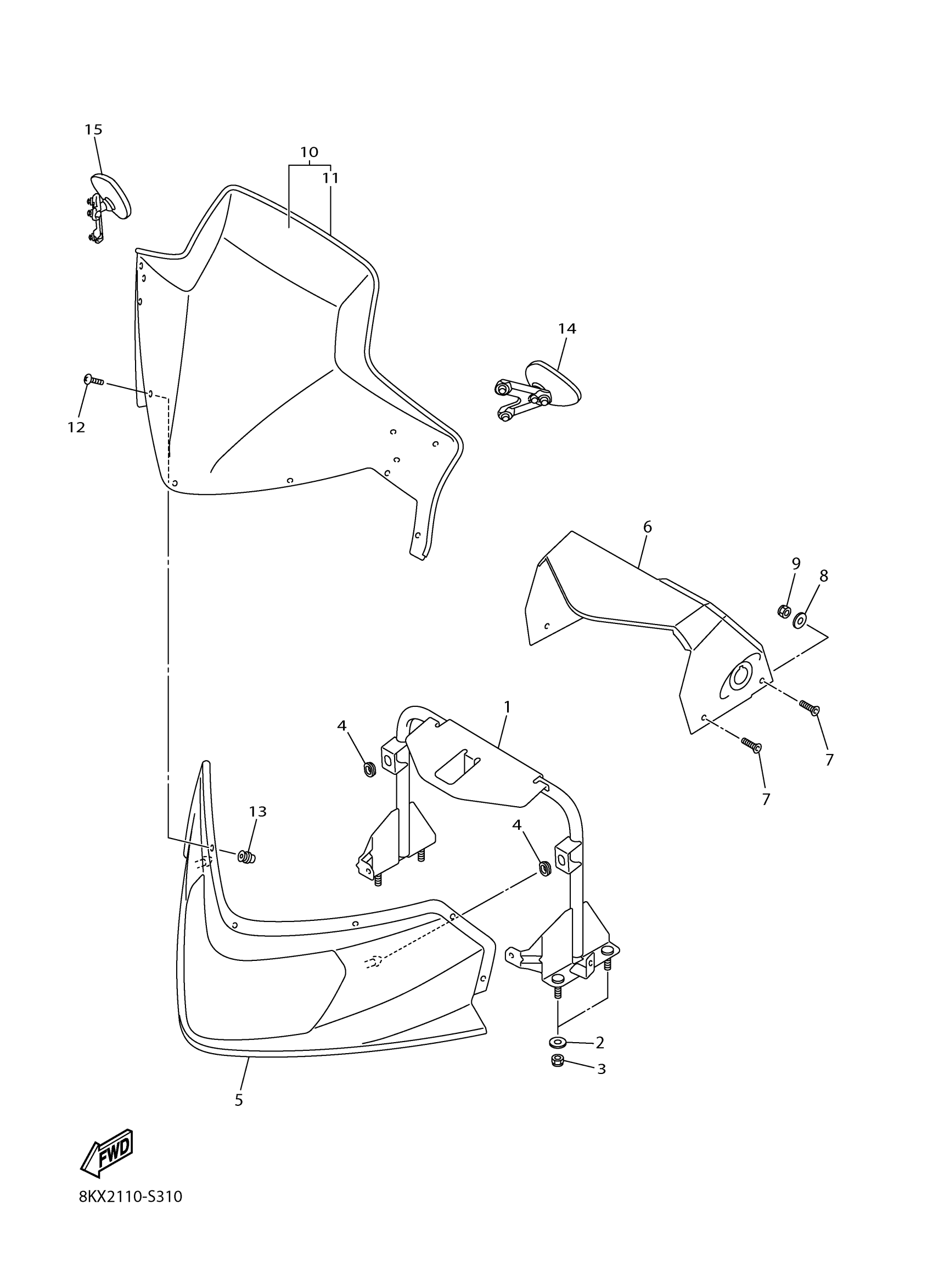

Yamaha VK5NFMW (VK540) 8KX91 2021 WINDSHIELD Diagram

STAY, FAIRING

WASHER, PLATE

NUT, NYLON

GROMMET(4DN)

FAIRING

COVER, HEADLIGHT

SCREW, FLAT

WASHER, PLATE 8067717800

NUT, NYLON

WINDSHIELD COMP.

TRIM, UPPER

SCREW, ROUND HEAD(1UX)

NUT(1KT)

REAR VIEW MIRROR ASSY (LEFT)

REAR VIEW MIRROR ASSY (RIGHT)
