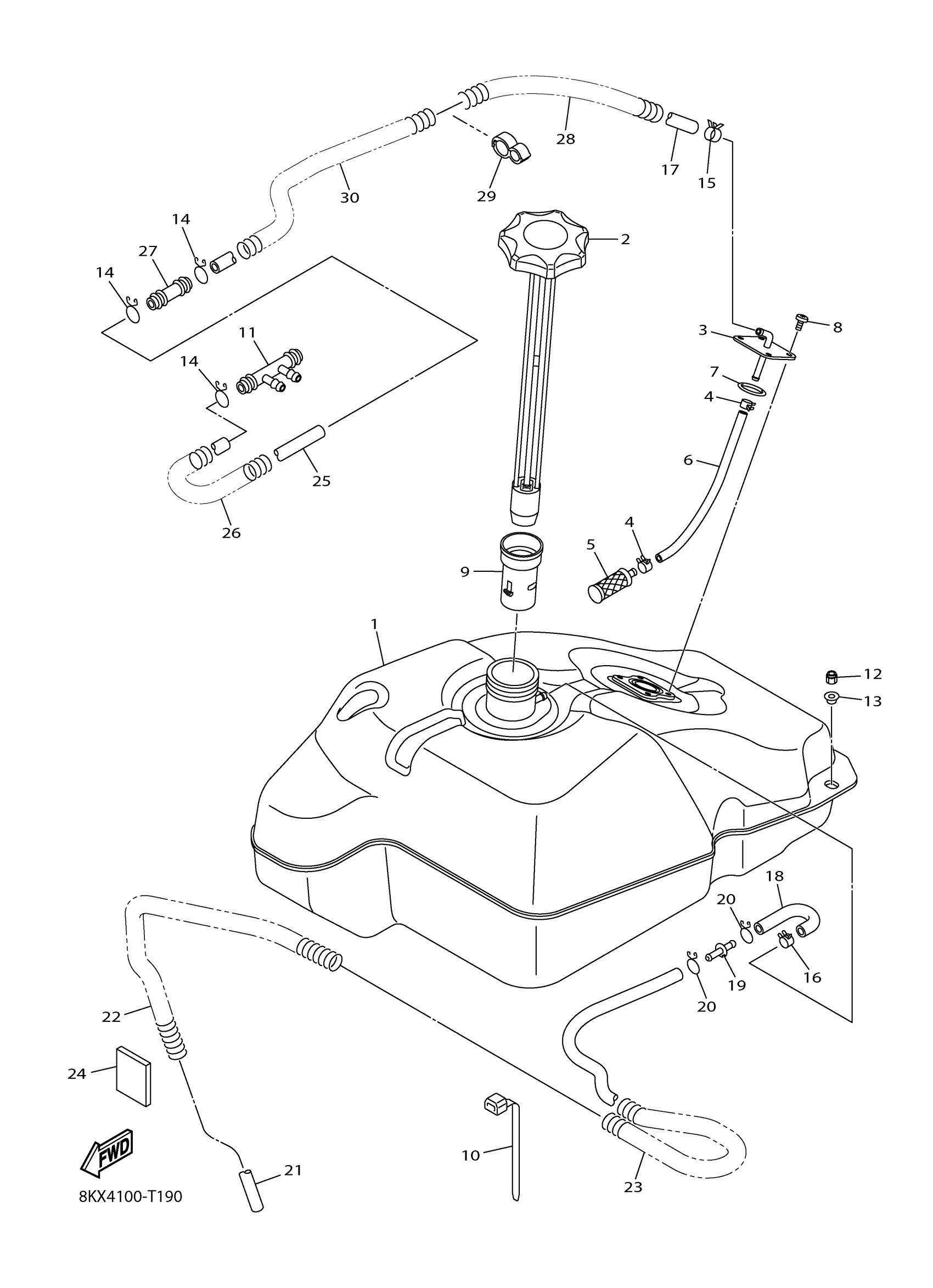

Yamaha VK5NFMW (VK540) 8KX91 2021 FUEL TANK Diagram
#
1
TANK, FUEL
8KX-24111-00-00
Unavailable
2
CAP ASSY
8KX-24610-01-00
Unavailable
3
SUCTION PIPE COMP. 1
8KX-24301-00-00
Unavailable
4
CLIP (7K7)
90467-11044-00
$8.49
5
FILTER ASSY
J58-24560-00-00
$39.99
6
.. HOSE (L240)
90445-11M27-00
Unavailable
7
O-RING (102)
93210-41041-00
$7.49
8
SCREW, BIND(6K1)
98980-05010-00
Unavailable
9
TUBE, FILLER
8KX-24114-00-00
Unavailable
10
CLAMP(4FM)
90464-15195-00
$4.41
11
PIPE, JOINT 1
82M-24376-00-00
$31.99
12
NUT, NYLON
95717-08300-00
$2.70
13
COLLAR(1HX)
90387-081N1-00
$7.49
14
CLIP (8J7)
90467-11009-00
$10.49
15
CLIP (7K7)
90467-11044-00
$8.49
16
CLIP (8A1)
90467-09026-00
Unavailable
17
HOSE
90445-11099-00
Unavailable
18
PIPE, JOINT
8KX-24461-00-00
Unavailable
19
PIPE, JOINT
8H8-24376-00-00
Unavailable
20
CLIP (8L2)
90467-08017-00
Unavailable
21
TUBE, FLEXIBLE
91A21-05170-00
Unavailable
22
SPRG., COMPRESSION (8BY1)
90501-083J9-00
Unavailable
23
PROTECTOR, PIPE
81E-24328-00-00
Unavailable
24
SPACER
8V0-23858-00-00
Unavailable
25
HOSE
90445-11068-00
Unavailable
26
PROTECTOR, PIPE
84M-24327-00-00
Unavailable
27
PIPE, JOINT 4
878-24379-00-00
Unavailable
28
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
29
CLAMP(4GL)
90464-10233-00
Unavailable
30
SPRING, COMPRESSION
90501-080A8-00
Unavailable
