Description

Price

1

STAY, FAIRING

8KX-77241-00-00

Unavailable

2

WASHER, PLATE

90201-06078-00

$5.60

3

NUT, NYLON

95707-06300-00

$3.50

4

GROMMET(4DN)

90480-01558-00

$4.19

5

FAIRING

8KX-77231-00-P0

Unavailable

6

COVER, HEADLIGHT

8KX-77251-00-00

$154.99

7

SCREW, FLAT

98707-05016-00

$7.99

8

WASHER, PLATE 8067717800

90201-05029-00

$8.49

9

NUT, NYLON

95707-05300-00

$4.24

10

WINDSHIELD

8KX-K7210-01-00

Unavailable

11

. TRIM, UPPER

8KX-K7213-00-00

Unavailable

12

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

13

NUT(1KT)

90179-05523-00

$8.49

14

REAR VIEW MIRROR ASSY (LEFT)

8KW-26280-00-00

$118.99

15

REAR VIEW MIRROR ASSY (RIGHT)

8KW-26290-00-00

$118.99

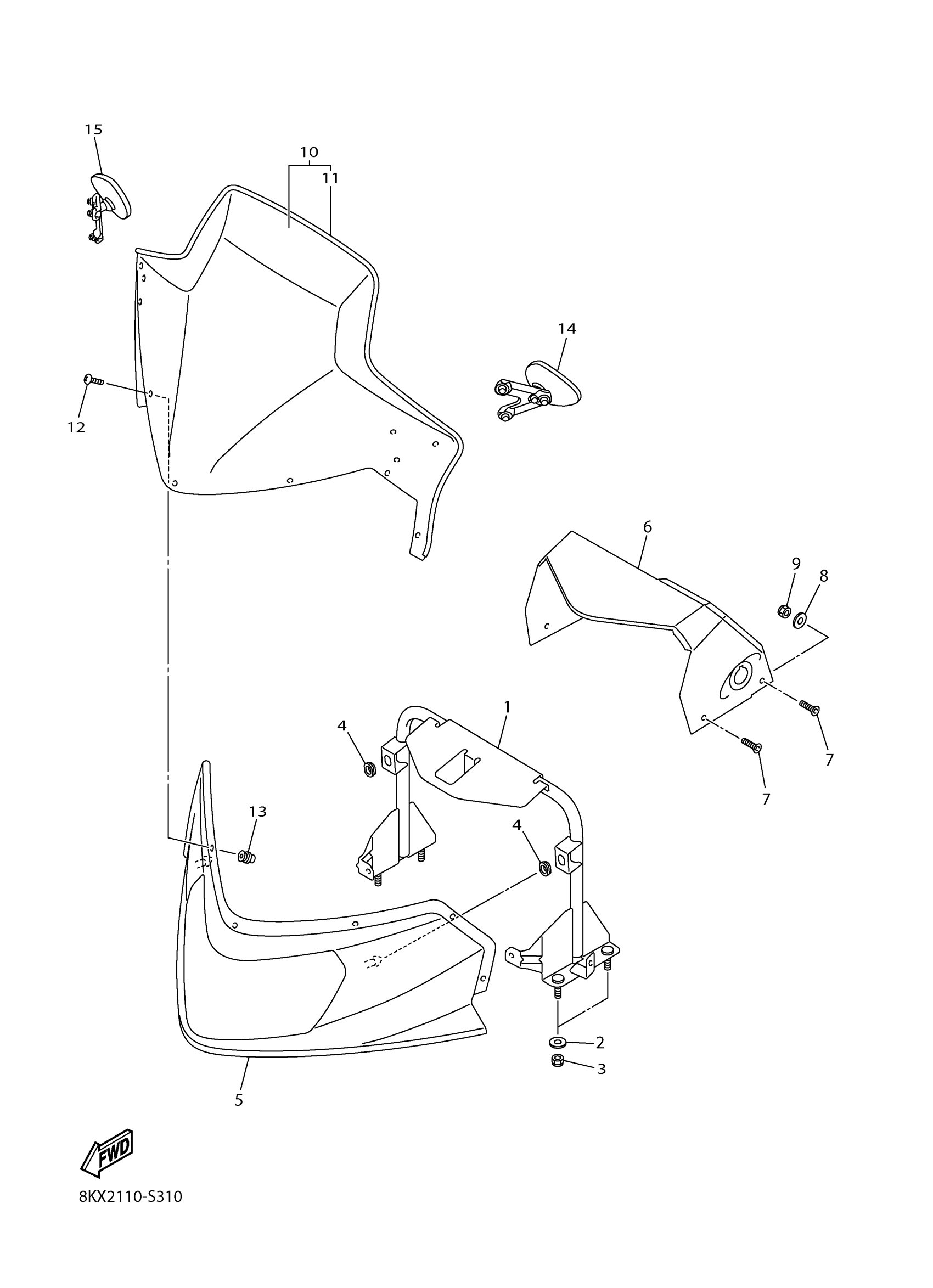

Yamaha VK5NFLW (VK540) 8KX82 2020 WINDSHIELD Diagram

STAY, FAIRING

WASHER, PLATE

NUT, NYLON

GROMMET(4DN)

FAIRING

COVER, HEADLIGHT

SCREW, FLAT

WASHER, PLATE 8067717800

NUT, NYLON

WINDSHIELD

. TRIM, UPPER

SCREW, ROUND HEAD(1UX)

NUT(1KT)

REAR VIEW MIRROR ASSY (LEFT)

REAR VIEW MIRROR ASSY (RIGHT)
