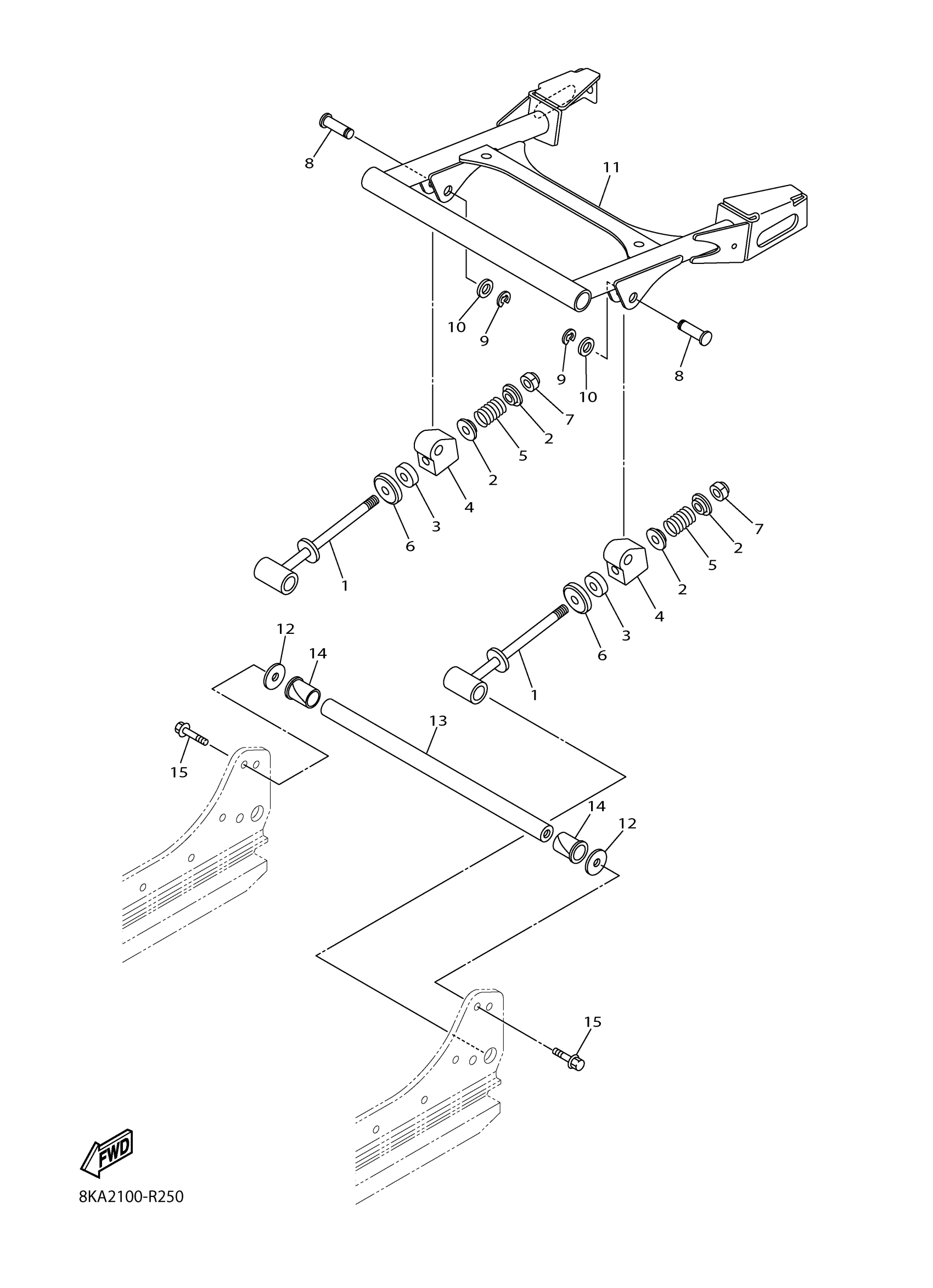

Yamaha VK5NFLW (VK540) 8KX82 2020 TRACK SUSPENSION 3 Diagram

#

Description
Price

1

SHAFT, PIVOT

83R-47337-10-00

Unavailable

2

SEAT, SPRING 1

83R-23768-00-00

$5.30

3

SPRING

83R-47335-00-00

Unavailable

4

HOOK 1

8KA-47446-00-00

$15.09

5

SPRING, COMPRESSION

90501-380A0-00

$6.81

6

SEAT, SPRING 1

8KW-23768-00-00

Unavailable

7

NUT, NYLON(663)

90185-12058-00

$14.93

8

PIN

90249-12006-00

$5.81

9

CIRCLIP(10Y)

99009-12400-00

$2.87

10

WASHER, PLATE

90201-12055-00

$6.04

11

ARM, PIVOT 3

8KA-47333-00-00

Unavailable

12

WASHER PLATE (3L6)

90201-10742-00

$6.60

13

SHAFT 3

83R-47485-02-00

$70.09

14

BUSH, SOLID(8CJ)

90381-19111-00

$11.02

15

BOLT, FLANGE

95817-10030-00

$5.75
