- VK5NFLW (VK540) 8KX82 2020
TRACK SUSPENSION 2

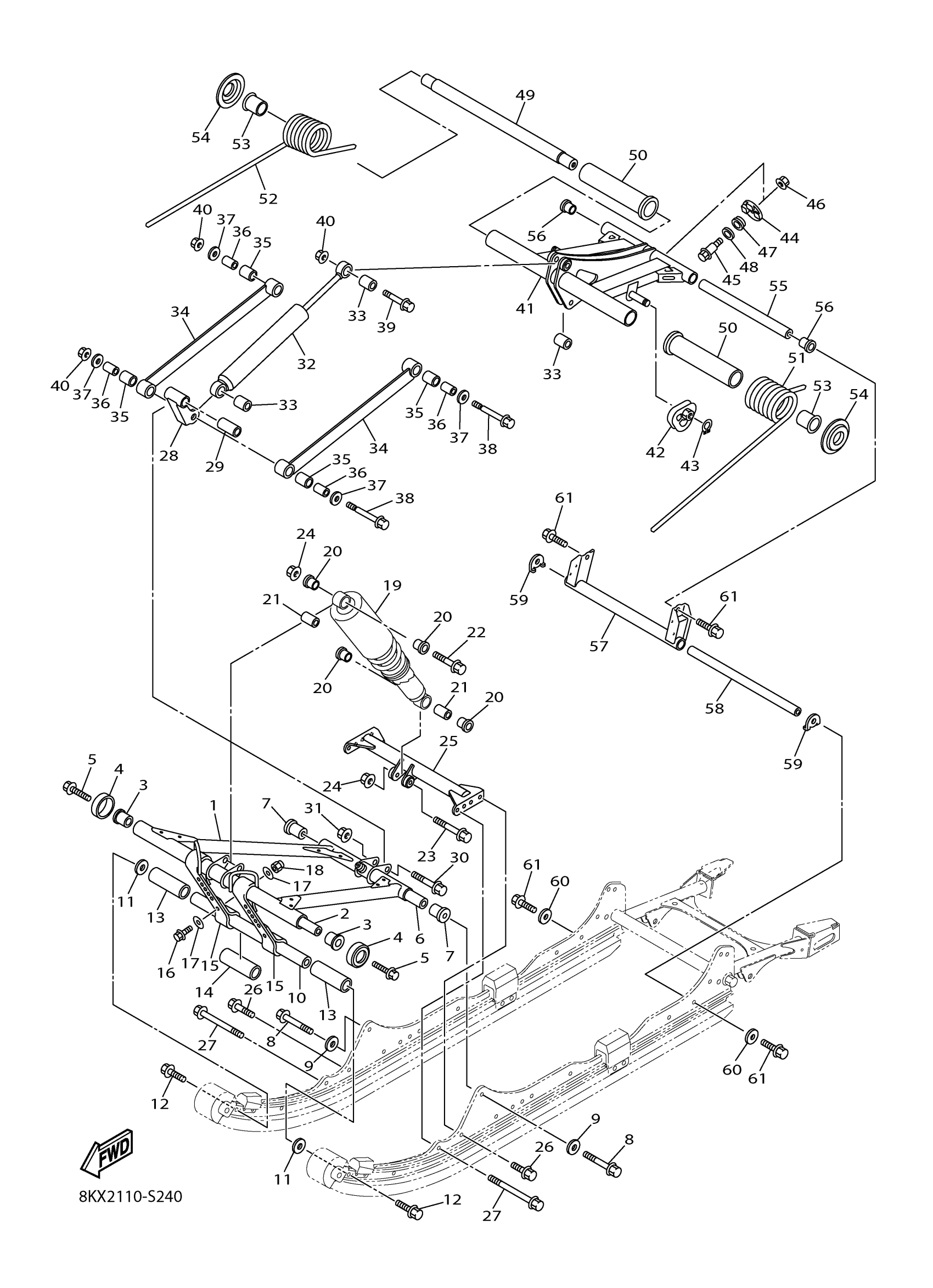

Yamaha VK5NFLW (VK540) 8KX82 2020 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8KA-47331-00-00
Unavailable
2
SHAFT 1
8KA-47465-00-00
Unavailable
3
BUSH, FORMED
90383-22001-00
$5.60
4
SPACER
8KA-47341-00-00
Unavailable
5
BOLT
90109-10032-00
$8.49
6
SHAFT 4
8JD-47486-00-00
Unavailable
7
COLLAR
90387-10022-00
$18.99
8
BOLT, FLANGE
90105-10209-00
$8.49
9
WASHER, PLATE
90201-10072-00
$3.50
10
SHAFT 3
83R-47485-02-00
$76.99
11
WASHER, PLATE (26H)
90201-102G9-00
$9.49
12
BOLT, FLANGE
95817-10030-00
$8.49
13
COLLAR
90387-19002-00
$7.49
14
COLLAR
90387-19007-00
Unavailable
15
STOPPER 1
8HR-47495-00-00
$67.99
16
BOLT, HEXAGON
97017-06025-00
Unavailable
17
WASHER, PLATE
90201-06081-00
Unavailable
18
NUT, NYLON
95707-06300-00
Unavailable
19
SHOCK ABSORBER 2
8KE-47481-00-00
Unavailable
20
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
21
COLLAR (8U7)
90387-105G5-00
Unavailable
22
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
23
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
24
NUT, S/L FLANGE
95602-10200-00
Unavailable
25
BRACKET, ARM PIVOT
8KA-47349-10-00
Unavailable
26
BOLT, FLANGE
95817-10020-00
Unavailable
27
BOLT, FLANGE
95812-10080-00
Unavailable
28
BRACKET 2
8KA-47416-10-00
Unavailable
29
COLLAR
90387-10054-00
Unavailable
30
BOLT, FLANGE
90105-10390-00
Unavailable
31
NUT, S/L FLANGE
95602-10200-00
Unavailable
32
SHOCK ABSORBER
8KA-47480-00-00
Unavailable
33
COLLAR
90387-10023-00
Unavailable
34
ROD, RELAY
8KA-47494-00-00
Unavailable
35
BUSH
90386-16001-00
Unavailable
36
COLLAR (8K4)
90387-101A1-00
Unavailable
37
WASHER, PLATE
90201-10043-00
Unavailable
38
BOLT, FLANGE
90105-10288-00
Unavailable
39
BOLT, FLANGE
90105-10390-00
Unavailable
40
NUT, S/L FLANGE
95602-10200-00
Unavailable
41
ARM, PIVOT 2
8KA-47332-10-00
Unavailable
42
HOOK 2
8ES-47447-00-00
Unavailable
43
CIRCLIP(13H)
99009-14400-00
Unavailable
44
HOOK 3
8KA-47448-00-00
Unavailable
45
BOLT
90109-08186-00
Unavailable
46
NUT, SELF-LOCKING
95602-08200-00
Unavailable
47
GROMMET(2UJ)
90480-16501-00
Unavailable
48
WASHER, PLATE
90201-12047-00
Unavailable
49
SHAFT 2
8KA-47475-00-00
Unavailable
50
PROTECTOR
8GL-47445-01-00
Unavailable
51
SPRING, REAR 1(K=2800NMM/DEG)
8KA-47473-00-00
Unavailable
52
SPRING, REAR 1(K=2800NMM/DEG)
8KA-47474-00-00
Unavailable
53
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
54
PLATE, GUIDE
8ES-47467-00-00
Unavailable
55
SHAFT 6
8JD-47488-00-00
Unavailable
56
BUSH, SOLID(8CJ)
90381-19111-00
Unavailable
57
BRACKET 3
8JD-47417-01-00
Unavailable
58
SHAFT 3
83R-47485-02-00
$76.99
59
WASHER, CLAW
90214-10007-00
Unavailable
60
WASHER, PLATE
90201-10052-00
Unavailable
61
BOLT, FLANGE
95817-10030-00
$8.49
