TRACK SUSPENSION 1

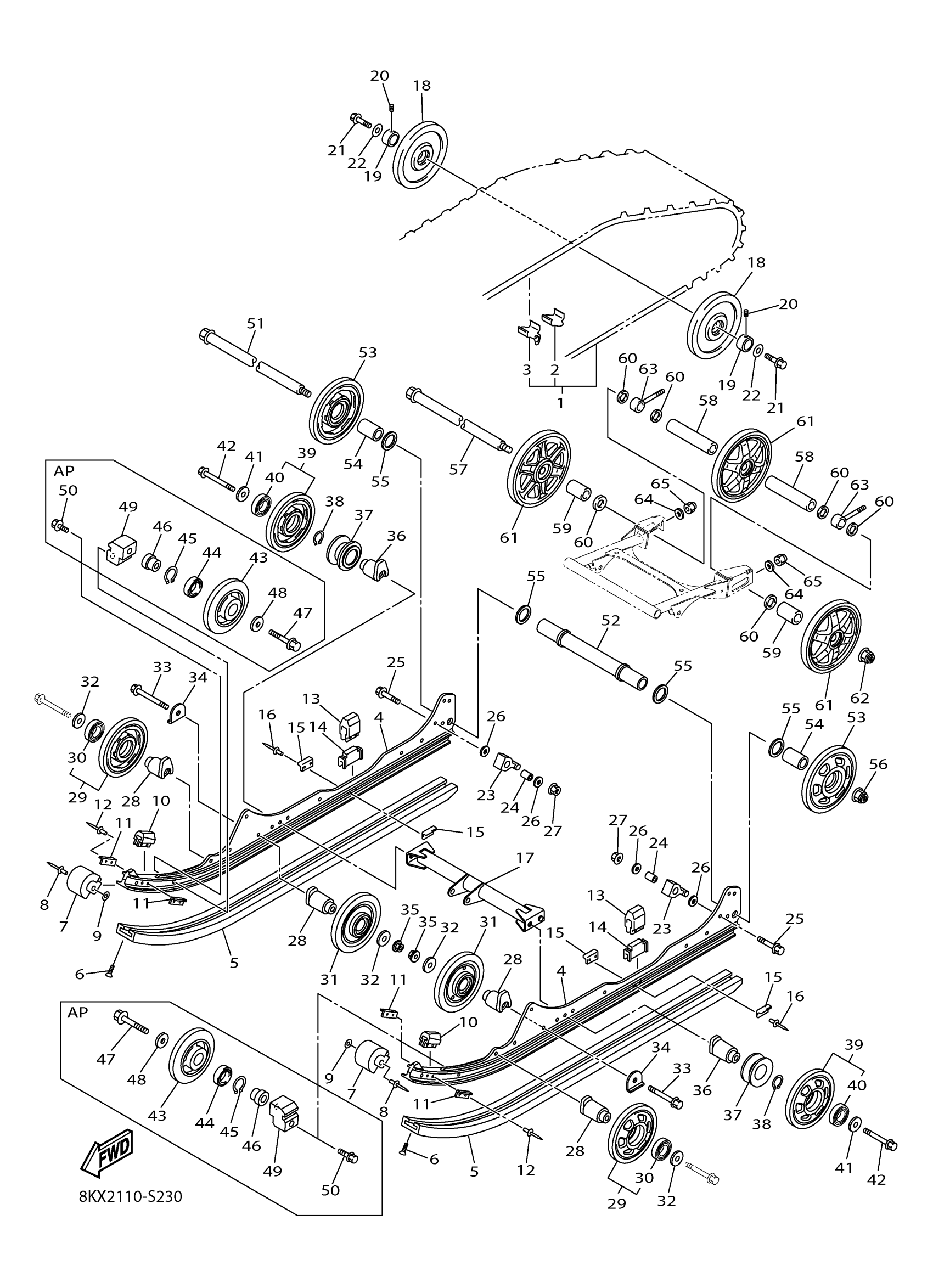

Yamaha VK5NFLW (VK540) 8KX82 2020 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8KX-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
3
METAL, SLIDE
8HR-47115-09-00
$16.99
4
FRAME, SLIDING
8KW-4741A-01-00
$340.99
5
RUNNER, SLIDING 1
8JD-47421-01-00
$53.99
6
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
7
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
8
RIVET BLIND
90267-48194-00
$3.28
9
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
10
DAMPER 1
8ES-47456-00-00
$6.99
11
PLATE, DAMPER
8K2-47458-01-00
$4.77
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8AC-47457-00-00
$18.49
14
SPACER
8KA-47573-00-00
Unavailable
15
PLATE, DAMPER
8AX-47458-00-00
$10.99
16
RIVET, BLIND
90267-48199-00
$3.76
17
BRACKET, ARM PIVOT
8KW-47349-00-00
Unavailable
18
GUIDE WHEEL ASSY
8AC-47550-00-00
Unavailable
19
COLLAR 1
8JD-47365-00-00
Unavailable
20
BOLT, SET (8K2)
90113-06039-00
Unavailable
21
BOLT
90109-10032-00
Unavailable
22
WASHER, PLATE
90201-10072-00
Unavailable
23
STOPPER 2
8JH-47496-00-00
Unavailable
24
COLLAR (8U7)
90387-105G5-00
Unavailable
25
BOLT, FLANGE
90105-10209-00
Unavailable
26
WASHER, PLATE
90201-10052-00
Unavailable
27
NUT, S/L FLANGE
95602-10200-00
Unavailable
28
BRACKET 7
8ES-47419-20-00
Unavailable
29
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
30
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
31
SUSPENSION WHEEL ASSY
8KA-47310-00-00
Unavailable
32
WASHER, PLATE
90201-10038-00
Unavailable
33
BOLT, FLANGE
95812-10080-00
Unavailable
34
WASHER, CLAW
90214-10004-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
Unavailable
36
BRACKET 7
8ES-47419-10-00
Unavailable
37
HOOK 1
8ET-47446-00-00
Unavailable
38
CIRCLIP(6U2)
93410-35M10-00
Unavailable
39
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
40
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
41
WASHER, PLATE
90201-10038-00
Unavailable
42
BOLT, FLANGE
95812-10080-00
Unavailable
43
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
44
BEARING(8AB)
93306-00444-00
Unavailable
45
CIRCLIP(5U8)
99009-42500-00
Unavailable
46
COLLAR
8GP-47319-00-00
Unavailable
47
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
48
WASHER, PLATE
90201-10052-00
Unavailable
49
BRACKET 7
8GP-47419-00-00
Unavailable
50
BOLT, FLANGE
95817-10030-00
Unavailable
51
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
52
COLLAR 1
83R-47469-10-00
Unavailable
53
SUSPENSION WHEEL ASSY
8HP-47310-10-00
Unavailable
54
COLLAR
90387-20022-00
Unavailable
55
WASHER, PLATE
90201-20022-00
Unavailable
56
NUT, U FLANGE
95602-14200-00
Unavailable
57
REAR AXLE COMP.
8JN-47520-00-00
Unavailable
58
COLLAR
90387-20023-00
Unavailable
59
COLLAR
90387-20022-00
Unavailable
60
WASHER, PLATE
90201-20022-00
Unavailable
61
GUIDE WHEEL ASSY
8KA-47550-00-00
Unavailable
62
NUT, U FLANGE
95602-14200-00
Unavailable
63
COLLAR 3
8DM-47479-00-00
Unavailable
64
WASHER, PLATE
92990-10600-00
Unavailable
65
NUT, NYLON
95707-10300-00
Unavailable
