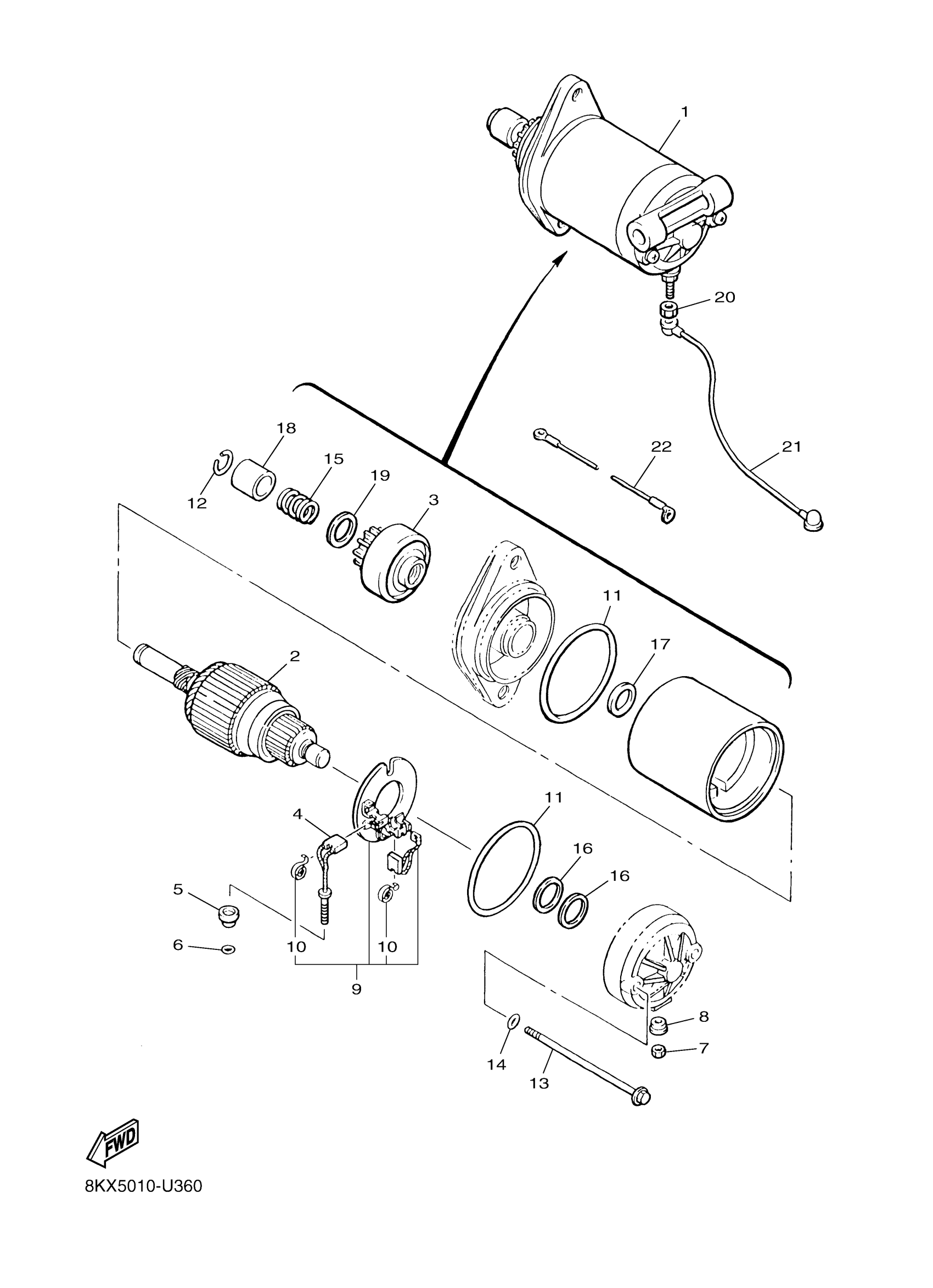

Yamaha VK5NFLW (VK540) 8KX82 2020 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

2

. ARMATURE ASSY

8Y3-81850-51-00

Unavailable

3

CLUTCH, OVER RUN

84N-81832-51-00

Unavailable

4

BRUSH 1

73A-81811-01-00

Unavailable

5

. GROMMET

73A-81829-50-00

Unavailable

6

. O-RING

73A-81847-00-00

Unavailable

7

NUT

4H7-81872-00-00

Unavailable

8

. GROMMET

73A-81829-00-00

Unavailable

9

BRUSH HOLDER ASSY

8L6-81840-51-00

$82.99

10

SPRING, BRUSH

8L6-81813-50-00

Unavailable

11

O-RING

4H7-81844-00-00

Unavailable

12

RING

8L6-81834-50-00

$2.60

13

BOLT

84N-81826-00-00

$15.49

14

O-RING

8L6-81847-50-00

$3.28

15

SPRING, LEVER

8BB-81836-00-00

Unavailable

16

WASHER 1

4H7-81843-50-00

Unavailable

17

WASHER

8L6-81835-50-00

Unavailable

18

RING, STOP

8L6-81833-50-00

Unavailable

19

WASHER, PLATE

8BB-8185A-00-00

Unavailable

20

NUT(6TA)

95317-06600-00

Unavailable

21

WIRE, LEAD

83R-82117-02-00

Unavailable

22

WIRE, MINUS LEAD

8KX-82116-00-00

Unavailable
