Description

Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-03-00

$613.99

2

SECONDARY SLIDING SHEAVE

8KA-17670-00-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SCREW

90149-06021-00

$8.49

5

BUSH, BIMETAL FORMED

90384-90002-00

$28.99

6

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

7

WASHER, CLAW(88R)

90214-29060-00

$7.49

8

CIRCLIP(86F)

93440-34170-00

$8.49

9

SEAT, SECONDARY SPRING

8AT-17684-01-00

Unavailable

10

SPRING, TORSION

90508-55012-00

$46.99

11

SECONDARY SHAFT COMP.

88N-17680-02-00

$303.99

12

HOUSING, BEARING

88N-47631-00-00

$117.99

13

BEARING(83R)

93306-20582-00

$58.99

14

CIRCLIP(26H)

99009-52500-00

$12.49

15

BOLT, HEXAGON

97017-08020-00

$9.49

16

WASHER(6TA)

92907-08600-00

Unavailable

17

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

17

WASHER, PLATE (888)

90201-25526-00

Unavailable

17

WASHER, PLATE (888)

90201-25527-00

Unavailable

18

WASHER, PLATE(J38)

90201-257J2-00

Unavailable

19

CIRCLIP (256)

93410-25017-00

Unavailable

20

WASHER, PLATE

90201-10038-00

Unavailable

21

BOLT, FLANGE

95817-10020-00

Unavailable

22

CLAMP (706)

90465-06100-00

Unavailable

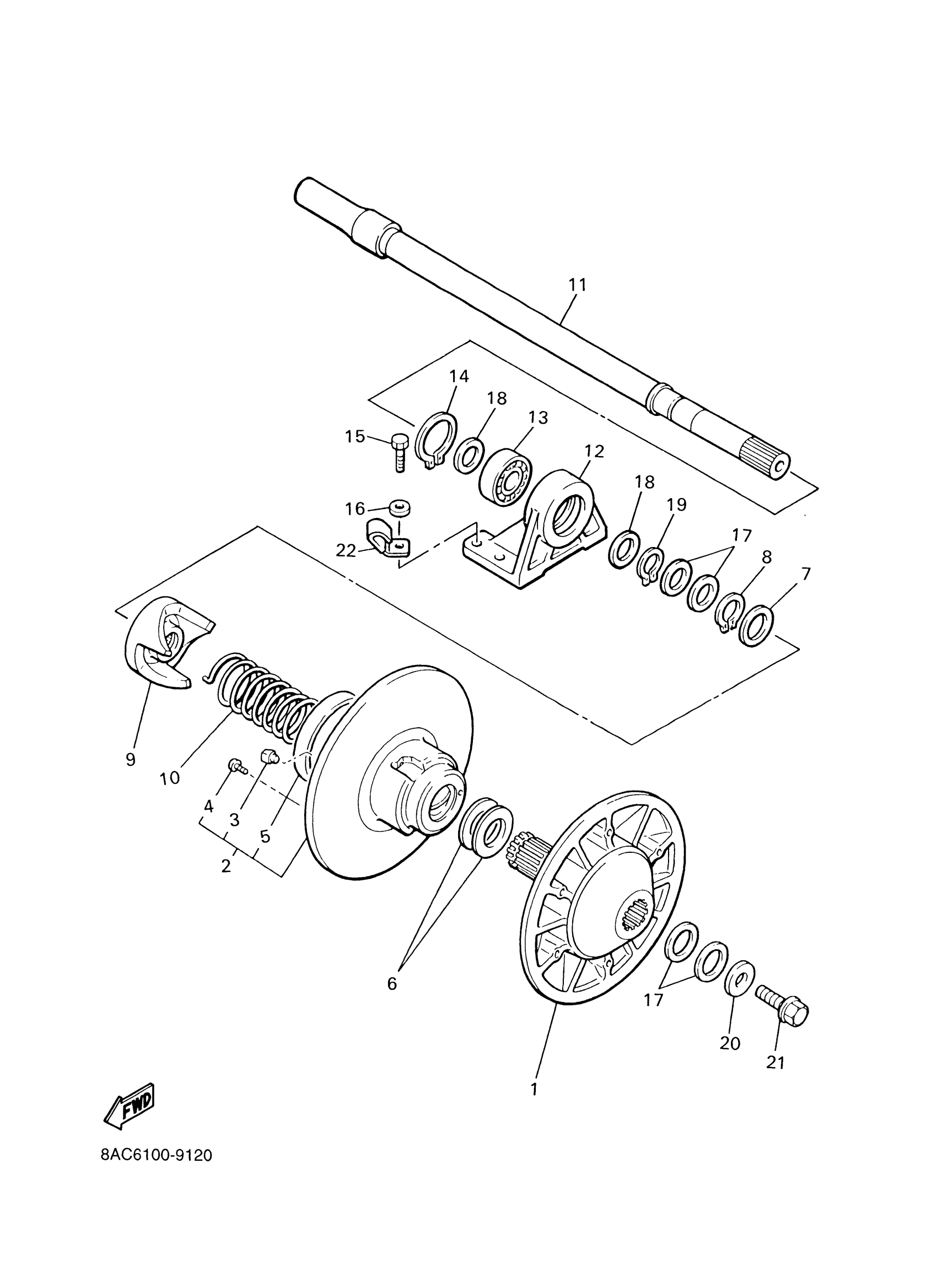

Yamaha VK5NFLW (VK540) 8KX82 2020 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SECONDARY SLIDING SHEAVE

SHOE RAMP

SCREW

BUSH, BIMETAL FORMED

WASHER, PLATE (8U9)

WASHER, CLAW(88R)

CIRCLIP(86F)

SEAT, SECONDARY SPRING

SPRING, TORSION

SECONDARY SHAFT COMP.

HOUSING, BEARING

BEARING(83R)

CIRCLIP(26H)

BOLT, HEXAGON

WASHER(6TA)

WASHER, PLATE (8R6)

WASHER, PLATE (888)

WASHER, PLATE (888)

WASHER, PLATE(J38)

CIRCLIP (256)

WASHER, PLATE

BOLT, FLANGE

CLAMP (706)
