ELECTRICAL 1

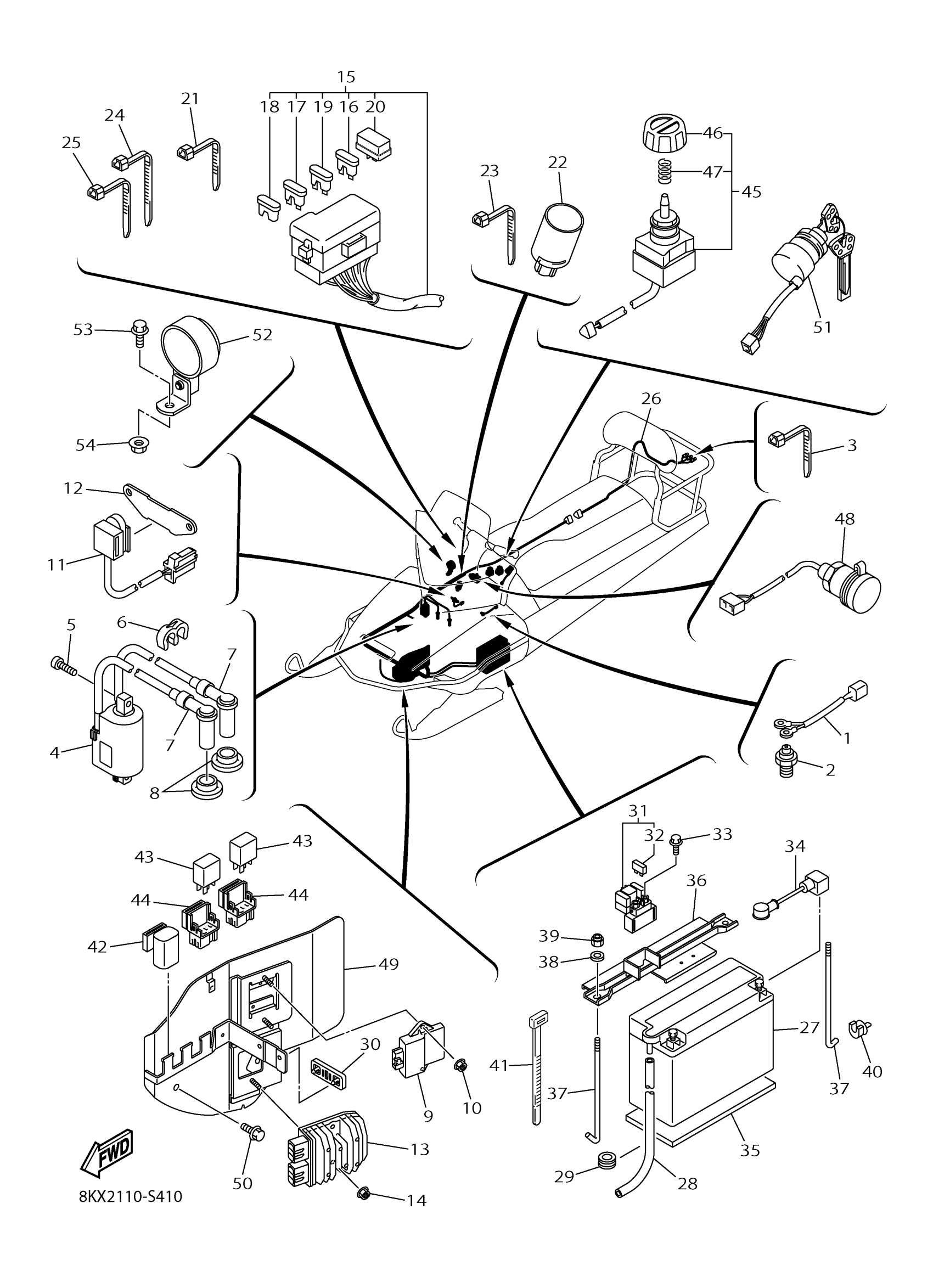

Yamaha VK5NFLW (VK540) 8KX82 2020 ELECTRICAL 1 Diagram
#
1
WIRE, SUB-LEAD
87L-82318-01-00
$16.49
2
NEUTRAL SWITCH ASSY
4KD-82540-00-00
$58.99
3
CLAMP
90464-13077-00
$8.49
4
IGNITION COIL ASSY
8KX-82310-01-00
$65.99
5
BOLT,SOCKET
91317-06025-00
$5.60
6
CLAMP(56R)
90464-60067-00
$7.49
7
PLUG CAP ASSY
85G-82370-20-00
$34.99
8
SEAL
8G5-82372-00-00
$5.60
9
C.D.I. UNIT ASSY
8KX-85540-00-00
Unavailable
10
NUT, FLANGE
95702-06500-00
$2.39
11
THERMO SWITCH ASSY
5FU-82560-50-00
$61.99
12
BRACKET, SWITCH
8JD-83773-00-00
$41.99
13
RECTIFIER & REGULATOR ASSY
27D-81960-00-00
Unavailable
14
NUT, FLANGE
95702-06500-00
$2.39
15
WIRE HARNESS ASSY
8KX-82590-10-00
Unavailable
16
. FUSE (3A)
67F-82151-30-00
Unavailable
17
FUSE (7.5A-BL)
5JJ-82151-00-00
Unavailable
18
FUSE (15A)
67F-82151-50-00
Unavailable
19
FUSE
5JJ-82151-20-00
Unavailable
20
DIODE ASSY
4WA-81980-00-00
Unavailable
21
CLAMP
90464-13077-00
$8.49
22
COVER
8GL-8252U-00-00
Unavailable
23
CLAMP(4FM)
90464-15195-00
Unavailable
24
CLAMP(4FM)
90464-15195-00
Unavailable
25
CLAMP(4FM)
90464-15195-00
Unavailable
26
CORD, TAILLIGHT
8KX-84717-00-00
Unavailable
27
YB16ALA2 YUASA BATTERY
YB1-6ALA2-00-00
Unavailable
28
PIPE
8AC-8235W-00-00
Unavailable
29
GROMMET(3AA)
90480-12497-00
Unavailable
30
BRACKET
8FA-83614-00-00
Unavailable
31
STARTER RELAY ASSY (RC19-076A)
3D7-81940-00-00
Unavailable
32
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
33
BOLT, FLANGE
95022-06008-00
Unavailable
34
WIRE, PLUS LEAD
8KX-82115-00-00
Unavailable
35
SEAT, BATTERY
84N-82122-00-00
Unavailable
36
PLATE, BATTERY FITTING
8KX-82136-00-00
Unavailable
37
SCREW, FITTING
8Y7-82133-00-00
Unavailable
38
WASHER, PLAIN (646)
92990-06600-00
Unavailable
39
NUT, NYLON
95707-06300-00
Unavailable
40
GROMMET
8AC-82355-00-00
Unavailable
41
BAND, SWITCH CORD
437-83936-01-00
Unavailable
42
RELAY ASSY
5DM-81950-01-00
Unavailable
43
RELAY ASSY (8HG-10
8HG-81951-10-00
Unavailable
44
HOLDER, RELAY
8HG-81952-00-00
Unavailable
45
SWITCH, SELECT
1XD-87280-01-00
Unavailable
46
KNOB, SELECT SWITCH
1XD-87285-00-00
Unavailable
47
SPRING
1XD-87288-00-00
Unavailable
48
TERMINAL COMP.
8FP-8254B-00-00
Unavailable
49
BRACKET, UNIT
8KX-85991-01-00
Unavailable
50
BOLT, FLANGE
95817-08012-00
Unavailable
51
MAIN SWITCH ASSY
8HV-82510-00-00
Unavailable
52
BUZZER
8KX-83383-00-00
Unavailable
53
BOLT, FLANGE
95817-06016-00
Unavailable
54
NUT, U FLANGE
95604-06200-00
Unavailable
