- VK5NFLW (VK540) 8KX82 2020
CARBURETOR

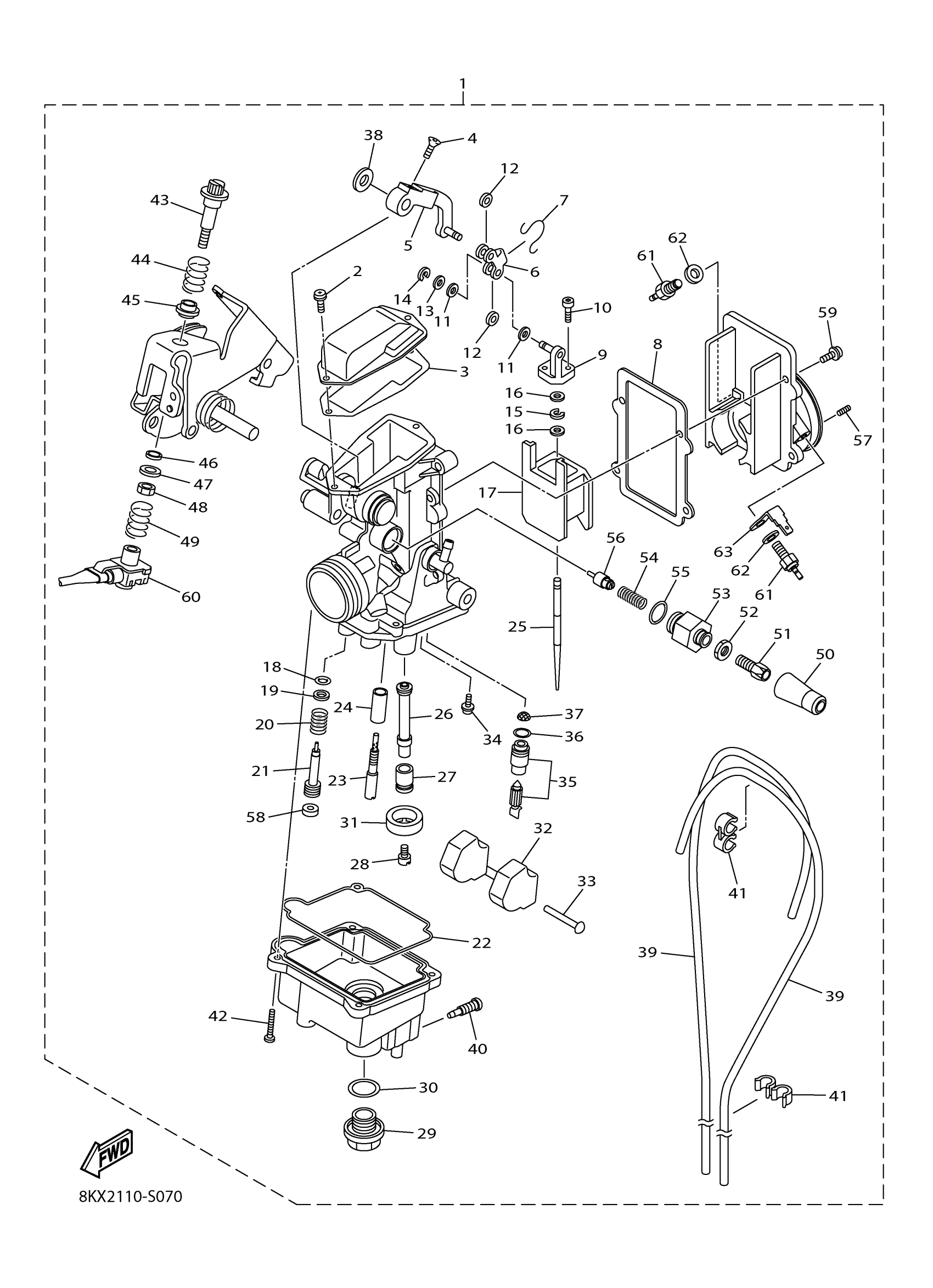

Yamaha VK5NFLW (VK540) 8KX82 2020 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
8KX-14101-10-00
Unavailable
2
SCREW, PAN HEAD(6G8)
98507-04010-00
$3.50
3
GASKET
89A-14198-00-00
$9.99
4
. SCREW, FLAT HEAD (98702-04014-00 )
6K8-14523-10-00
Unavailable
5
BRACKET 2
89A-14292-00-00
Unavailable
6
PLATE
89A-14243-00-00
Unavailable
7
CLIP
89A-14137-00-00
$3.33
8
GASKET
89A-14199-00-00
$31.99
9
CONNECTOR
89A-14188-00-00
$34.99
10
BOLT,SOCKET
91317-03012-00
$0.90
11
GASKET
3GF-14126-00-00
$0.47
12
RING
3MA-14918-00-00
Unavailable
13
GASKET
620-14198-00-00
$2.65
14
CLIP
3MA-14937-00-00
Unavailable
15
CLIP
3FA-14137-00-00
$7.99
16
WASHER
8AB-14227-00-00
Unavailable
17
VALVE, THROTTLE 1
8KX-14112-35-00
Unavailable
18
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
19
WASHER, PILOT SCREW
3H1-14962-00-00
Unavailable
20
SPRING
5K7-14134-00-00
Unavailable
21
SCREW, AIR ADJUSTING
8KX-14123-00-00
Unavailable
22
O-RING
89A-14147-00-00
Unavailable
23
. JET, PILOT (# 65)
4KM-14142-65-00
Unavailable
23
JET, PILOT (# 70)
4KM-14142-70-00
Unavailable
24
PIPE
89A-14996-00-00
Unavailable
25
NEEDLE
284-14116-A6-00
Unavailable
26
NOZZLE, MAIN
8KX-14141-42-00
Unavailable
27
RING
89A-14194-00-00
Unavailable
28
JET, MAIN (#155)
3G2-14231-31-00
Unavailable
28
JET,MAIN #152.5
3G2-1423A-81-00
Unavailable
28
JET, MAIN (#151.3)
3G2-1423E-60-00
Unavailable
28
JET, MAIN (#153.8)
3G2-1423E-61-00
Unavailable
29
PLUG, SCREW
500-14115-00-00
Unavailable
30
O-RING (541)
558-14147-00-00
Unavailable
31
WASHER, MAIN JET
1LX-14153-00-00
Unavailable
32
FLOAT
1UY-14185-00-00
Unavailable
33
PIN, FLOAT
537-14186-00-00
Unavailable
34
SCREW
2LN-14565-00-00
Unavailable
35
NEEDLE VALVE ASSY
1AE-14190-12-00
Unavailable
36
O-RING
8F2-14147-00-00
Unavailable
37
NET, FILTER
1J7-14994-00-00
Unavailable
38
. WASHER
3H1-14227-00-00
Unavailable
39
PIPE
8KX-14197-00-00
Unavailable
40
PLUG, DRAIN
5LW-14191-00-00
Unavailable
41
CLIP
87M-14137-00-00
Unavailable
42
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
43
SCREW, THROTTLE
8CC-14122-00-00
Unavailable
44
SPRING
8X0-14500-00-00
Unavailable
45
RING
8X0-14184-00-00
Unavailable
46
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
47
. WASHER
1UF-14952-00-00
Unavailable
48
NUT
89A-14594-00-00
Unavailable
49
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
50
CAP
8A7-14169-00-00
Unavailable
51
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
52
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
53
CAP, PLUNGER
8KX-14174-00-00
Unavailable
54
SPRING, PLUNGER
127-14135-00-00
Unavailable
55
O-RING
1AE-14147-00-00
Unavailable
56
PLUNGER, STARTER
8G8-14171-00-00
Unavailable
57
JET, AIR (#1.0)
239-14172-10-00
Unavailable
58
CAP
3F9-14118-00-00
Unavailable
59
SCREW, PAN HEAD
98517-04012-00
Unavailable
60
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
61
HEATER ASSY
5FU-83790-20-00
Unavailable
62
WASHER
5CY-14951-00-00
Unavailable
63
TERMINAL 1
5FU-82103-00-00
Unavailable
