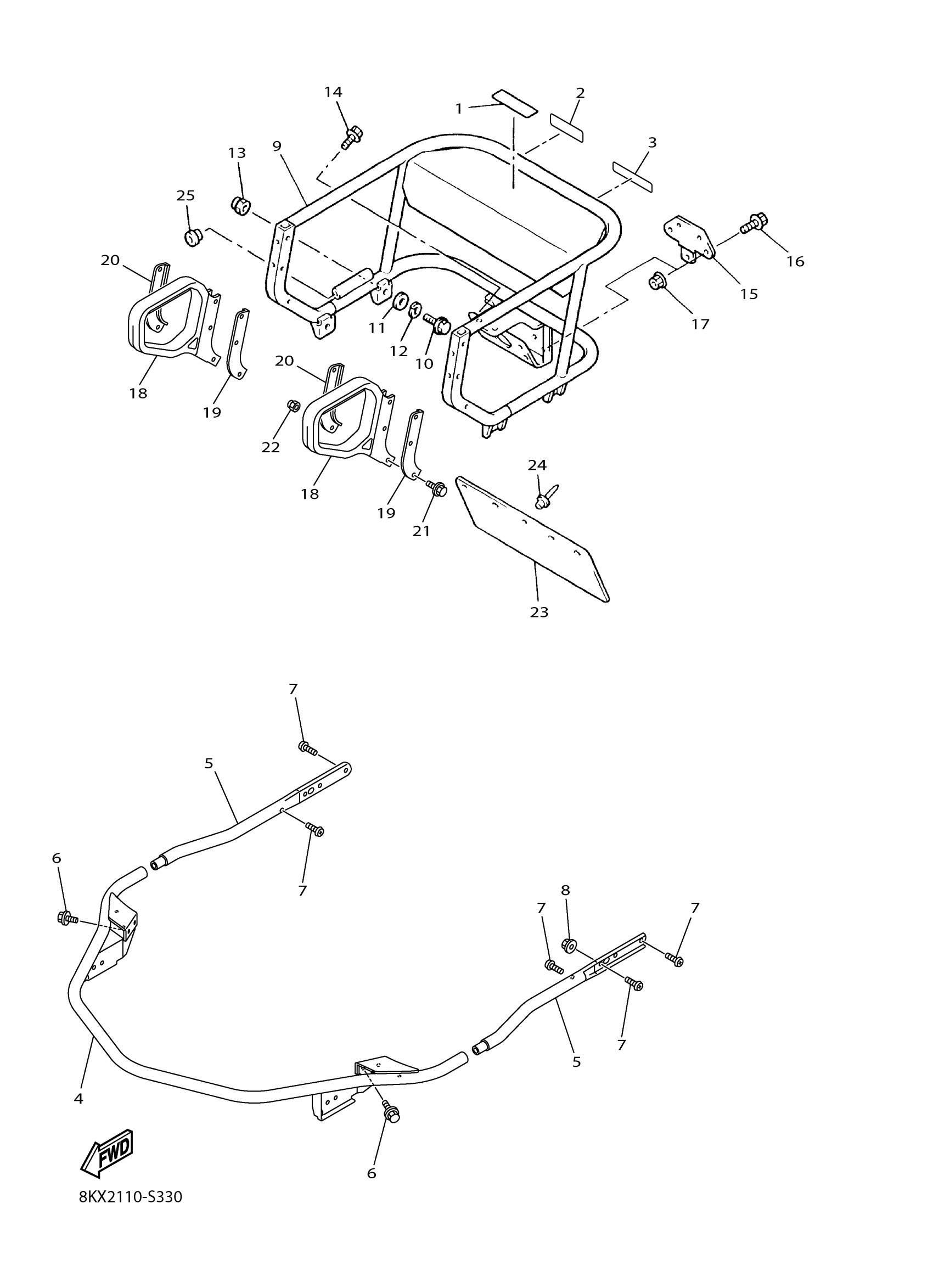

Yamaha VK5NFLW (VK540) 8KX82 2020 BUMPER Diagram
#
Description
Price
1
EMBLEM
8FM-24897-01-00
Unavailable
2
LABEL, WARNING 5
8JT-77765-E0-00
$5.60
3
LABEL, PULLING LOAD LIMIT
8GS-2817S-E0-00
$4.14
4
BUMPER, FRONT 1
8KX-77511-00-00
Unavailable
5
BUMPER, FRONT 3
8JN-77513-00-00
$111.99
6
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
7
BOLT, BUTTON
92017-08020-00
$7.49
8
NUT,FLANGE(J10)
95702-08500-00
$1.43
9
REAR BUMPER COMP.
8KX-77540-10-00
Unavailable
10
BOLT, FLANGE
95822-08014-00
$8.49
11
WASHER(6TC)
92907-08200-00
$8.49
12
WASHER(JN5)
92907-08100-00
$8.49
13
NUT, CAP
95307-08800-00
$7.49
14
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
15
BRACKET, HITCH 2
84R-77592-00-00
$34.99
16
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
17
NUT, SELF-LOCKING
95602-08200-00
Unavailable
18
GRIP, ASSIST 1
8JD-77571-00-00
Unavailable
19
BRACKET, FRONT
8JD-77531-00-00
Unavailable
20
BRACKET, FRONT (R.H)
8JD-77532-00-00
Unavailable
21
BOLT, FLANGE(JN5)
95817-08045-00
Unavailable
22
NUT, CROWN(82U)
90176-08063-00
Unavailable
23
FLAP
83R-77595-00-00
Unavailable
24
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
25
GROMMET (8L1)
90480-15268-00
Unavailable
