Description

Price

1

TANK, OIL

83R-21751-00-00

Unavailable

2

CLAMP(8AT)

90462-10209-00

Unavailable

3

SCREW, BIND(1JK)

98980-06010-00

$9.49

4

BODY, CAP

8LU-21771-00-00

$31.99

5

GASKET, TANK (867)

90430-31003-00

$10.49

6

PIPE, JOINT

801-24376-00-00

Unavailable

7

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

8

CLIP (7K7)

90467-11044-00

$8.49

9

CLIP (8A1)

90467-09026-00

$3.28

10

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

11

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

12

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

13

TUBE,FLEXIBLE VINYL(8AU)

91A30-07016-00

$1.49

14

PROTECTOR, PIPE

84M-24327-00-00

Unavailable

15

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

16

NUT, SELF-LOCKING

95617-06100-00

Unavailable

17

COLLAR(50M)

90387-087L0-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

Unavailable

19

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

20

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

21

CLIP (8L2)

90467-08017-00

Unavailable

22

DAMPER

8AT-21747-00-00

Unavailable

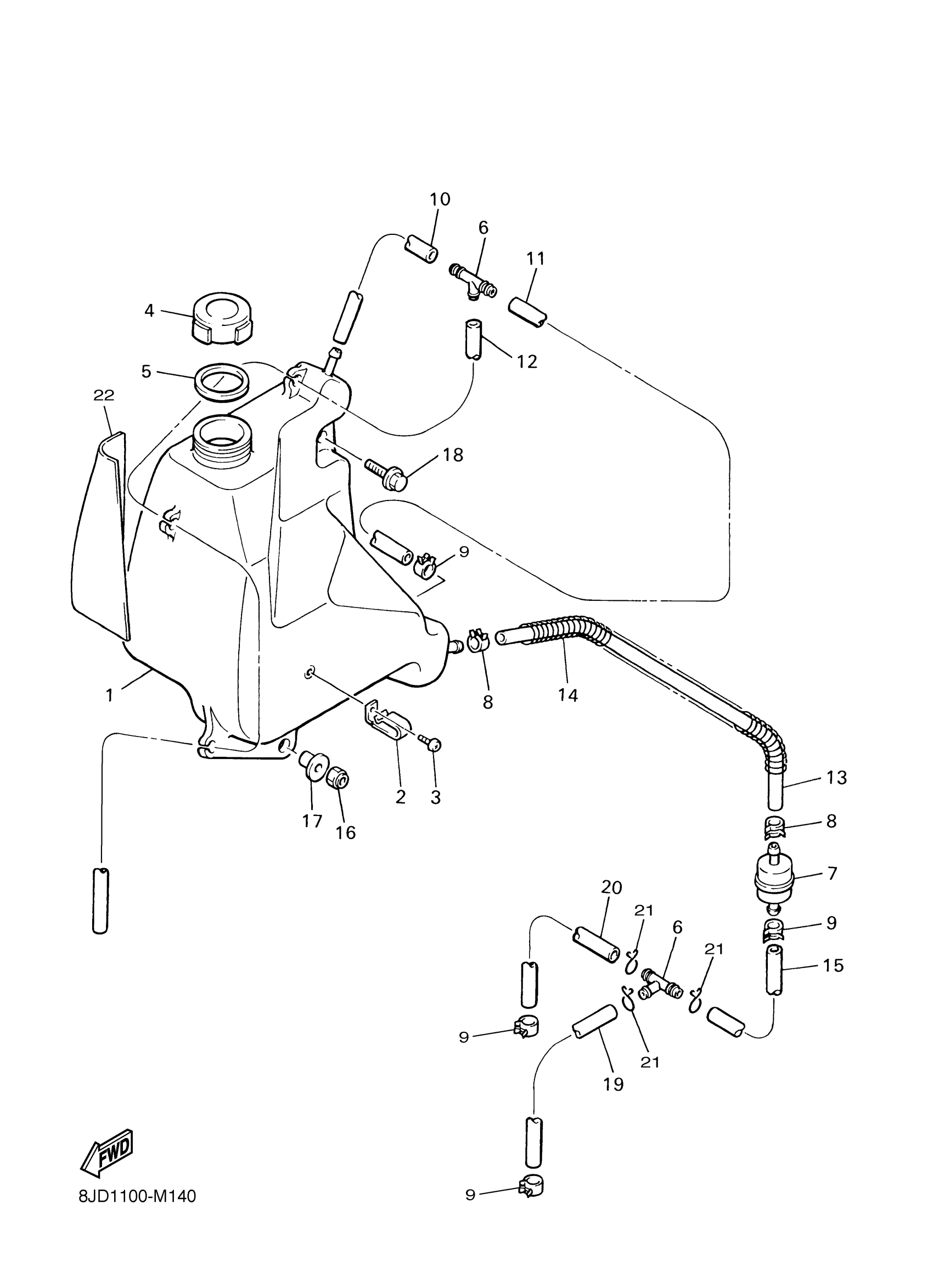

Yamaha VK5NFKW (VK540) 8KX61 2019 OIL TANK Diagram

TANK, OIL

CLAMP(8AT)

SCREW, BIND(1JK)

BODY, CAP

GASKET, TANK (867)

PIPE, JOINT

HOUSING STRAINER ASSY

CLIP (7K7)

CLIP (8A1)

TUBE, FLEXIBLE VINYL(8AK)

TUBE, FLEXIBLE VINYL(8AT)

TUBE, FLEXIBLE VINYL(8AT)

TUBE,FLEXIBLE VINYL(8AU)

PROTECTOR, PIPE

TUBE, FLEXIBLE VINYL(8AK)

NUT, SELF-LOCKING

COLLAR(50M)

BOLT, FLANGE

TUBE,FLEXIBLE VINYL(85R)

TUBE,FLEXIBLE VINYL(85R)

CLIP (8L2)

DAMPER
