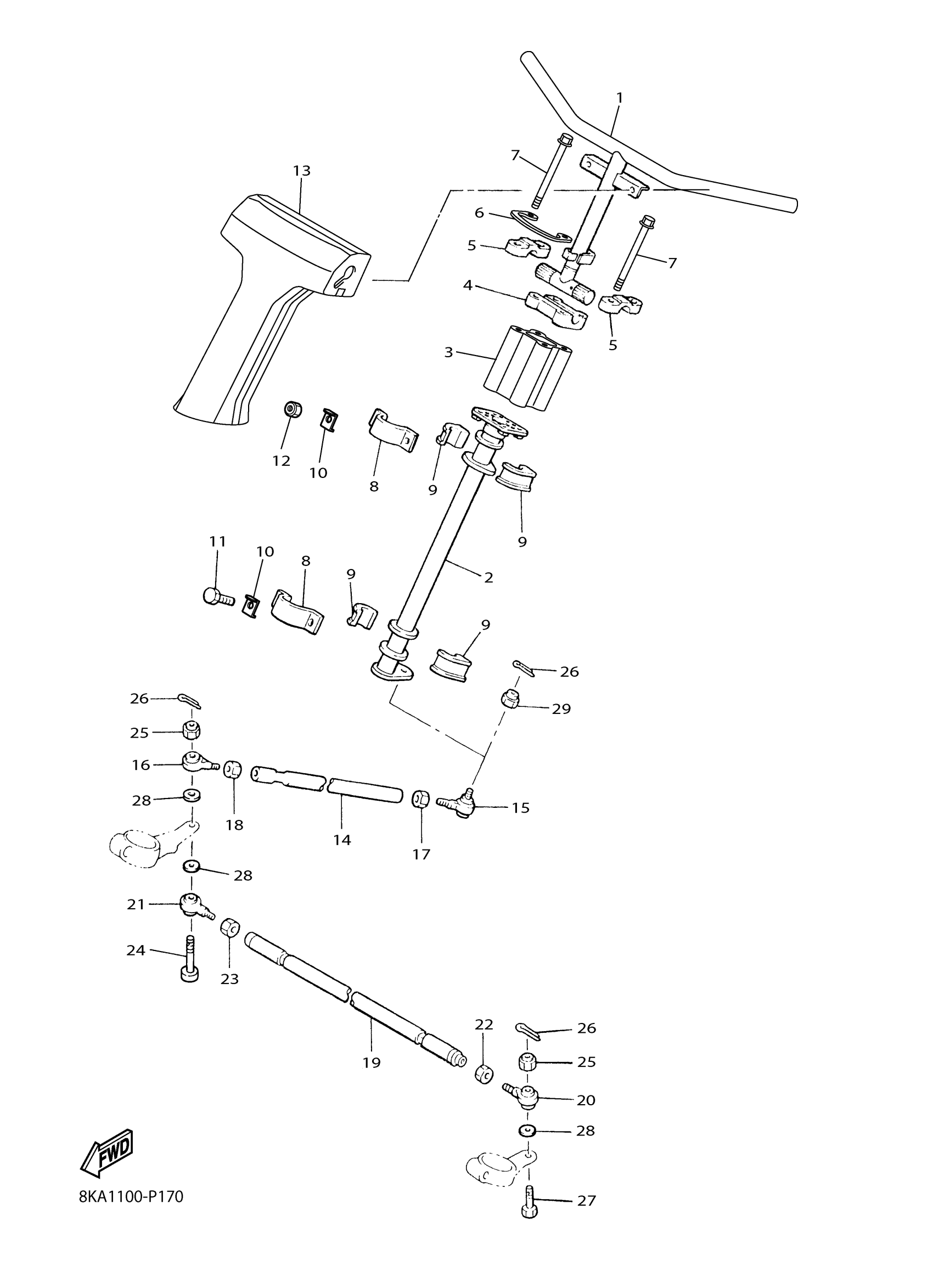

Yamaha VK5NFJW (VK540) 8KX400 2018 STEERING Diagram
#
1
COLUMN, STEERING
8AU-23811-11-00
Unavailable
2
COLUMN, STEERING 2
8KA-23813-00-00
Unavailable
3
JOINT
8KA-2381B-00-00
Unavailable
4
HOLDER, HANDLE UPPER
8G5-23814-01-00
Unavailable
5
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
6
HOLDER
8JN-23857-00-00
Unavailable
7
BOLT, WASHER BASED(10U)
90105-08364-00
Unavailable
8
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
9
BEARING, STEERING
8F3-23812-00-00
Unavailable
10
WASHER, LOCK 1
8AC-23894-01-00
$4.78
11
BOLT
90101-08005-00
Unavailable
12
NUT, SELF-LOCKING (3Y2)
90185-08089-00
$9.49
13
PAD, STEERING
8KA-23815-00-00
Unavailable
14
ROD, STEERING RELAY
8AT-23821-00-00
$41.99
15
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
16
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
17
NUT (3WP1)
95317-10700-00
Unavailable
18
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
19
ROD, TIE
8AT-23831-00-00
Unavailable
20
JOINT, UNIVERSAL 2
87S-23845-01-00
Unavailable
21
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
22
NUT (3WP1)
95317-10700-00
Unavailable
23
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD(85L)
90110-10173-00
Unavailable
25
NUT, NYLON
95707-10300-00
Unavailable
26
PIN, COTTER
91490-25020-00
Unavailable
27
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
28
WASHER PLATE (3L6)
90201-08759-00
Unavailable
29
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
