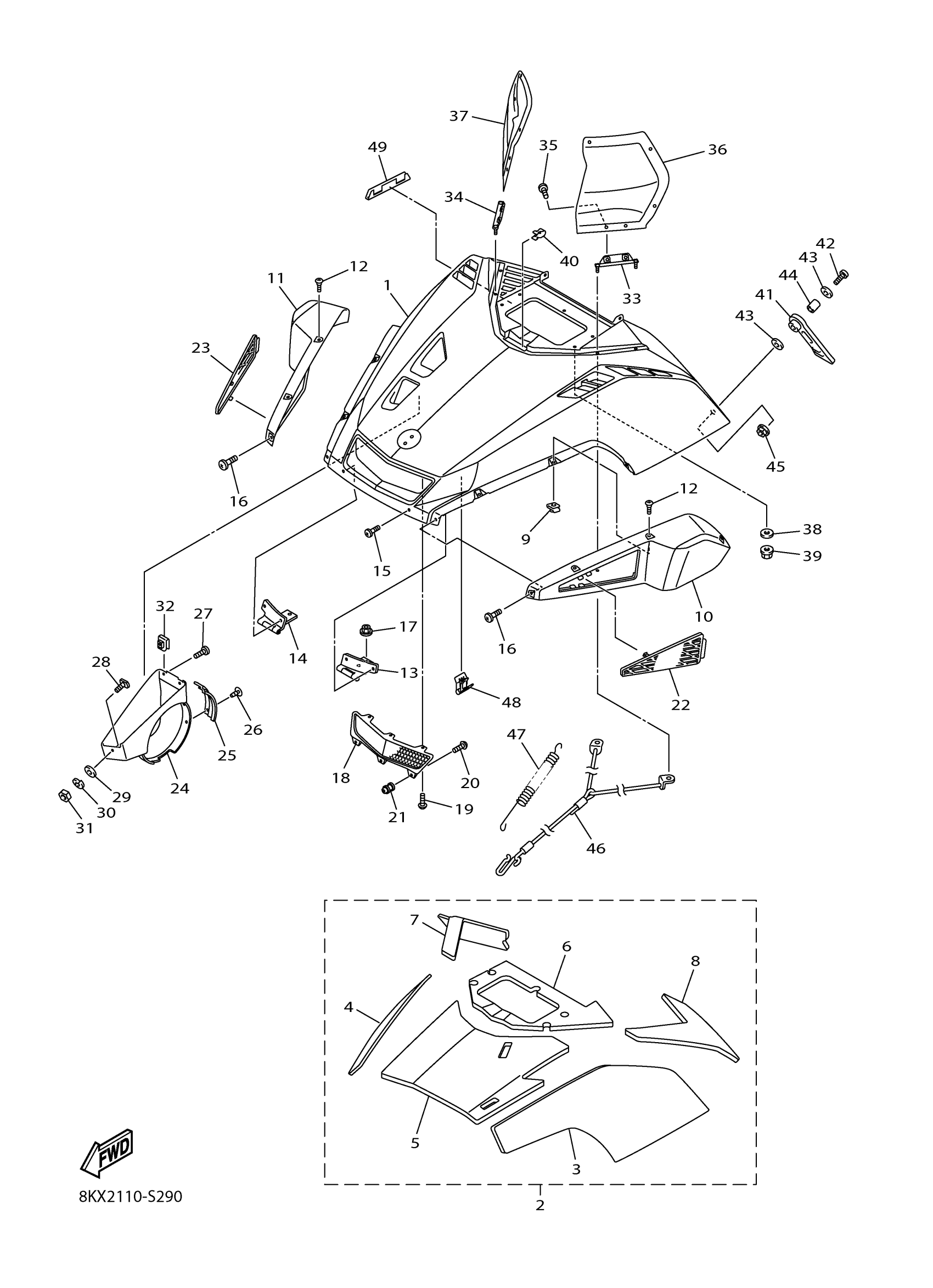

Yamaha VK5NFJW (VK540) 8KX400 2018 SHROUD Diagram
#
1
SHROUD (BLACK METALLIC X)
8KX-77111-00-P0
Unavailable
2
LINING SET
8KX-W7726-00-00
Unavailable
3
LINING, SHROUD 1
8KX-77261-00-00
Unavailable
4
LINING,SHROUD 8
8KX-77268-00-00
Unavailable
5
LINING, SHROUD 4
8KX-77264-00-00
Unavailable
6
LINING, SHROUD 5
8KX-77265-00-00
Unavailable
7
LINING, SHROUD 6
8KX-77266-00-00
Unavailable
8
LINING, SHROUD 7
8KX-77267-00-00
Unavailable
9
NUT, SPRING
90183-06100-00
$10.49
10
COVER, SIDE 1
8KX-21711-00-00
Unavailable
11
COVER, SIDE 2
8KX-21721-00-00
Unavailable
12
SCREW, BINDING
90154-06013-00
$3.76
13
HINGE ASSY
8KX-77140-00-00
Unavailable
14
HINGE ASSY 2
8KX-7714A-00-00
Unavailable
15
SCREW, BINDING
98907-06014-00
$7.99
16
SCREW, BINDING
90154-06013-00
$3.76
17
NUT, NYLON
95707-06300-00
Unavailable
18
GRILLE, FRONT
8KX-78217-00-00
Unavailable
19
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
20
SCREW, ROUND HEAD(1UX)
90150-05024-00
Unavailable
21
NUT (8J2)
90179-05271-00
Unavailable
22
LOUVER 1
8KX-77441-00-00
Unavailable
23
LOUVER 2
8KX-77442-00-00
Unavailable
24
DUCT
8KX-77194-00-00
Unavailable
25
BUSH, RUBBER 1
8KX-77515-00-00
Unavailable
26
RIVET(81E)
90269-05055-00
Unavailable
27
SCREW, BIND(J39)
98980-06014-00
Unavailable
28
PLATE 2
83R-77186-00-00
Unavailable
29
WASHER, PLATE
90201-06078-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
NUT, HEXAGON
95380-06600-00
Unavailable
32
NUT
83R-77144-00-00
Unavailable
33
STAY 1
8KX-77125-00-00
Unavailable
34
STAY 2
8KX-77126-00-00
Unavailable
35
BOLT,HEX. SOCKET BUTTON
90111-06083-00
Unavailable
36
FAIRING 2
8KX-7723A-00-00
Unavailable
37
FAIRING 3
8KX-7723B-00-00
Unavailable
38
WASHER, PLATE
90201-06078-00
Unavailable
39
NUT, NYLON
95707-06300-00
Unavailable
40
CLAMP 1
8KW-77135-00-00
Unavailable
41
BODY, LATCH 1
8JN-77171-00-00
Unavailable
42
SCREW, BINDING
98907-06025-00
Unavailable
43
WASHER, PLATE
90201-06557-00
Unavailable
44
COLLAR (420)
90387-06241-00
Unavailable
45
NUT, FLANGE
95702-06500-00
Unavailable
46
STOPPER, SHROUD
83R-77118-01-00
Unavailable
47
CLAMP,ROD
838-77159-00-00
Unavailable
48
CLAMP 1
8FA-77135-00-00
Unavailable
49
DAMPER, SHROUD
8JN-77196-00-00
Unavailable
