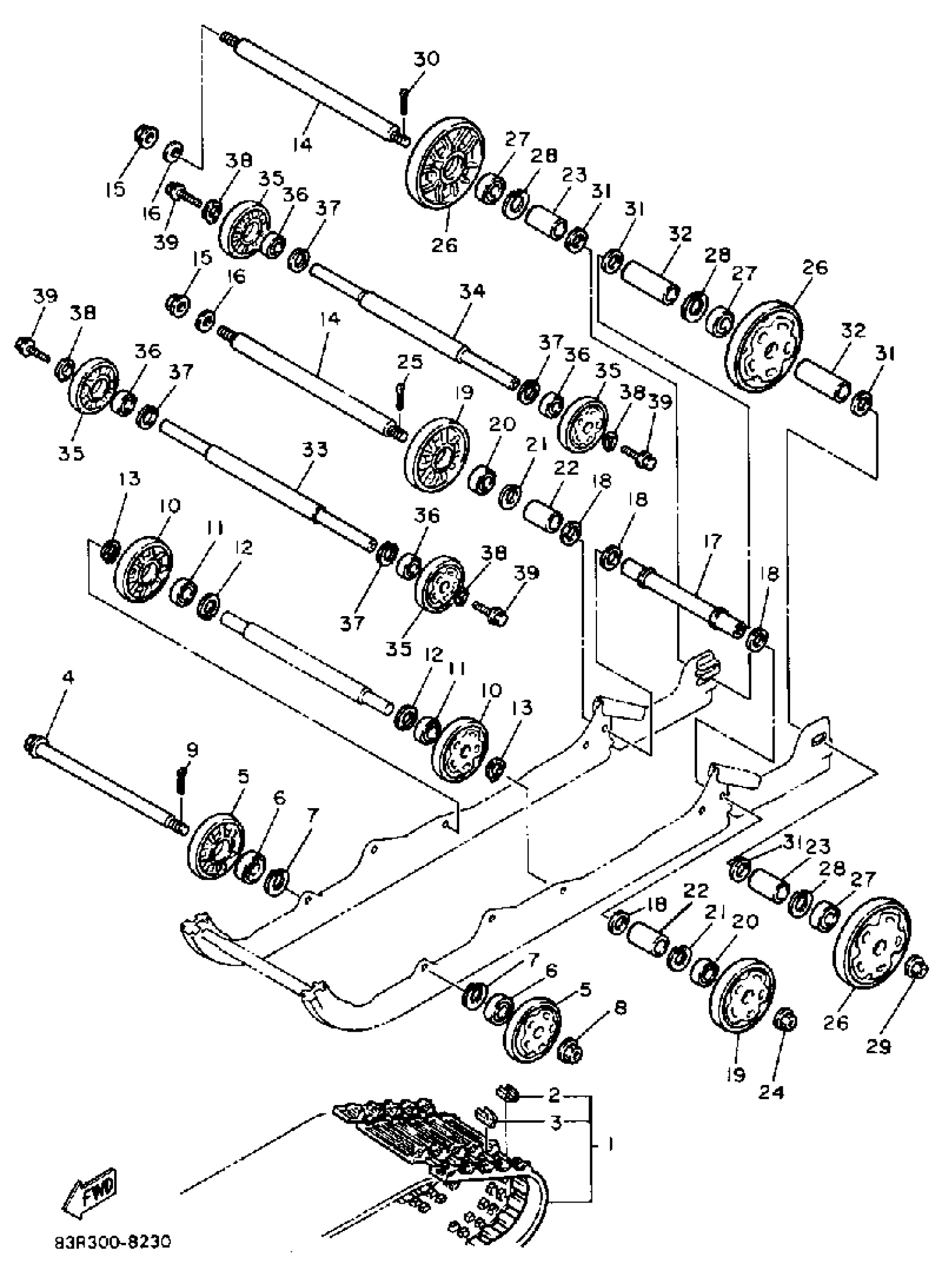

Yamaha VK540M (VK540) 1988 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8AC-47110-11-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

8A5-47115-00-00

Unavailable

4

SHAFT 5

83R-47487-00-00

Unavailable

5

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

6

BEARING(8AB)

93306-00444-00

$41.99

7

CIRCLIP(5U8)

99009-42500-00

$8.49

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

9

PIN, COTTER

91490-30030-00

$8.49

10

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

11

BEARING(8AB)

93306-00444-00

$41.99

12

CIRCLIP(5U8)

99009-42500-00

$8.49

13

CIRCLIP(1AR)

99009-20400-00

$8.49

14

REAR AXLE COMP.

8JN-47520-00-00

$125.99

15

NUT(6TC)

95337-14600-00

$11.49

16

WASHER, PLATE

90201-144L3-00

Unavailable

17

COLLAR 1

83R-47469-00-00

Unavailable

18

WASHER, PLATE (888)

90201-20279-00

Unavailable

19

SUSPENSION WHEEL COMP.

8U7-47320-00-00

Unavailable

20

BEARING(8AB)

93306-00444-00

$41.99

21

CIRCLIP(5U8)

99009-42500-00

$8.49

22

COLLAR

90387-20022-00

Unavailable

23

COLLAR(83R)

90387-200U9-00

Unavailable

24

NUT, SELF-LOCKING(83R)

90185-14142-00

Unavailable

25

PIN, COTTER

91490-30030-00

$8.49

26

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

27

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

28

CIRCLIP(48Y)

99009-47500-00

Unavailable

29

NUT, SELF-LOCKING(83R)

90185-14142-00

Unavailable

30

PIN, COTTER

91490-30030-00

$8.49

31

WASHER, PLATE (888)

90201-20279-00

Unavailable

32

COLLAR(83R)

90387-205T6-00

Unavailable

33

IDLER

83R-47461-00-00

Unavailable

34

SHAFT 6

99999-02678-00

Unavailable

35

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

36

BEARING(8AB)

93306-00444-00

$41.99

37

CIRCLIP(5U8)

99009-42500-00

$8.49

38

CIRCLIP(1AR)

99009-20400-00

$8.49

39

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable
