- VK540M (VK540) 1988
TRACK DRIVE 2

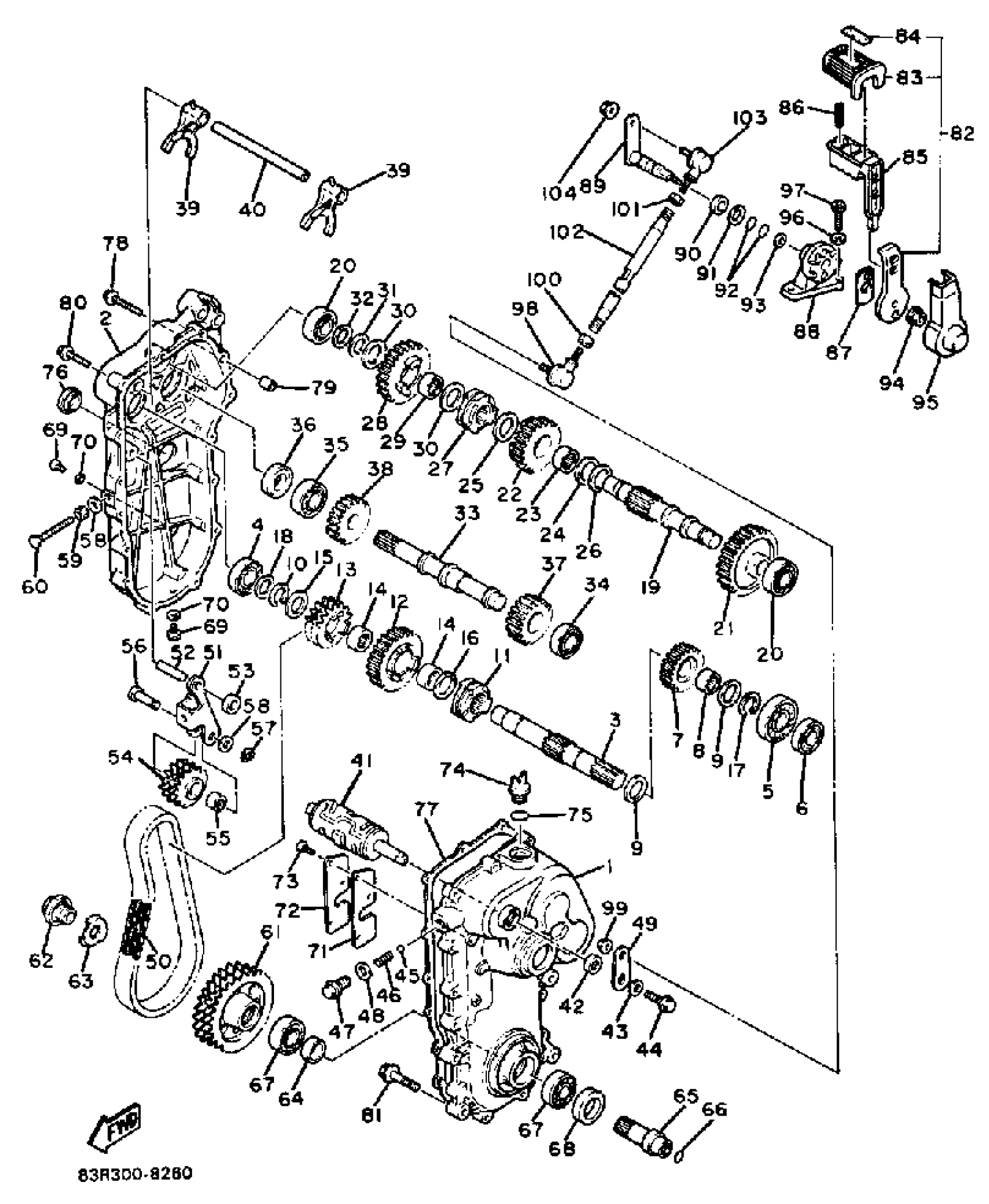

Yamaha VK540M (VK540) 1988 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
99999-02619-00
Unavailable
2
CAP, HOUSING
83R-47543-00-00
$437.99
3
AXLE, DRIVE
83R-17421-00-00
Unavailable
4
BEARING(1GJ)
93306-20458-00
$43.99
5
BEARING(1LX)
93306-37204-00
$47.99
6
OIL SEAL (22X42X7)
93102-22014-00
$12.49
7
GEAR, 2ND PINION
83R-17121-00-00
$55.99
8
BEARING, CYLINDRICAL(83R)
93311-42265-00
Unavailable
9
WASHER, PLATE(83R)
90201-224L4-00
$8.49
10
CIRCLIP(1EY)
99009-22400-00
$8.49
11
DOG, TRANS SHIFT
83R-17492-00-00
Unavailable
12
GEAR, 3RD PINION
83R-17131-00-00
Unavailable
13
SPROCKET, CHAIN DRIVE
83R-17682-00-00
Unavailable
14
BEARING, CYLINDRICAL (33A)
93317-32241-00
Unavailable
15
WASHER, PLATE(83R)
90201-224L4-00
$8.49
16
WASHER, PLATE(83R)
90201-225L2-00
Unavailable
17
CIRCLIP(1EY)
99009-22400-00
$8.49
18
WASHER, PLATE (3Y1)
90201-20792-00
Unavailable
19
AXLE, COUNTER
83R-17431-00-00
Unavailable
20
BEARING (7X9)
93306-20327-00
Unavailable
21
GEAR, 4TH PINION
83R-17141-00-00
Unavailable
22
GEAR, 5TH PINION
83R-17151-00-00
Unavailable
23
BEARING, CYLINDRICAL (33A)
93317-32241-00
Unavailable
24
WASHER, PLATE(83R)
90201-224L4-00
$8.49
25
WASHER, PLATE(83R)
90201-225L2-00
Unavailable
26
CIRCLIP(1EY)
99009-22400-00
$8.49
27
DOG, TRANS SHIFT
83R-17492-00-00
Unavailable
28
GEAR, REVERSE PINION 1
83R-17143-00-00
Unavailable
29
BEARING, CYLINDRICAL (4X7)
93317-22021-00
Unavailable
30
WASHER, PLATE (3Y1)
90201-20792-00
Unavailable
31
CIRCLIP(1AR)
99009-20400-00
Unavailable
32
WASHER, PLATE (2K7)
90201-17682-00
Unavailable
33
AXLE, IDLE
83R-17432-01-00
Unavailable
34
BEARING (7X9)
93306-20327-00
Unavailable
35
BEARING(1GJ)
93306-20458-00
$43.99
36
OIL SEAL(4BA)
93102-20447-00
Unavailable
37
GEAR, REVERSE WHEEL1
83R-17243-00-00
Unavailable
38
GEAR, REVERSE PINION 2
83R-17153-00-00
Unavailable
39
FORK, SHIFT 1
83R-18511-00-00
Unavailable
40
BAR, SHIFT FORK GUIDE 1
83R-18531-00-00
Unavailable
41
SHIFT CAM
87R-18541-00-00
Unavailable
42
OIL SEAL (3X3)
93102-15212-00
Unavailable
43
WASHER, PLATE(52G)
90201-064J1-00
Unavailable
44
BOLT
90109-06757-00
Unavailable
45
BALL
93503-08007-00
Unavailable
46
SPRING, COMPRESSION(59V)
90501-147A6-00
Unavailable
47
BOLT, WASHER BASED(59V)
90105-14367-00
Unavailable
48
GASKET(59V)
90430-14194-00
Unavailable
49
LEVER
83R-18198-00-00
Unavailable
50
CHAIN(83R)
94880-06070-00
Unavailable
51
HOLDER
83R-47613-00-00
Unavailable
52
PIN, DOWEL(83R)
93612-44229-00
Unavailable
53
COLLAR (4V4)
90387-121E8-00
Unavailable
54
WHEEL
83R-47612-00-00
Unavailable
55
BRG,CYL-CAL ROLLER 11G KY
93315-21227-00
Unavailable
56
PIN(86P)
90249-12216-00
Unavailable
57
CIRCLIP(10Y)
99009-12400-00
Unavailable
58
WASHER SEAL 256111730200
90210-10004-00
Unavailable
59
NUT (682)
95380-10700-00
Unavailable
60
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
61
SPROCKET, CHAIN DRIVEN
83R-47548-00-00
Unavailable
62
BOLT, WASHER BASED(83R)
90105-27484-00
Unavailable
63
WASHER, LOCK(83R)
90215-39268-00
Unavailable
64
COLLAR(83R)
90387-405T8-00
Unavailable
65
JOURNAL 1
83R-47571-00-00
Unavailable
66
O-RING(83R)
93210-28763-00
Unavailable
67
BEARING
93306-90802-00
Unavailable
68
OIL SEAL(83R)
93102-46394-00
Unavailable
69
SCREW, BIND(2TV)
98980-06008-00
Unavailable
70
GASKET 838153840000
90430-06016-00
Unavailable
71
GASKET
85R-47544-02-00
Unavailable
72
PLATE
83R-47591-00-00
Unavailable
73
SCREW, BINDING
98907-06008-00
Unavailable
74
PLUG, OIL
3Y1-15363-10-00
Unavailable
75
O-RING (646)
93210-19123-00
Unavailable
76
PLUG(83R)
90338-30219-00
Unavailable
77
GASKET
85R-47592-01-00
Unavailable
78
BOLT, FLANGE
95817-06045-00
Unavailable
79
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
80
BOLT, FLANGE
95817-06035-00
Unavailable
81
BOLT, FLANGE
95817-08040-00
Unavailable
82
SHIFT LEVER ASSY
83R-18150-00-00
Unavailable
83
COVER, SHIFT PEDAL
52G-18113-00-00
Unavailable
84
LABEL
83R-1815A-00-00
Unavailable
85
KNOB, SHIFT LEVER
59V-18174-00-00
Unavailable
86
SPRING, COMPRESSION(52G)
90501-101A7-00
Unavailable
87
PLATE, SIDE 1
59V-18561-00-00
Unavailable
88
GUIDE, SHIFT RETURN SPRING
59V-18153-01-00
Unavailable
89
SHAFT, RINK
83R-18341-00-00
Unavailable
90
COLLAR(83R)
90387-145T7-00
Unavailable
91
WASHER, PLATE(52G)
90201-144J2-00
Unavailable
92
O-RING (611)
93210-10096-00
Unavailable
93
WASHER, PLATE(52G)
90201-064J1-00
Unavailable
94
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
95
COVER, SHIFT SPRING
59V-18433-00-00
Unavailable
96
WASHER(6TA)
92907-06600-00
Unavailable
97
BOLT,SOCKET
91317-06025-00
Unavailable
98
BALL, L (L.H)
3X3-18157-10-00
Unavailable
99
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
100
NUT(6TA)
95337-08600-00
Unavailable
101
NUT
90170-08261-00
Unavailable
102
JOINT, ROD 1
83R-18116-00-00
Unavailable
103
BALL, L (R.H)
3X3-18156-10-00
Unavailable
104
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
105
LABEL, 1
83R-47578-00-00
Unavailable
