- VK540M (VK540) 1988
SHROUD - WINDSHIELD

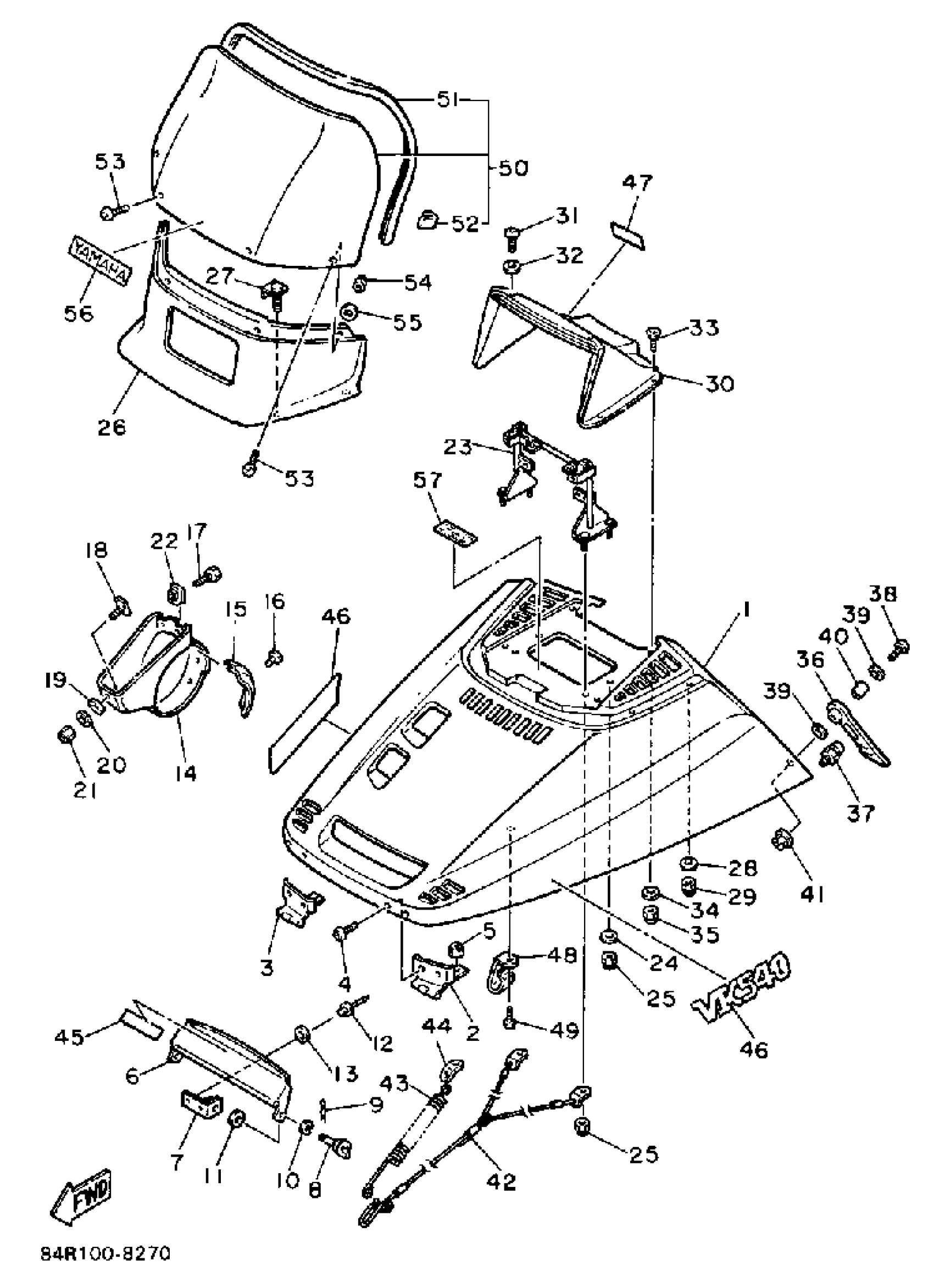

Yamaha VK540M (VK540) 1988 SHROUD - WINDSHIELD Diagram
#
1
SHROUD ASSY
83R-77111-01-00
Unavailable
2
HINGE ASSY
83R-77140-00-00
Unavailable
3
HINGE ASSY 2
83R-7714A-01-00
Unavailable
4
SCREW, BIND (705)
98980-06016-00
$8.49
5
NUT, NYLON
95707-06300-00
$3.50
6
PLATE 1
83R-77185-00-00
Unavailable
7
STAY 1
83R-77125-00-00
Unavailable
8
BOLT, WING(8W1)
90122-05022-00
$7.49
9
PIN, HAIR 6474123500
90468-10003-00
$1.96
10
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
11
. WASHER, PLATE
90202-05088-00
Unavailable
12
RIVET, BLIND (8H4)
90267-48053-00
$3.61
13
WASHER, PLATE (34L)
90201-043H7-00
$3.50
14
DUCT
83R-77194-00-00
Unavailable
15
BUSH, RUBBER 1
83R-77515-00-00
Unavailable
16
RIVET(81E)
90269-05055-00
Unavailable
17
SCREW, BINDING
98907-06014-00
Unavailable
18
PLATE 2
83R-77186-00-00
Unavailable
19
WASHER, PLATE
90201-06020-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
NUT, HEXAGON
95380-06600-00
Unavailable
22
NUT
83R-77144-00-00
Unavailable
23
SRAY, FAIRING
83R-77241-00-00
Unavailable
24
WASHER, PLATE
90201-06020-00
Unavailable
25
NUT, NYLON
95707-06300-00
$3.50
26
FAIRING 1
83R-77231-00-00
Unavailable
27
BOLT, WIND SHIELD
83R-77212-00-00
Unavailable
28
WASHER, PLATE
90201-06020-00
Unavailable
29
NUT, NYLON
95707-06300-00
$3.50
30
COVER, HEADLIGHT
83R-77251-00-00
Unavailable
31
SCREW, BINDING
98907-05012-00
Unavailable
32
WASHER, PLATE (214-27417-00)
90201-06042-00
Unavailable
33
SCREW, FLAT
98707-05016-00
Unavailable
34
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
35
NUT, NYLON
95707-05300-00
Unavailable
36
BODY, LATCH 1
8V0-77171-00-00
Unavailable
37
HOLDER, LATCH
8V0-77175-00-00
Unavailable
38
SCREW, BINDING
98907-06025-00
Unavailable
39
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
40
COLLAR (420)
90387-06241-00
Unavailable
41
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
42
STOPPER, SHROUD
83R-77118-01-00
Unavailable
43
CLAMP,ROD
838-77159-00-00
Unavailable
44
STAY 2
83R-77126-00-00
Unavailable
45
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
46
EMBLEM 1
84R-77351-00-00
Unavailable
47
EMBLEM 2
84R-77352-00-00
Unavailable
48
CLAMP(83R)
90461-08113-00
Unavailable
49
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
50
WINDSHIELD, VK540
86V-77210-10-XX
Unavailable
51
TRIM,UPPER
87K-77213-00-00
Unavailable
52
. FASTENER
80V-77223-00-00
Unavailable
53
UNAVAILABLE IN PRICE BOOK
90154-05014-70
Unavailable
54
NUT, CROWN(8V0)
90176-05059-00
Unavailable
55
WASHER PLATE 829771780000
90201-05033-00
Unavailable
56
EMBLEM, YAMAHA(PASTEL GOLD)
99245-00120-00
Unavailable
57
LABEL, CAUTION
83R-1417E-01-00
Unavailable
