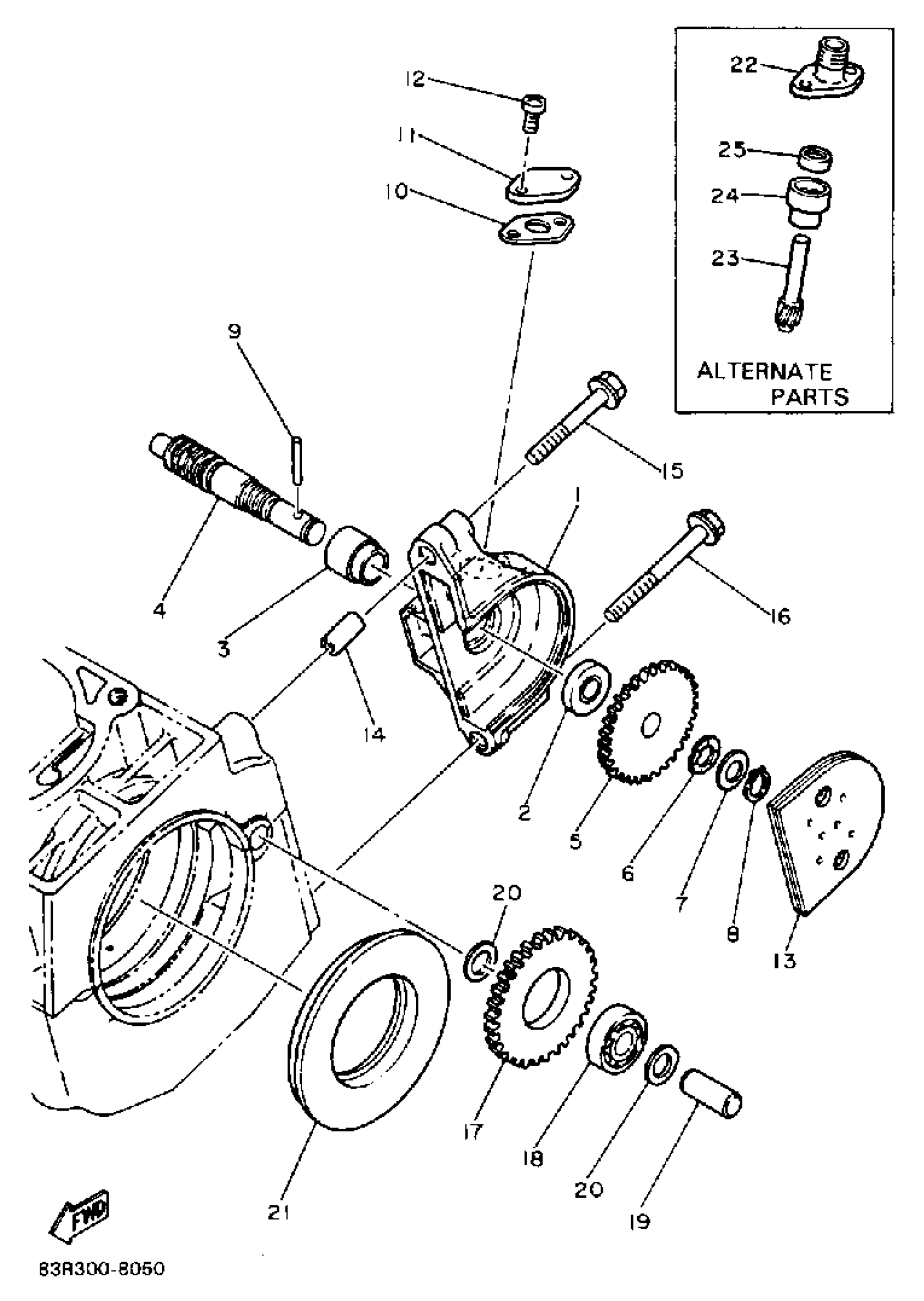

Yamaha VK540M (VK540) 1988 PUMP DRIVE - GEAR Diagram

#

Description
Price

1

COVER, OIL PUMP

8H8-15416-00-00

Unavailable

2

OIL SEAL (J10)

93101-10090-00

$8.49

3

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

4

SHAFT, WORM

866-13175-00-00

Unavailable

5

GEAR, DRIVE 2

821-13188-00-00

Unavailable

6

WASHER, WAVE (137)

90206-11016-00

Unavailable

7

PLATE, CAM THRUST

137-13148-00-00

Unavailable

8

CIRCLIP(10W)

99009-10400-00

$4.73

9

PIN,DOWEL (137)

93603-22028-00

$3.76

10

GASKET

821-17818-02-00

$6.99

11

CAP, HOUSING

824-17819-00-00

Unavailable

12

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

13

COVER, OIL PUMP 2

8K4-15426-00-00

$10.49

14

PIN, DOWEL(3XW)

91808-16023-00

$8.49

15

BOLT, FLANGE(4KM)

95024-06040-00

$9.49

16

BOLT, SMALL FLANGE

95027-06055-00

Unavailable

17

GEAR, IDLE (34T)

8H8-13179-00-00

Unavailable

18

BRG,R-B 6000RS 32MM 30G KY

93306-00002-00

Unavailable

19

SHAFT, IDLE GEAR

8G8-13342-00-00

Unavailable

20

WASHER, PLAIN(735)

90201-10119-00

Unavailable

21

SEAL, GREASE

8K4-13119-00-00

Unavailable

22

CAP, HOUSING

821-17819-00-00

Unavailable

23

GEAR, DRIVEN (10T)

813-17841-00-00

Unavailable

24

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

Unavailable

25

OIL SEAL (6X12X4-821)

93104-06033-00

Unavailable
