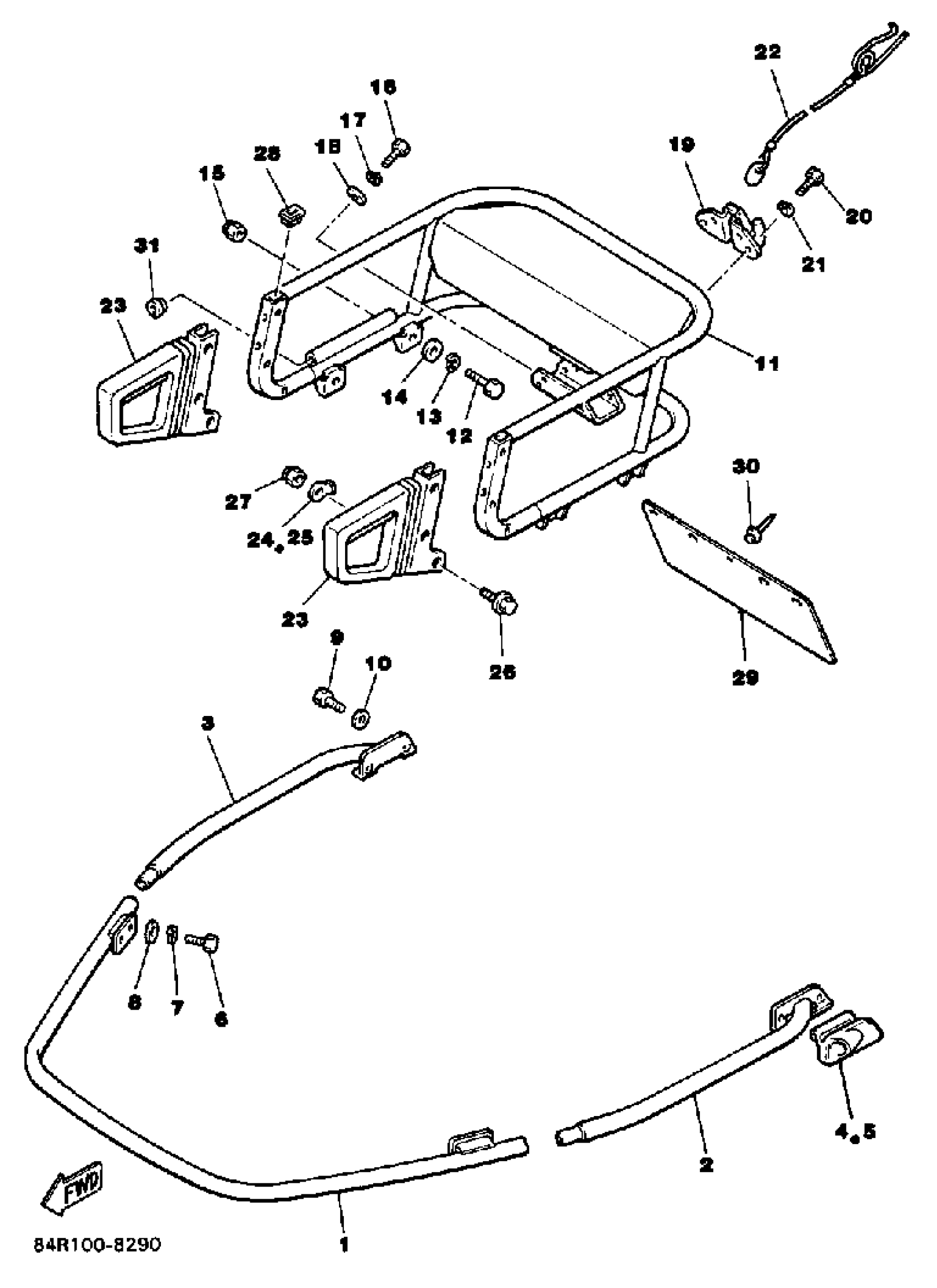

Yamaha VK540M (VK540) 1988 BUMPER Diagram
#
1
BUMPER, FRONT 1
83R-77511-01-00
Unavailable
2
BUMPER, FRONT 3
83R-77513-00-00
Unavailable
3
BUMPER, FRONT 4
83R-77514-00-00
Unavailable
4
END, BUMPER
83R-77523-00-00
Unavailable
5
END, BUMPER
83R-77524-00-00
Unavailable
6
BOLT, HEXAGON
97017-08025-00
$10.49
7
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
8
.. WASHER, PLATE
92990-08600-00
Unavailable
9
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
10
WASHER, PLATE
90201-06M02-00
Unavailable
11
REAR BUMPER COMP.
83R-77540-00-00
Unavailable
12
BOLT
97026-08014-00
Unavailable
13
WASHER(JN5)
92907-08100-00
$8.49
14
WASHER(6TA)
92907-08600-00
$3.03
15
NUT, CAP
95307-08800-00
$7.49
16
BOLT, HEXAGON
97017-08020-00
Unavailable
17
WASHER(JN5)
92907-08100-00
$8.49
18
WASHER(6TA)
92907-08600-00
$3.03
19
BRACKET, HITCH 1
86D-77591-00-00
Unavailable
20
BOLT, HEXAGON
97017-08020-00
Unavailable
21
WASHER(JN5)
92907-08100-00
$8.49
22
PIN, HINGE
8U1-77157-00-00
Unavailable
23
GRIP, ASSIST 1
8X0-77571-00-00
Unavailable
24
WASHER 1
8X0-77525-00-00
Unavailable
25
WASHER 2
8X0-77526-00-00
Unavailable
26
BOLT, FLANGE
95817-08040-00
Unavailable
27
NUT, CROWN(82U)
90176-08063-00
Unavailable
28
CAP
8X1-77517-00-00
Unavailable
29
FLAP
83R-77595-00-00
Unavailable
30
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
31
GROMMET (8L1)
90480-15268-00
Unavailable
