TRACK DRIVE 3

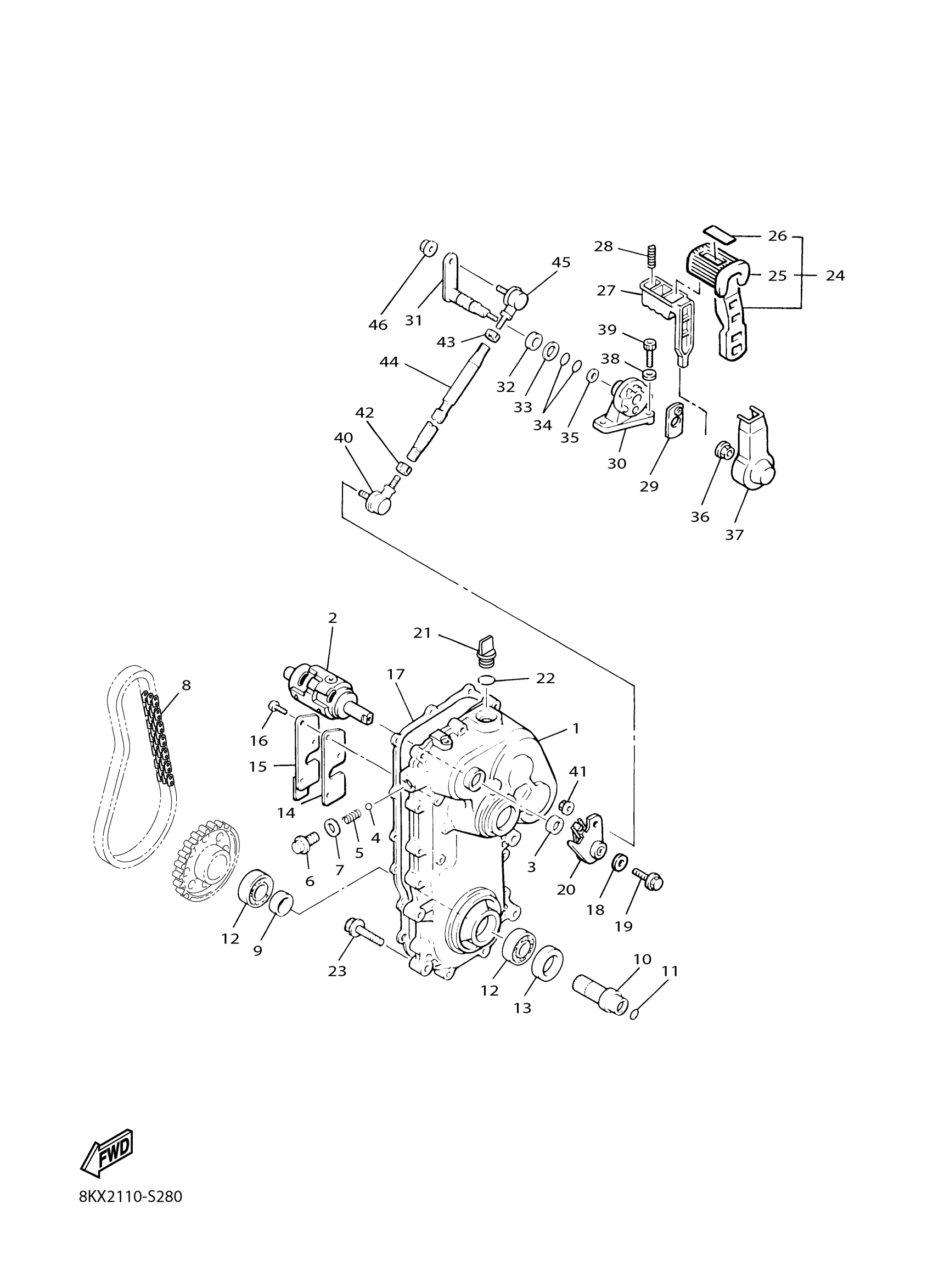

Yamaha VK540FHW (VK540) 8KX21 2017 TRACK DRIVE 3 Diagram
#
1
HOUSING, CHAIN
87R-47541-00-00
Unavailable
2
SHIFT CAM ASSY
89N-18540-00-00
Unavailable
3
OIL SEAL (3X3)
93102-15212-00
$9.49
4
BALL
93503-08007-00
$4.15
5
SPRING, COMPRESSION(59V)
90501-147A6-00
$3.88
6
BOLT, FLANGE
90105-14003-00
$8.49
7
GASKET(59V)
90430-14194-00
$8.49
8
CHAIN
94591-63070-00
Unavailable
9
COLLAR(83R)
90387-405T8-00
Unavailable
10
JOURNAL 1
83R-47571-00-00
$313.99
11
O-RING(83R)
93210-28763-00
$7.49
12
BEARING
93306-90802-00
$136.99
13
OIL SEAL(83R)
93102-46394-00
$14.99
14
GASKET
85R-47544-02-00
$5.49
15
PLATE
88N-47591-00-00
Unavailable
16
SCREW, BINDING
98907-06008-00
Unavailable
17
GASKET
85R-47592-01-00
Unavailable
18
WASHER PLATE 137241870000
90201-06072-00
Unavailable
19
BOLT, FLANGE
95817-06035-00
Unavailable
20
SHIFT SHAFT ASSY
89N-18130-01-00
Unavailable
21
PLUG, OIL
3Y1-15363-10-00
Unavailable
22
O-RING (646)
93210-19123-00
Unavailable
23
BOLT, FLANGE
95817-08040-00
Unavailable
24
SHIFT LEVER ASSY
8KX-18150-00-00
Unavailable
25
COVER, SHIFT PEDAL
52G-18113-00-00
Unavailable
26
LABEL
8KX-1815A-00-00
Unavailable
27
KNOB, SHIFT LEVER
59V-18174-00-00
Unavailable
28
SPRING, COMPRESSION(52G)
90501-101A7-00
Unavailable
29
PLATE, SIDE 1
59V-18561-00-00
Unavailable
30
GUIDE, SHIFT RETURN SPRING
59V-18153-01-00
Unavailable
31
SHAFT, RINK
83R-18341-00-00
Unavailable
32
COLLAR(83R)
90387-145T7-00
Unavailable
33
WASHER, PLATE(52G)
90201-144J2-00
Unavailable
34
. O-RING
93210-10010-00
Unavailable
35
WASHER, PLATE(52G)
90201-064J1-00
Unavailable
36
NUT, FLANGE
95702-06500-00
Unavailable
37
COVER, SHIFT SPRING
59V-18433-00-00
Unavailable
38
WASHER, PLAIN (646)
92990-06600-00
Unavailable
39
BOLT,SOCKET
91317-06025-00
Unavailable
40
BALL, L (L.H)
3X3-18157-10-00
Unavailable
41
NUT, FLANGE
95702-06500-00
Unavailable
42
NUT(6L2)
95333-08600-00
Unavailable
43
NUT
90170-08261-00
Unavailable
44
JOINT, ROD 1
83R-18116-00-00
Unavailable
45
BALL, L (R.H)
3X3-18156-10-00
Unavailable
46
NUT, FLANGE
95702-06500-00
Unavailable
