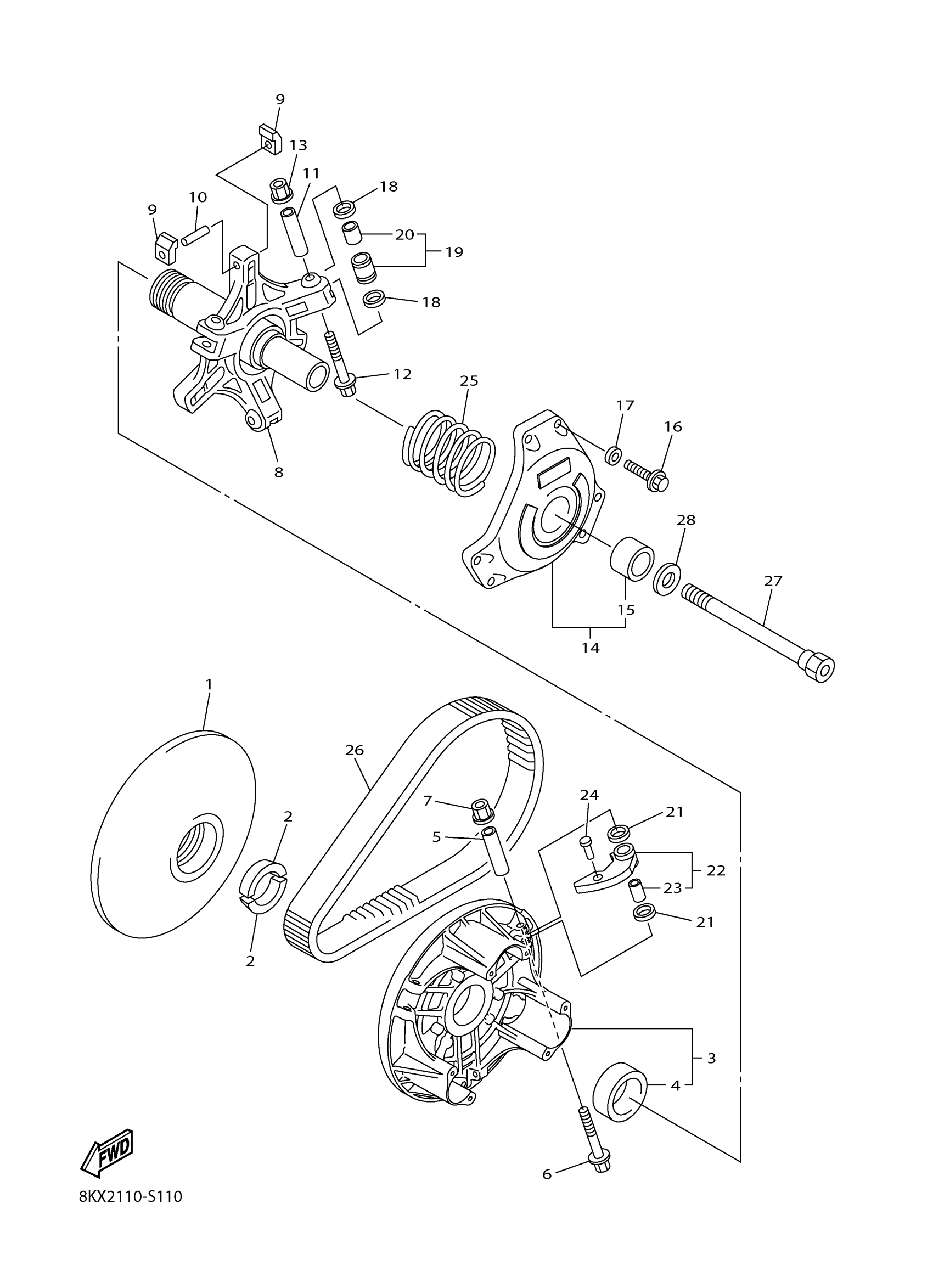

Yamaha VK540FHW (VK540) 8KX21 2017 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

$206.99

2

STOPPER

8V0-17639-00-00

$14.99

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-03-00

Unavailable

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$60.99

5

COLLAR

90387-0514T-00

$16.99

6

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

7

NUT, S/L FLANGE

95607-05200-00

$9.49

8

SPIDER COMPLETE

8ES-17640-02-00

Unavailable

9

SLIDER

8BW-17653-00-00

$16.49

10

PIN, SPRING (7F7)

91609-50032-00

$4.14

11

COLLAR

90387-0514U-00

$20.99

12

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

13

NUT, S/L FLANGE

95607-05200-00

$9.49

14

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

Unavailable

15

BUSH, SOLID(8CP)

90380-28237-00

$37.99

16

BOLT, HEXAGON

97017-06030-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

WASHER, PLATE(8BV)

90202-09227-00

Unavailable

19

ROLLER, COMP

8FG-17624-00-00

Unavailable

20

BUSH

90386-09001-00

Unavailable

21

WASHER, PLATE(88R)

90202-08204-00

Unavailable

22

WEIGHT COMP

8AT-17605-10-00

Unavailable

23

BUSH

90386-08002-00

Unavailable

24

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

Unavailable

24

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

Unavailable

24

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

Unavailable

25

SPRING, COMPRESSION(89F)

90501-507G2-00

Unavailable

25

SPRING, COMPRESSION(89F)

90501-556G5-00

Unavailable

25

SPRING, COMPRESSION(89F)

90501-606G9-00

Unavailable

26

V-BELT

8DN-17641-01-00

Unavailable

27

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

28

WASHER(JN5)

92907-16100-00

Unavailable
