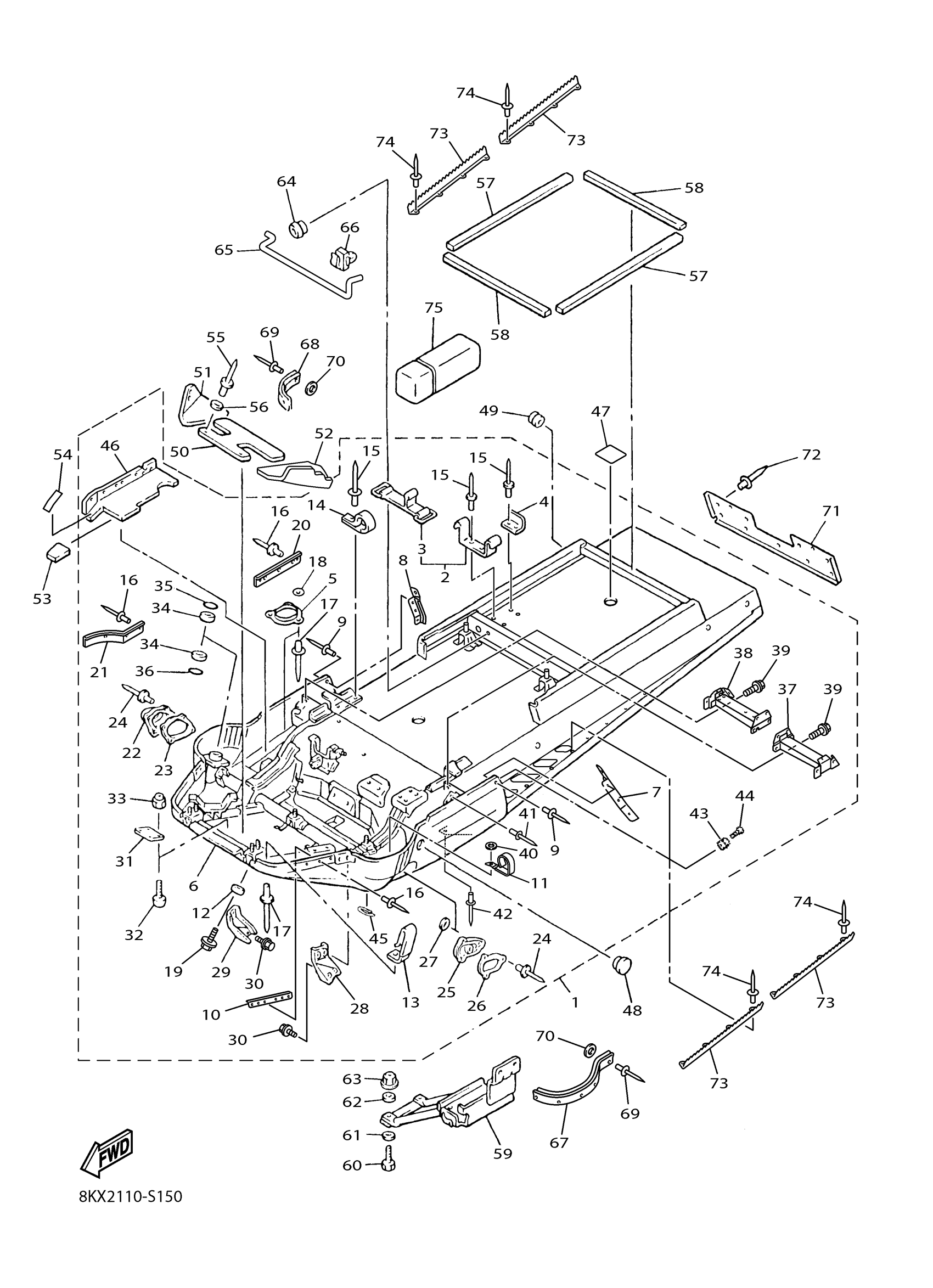

Yamaha VK540FHW (VK540) 8KX21 2017 FRAME Diagram
#
1
FRAME COMP.
8KX-W2190-00-00
Unavailable
2
BRACKET, TOOL BOX FITTING
81E-21945-00-00
$20.99
3
BAND, BATTERY
4J2-82131-01-00
$29.99
4
BRACKET, TOOL BOX FITTING
83R-21955-00-00
$8.99
5
COVER 1
83R-2198F-00-00
Unavailable
6
. PANEL, SUB FRAME 1
8JD-21912-02-00
Unavailable
7
REINFORCEMENT, FRAME 1
83R-21986-00-00
Unavailable
8
REINFORCEMENT, FRAME 2
83R-21987-00-00
Unavailable
9
RIVET, BLIND(J50)
90267-49152-00
$3.76
10
PATCH 5
8AC-21965-00-00
Unavailable
11
. CLAMP
90462-08021-00
Unavailable
12
C0LLAR
90387-062M9-00
$9.49
13
CLAMP(51Y)
90465-08277-00
Unavailable
14
CLAMP
90462-10236-00
$10.49
15
RIVET, BLIND
90267-48060-00
$8.49
16
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
17
RIVET, BLIND
90267-48018-00
Unavailable
18
WASHER, PLATE
90201-04027-00
Unavailable
19
BOLT, FLANGE
95817-06016-00
Unavailable
20
PLATE, BACK UP
8AT-77527-02-00
Unavailable
21
PLATE, 1
8JD-77577-00-00
Unavailable
22
COVER, STEERING
8AT-23818-00-00
Unavailable
23
WASHER 2
8AT-77526-00-00
Unavailable
24
RIVET, BLIND
90267-40029-00
Unavailable
25
COVER 1
8M6-2198F-00-00
Unavailable
26
SPACER
8M6-21998-00-00
Unavailable
27
WASHER, PLATE
90201-04027-00
Unavailable
28
BRACKET, FRONT GUARD 3
8AT-2194Y-00-00
Unavailable
29
BRACKET, FRONT GUARD 4
8AT-2195Y-00-00
Unavailable
30
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
31
PANEL, SUB FRAME 6
89X-21917-00-00
Unavailable
32
SCREW, BINDING
98907-05014-00
Unavailable
33
NUT, NYLON
95707-05300-00
Unavailable
34
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
Unavailable
35
OIL SEAL (8M6)
93102-36232-00
Unavailable
36
OIL SEAL (8M6)
93103-36117-00
Unavailable
37
BRACKET 3
8AT-23883-01-00
Unavailable
38
BRACKET 4
8AT-23884-01-00
Unavailable
39
BOLT, FLANGE
95817-06012-00
Unavailable
40
. WASHER, PLAIN
92990-05200-00
Unavailable
41
RIVET, BLIND
90267-48177-00
Unavailable
42
RIVET, BLIND
90267-48193-00
Unavailable
43
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
44
SCREW, BINDING
98907-06035-00
Unavailable
45
CIRCLIP (8L9)
93410-52061-00
Unavailable
46
DAMPER, NOISE 12
8KA-77272-00-00
Unavailable
47
COVER 3
8CR-2198J-00-00
Unavailable
48
PLUG (8H8)
90338-44093-00
Unavailable
49
GROMMET (438)
90480-15061-00
Unavailable
50
DAMPER, NOISE 11
8KA-77271-00-00
Unavailable
51
DAMPER, NOISE 13
8KA-77273-00-00
Unavailable
52
DAMPER, NOISE 14
8KX-77274-00-00
Unavailable
53
DAMPER, NOISE 15
8KA-77275-00-00
Unavailable
54
TRIM 1
8CR-77165-00-00
Unavailable
55
RIVET, BLIND
90267-48018-00
Unavailable
56
WASHER, PLATE
90201-04027-00
Unavailable
57
TAPE 1
83R-7717E-00-00
Unavailable
58
TAPE 1
83R-7717E-00-00
Unavailable
59
BRACKET, BATTERY
8AT-2199G-01-00
Unavailable
60
BOLT, HEXAGON
97017-06025-00
Unavailable
61
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
62
WASHER, PLATE (4F4)
90201-063A5-00
Unavailable
63
NUT, NYLON
95707-06300-00
Unavailable
64
GROMMET (22F)
90480-10348-00
Unavailable
65
STAY, SEAT
8KX-2471A-00-00
Unavailable
66
HOLDER, 2
85R-2639F-00-00
Unavailable
67
TRIM 1
8AT-2196T-00-00
Unavailable
68
TRIM 1
8JD-2196T-00-00
Unavailable
69
RIVET, BLIND(8AC)
90267-40172-00
Unavailable
70
WASHER, PLATE
90201-042E0-00
Unavailable
71
REINFORCEMENT, FRAME REAR 2
8AC-21933-00-00
Unavailable
72
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
73
REINFORCEMENT, FOOTREST 1
8JD-21926-00-00
Unavailable
74
RIVET, BLIND
90267-48023-00
Unavailable
75
TOOL KIT
85L-28100-01-00
Unavailable
