Description

Price

1

EMBLEM

8FM-24897-01-00

Unavailable

2

LABEL, WARNING 5

8JT-77765-E0-00

$5.60

3

LABEL, PULLING LOAD LIMIT

8GS-2817S-E0-00

$4.14

4

BUMPER, FRONT 1

8KX-77511-00-00

Unavailable

5

BUMPER, FRONT 3

8JN-77513-00-00

$111.99

6

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

7

BOLT, BUTTON

92017-08020-00

$7.49

8

NUT,FLANGE(J10)

95702-08500-00

$1.43

9

REAR BUMPER COMP.

8KX-77540-10-00

Unavailable

10

BOLT, FLANGE

95822-08014-00

$8.49

11

WASHER(6TC)

92907-08200-00

$8.49

12

WASHER(JN5)

92907-08100-00

$8.49

13

NUT, CAP

95307-08800-00

$7.49

14

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

15

BRACKET, HITCH 2

84R-77592-00-00

$34.99

16

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

17

NUT, SELF-LOCKING

95602-08200-00

Unavailable

18

GRIP, ASSIST 1

8JD-77571-00-00

Unavailable

19

BRACKET, FRONT

8JD-77531-00-00

Unavailable

20

BRACKET, FRONT (R.H)

8JD-77532-00-00

Unavailable

21

BOLT, FLANGE(JN5)

95817-08045-00

Unavailable

22

NUT, CROWN(82U)

90176-08063-00

Unavailable

23

FLAP

83R-77595-00-00

Unavailable

24

RIVET, BLIND (8R6)

90267-48086-00

Unavailable

25

GROMMET (8L1)

90480-15268-00

Unavailable

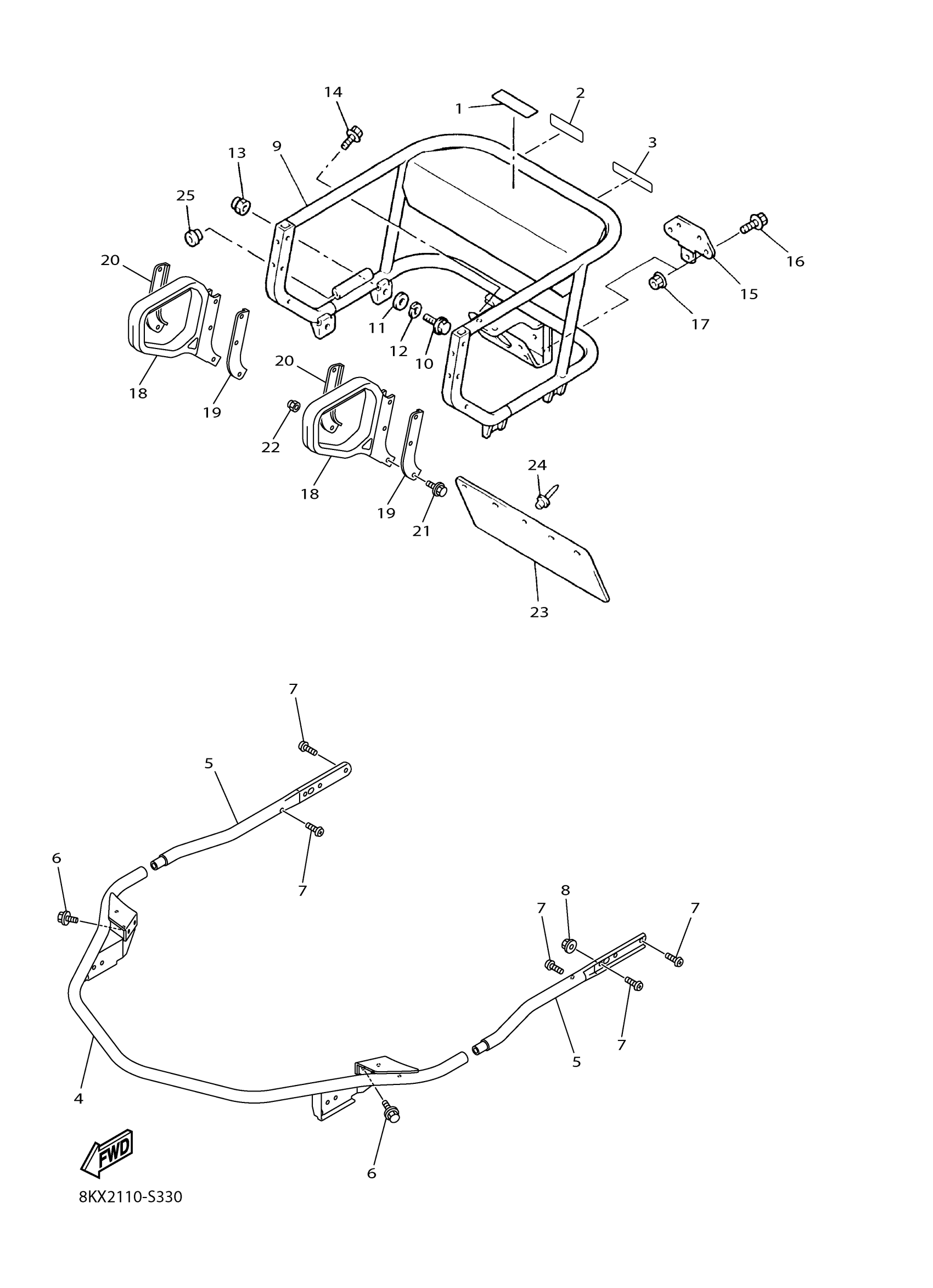

Yamaha VK540FHW (VK540) 8KX21 2017 BUMPER Diagram

EMBLEM

LABEL, WARNING 5

LABEL, PULLING LOAD LIMIT

BUMPER, FRONT 1

BUMPER, FRONT 3

BOLT WASHER BASED (1J7)

BOLT, BUTTON

NUT,FLANGE(J10)

REAR BUMPER COMP.

BOLT, FLANGE

WASHER(6TC)

WASHER(JN5)

NUT, CAP

BOLT, FLANGE(8AB)

BRACKET, HITCH 2

BOLT, FLANGE(4LN)

NUT, SELF-LOCKING

GRIP, ASSIST 1

BRACKET, FRONT

BRACKET, FRONT (R.H)

BOLT, FLANGE(JN5)

NUT, CROWN(82U)

FLAP

RIVET, BLIND (8R6)

GROMMET (8L1)
