Description

Price

1

CLUTCH REPAIR KIT

8GN-W176G-01-00

$694.99

2

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

$206.99

3

STOPPER

8V0-17639-00-00

$14.99

4

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-03-00

Unavailable

5

COLLAR

90387-0514T-00

$16.99

6

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

7

NUT, S/L FLANGE

95607-05200-00

$9.49

8

SPIDER COMPLETE

8ES-17640-02-00

Unavailable

9

SLIDER

8BW-17653-00-00

$16.49

10

PIN, SPRING (7F7)

91609-50032-00

$4.14

11

COLLAR

90387-0514U-00

$20.99

12

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

Unavailable

13

BOLT, HEXAGON

97017-06030-00

$3.61

14

WASHER(6TA)

92907-06600-00

$2.72

15

WASHER, PLATE(8BV)

90202-09227-00

$10.49

16

WASHER, PLATE(88R)

90202-08204-00

Unavailable

17

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

18

WASHER(JN5)

92907-16100-00

Unavailable

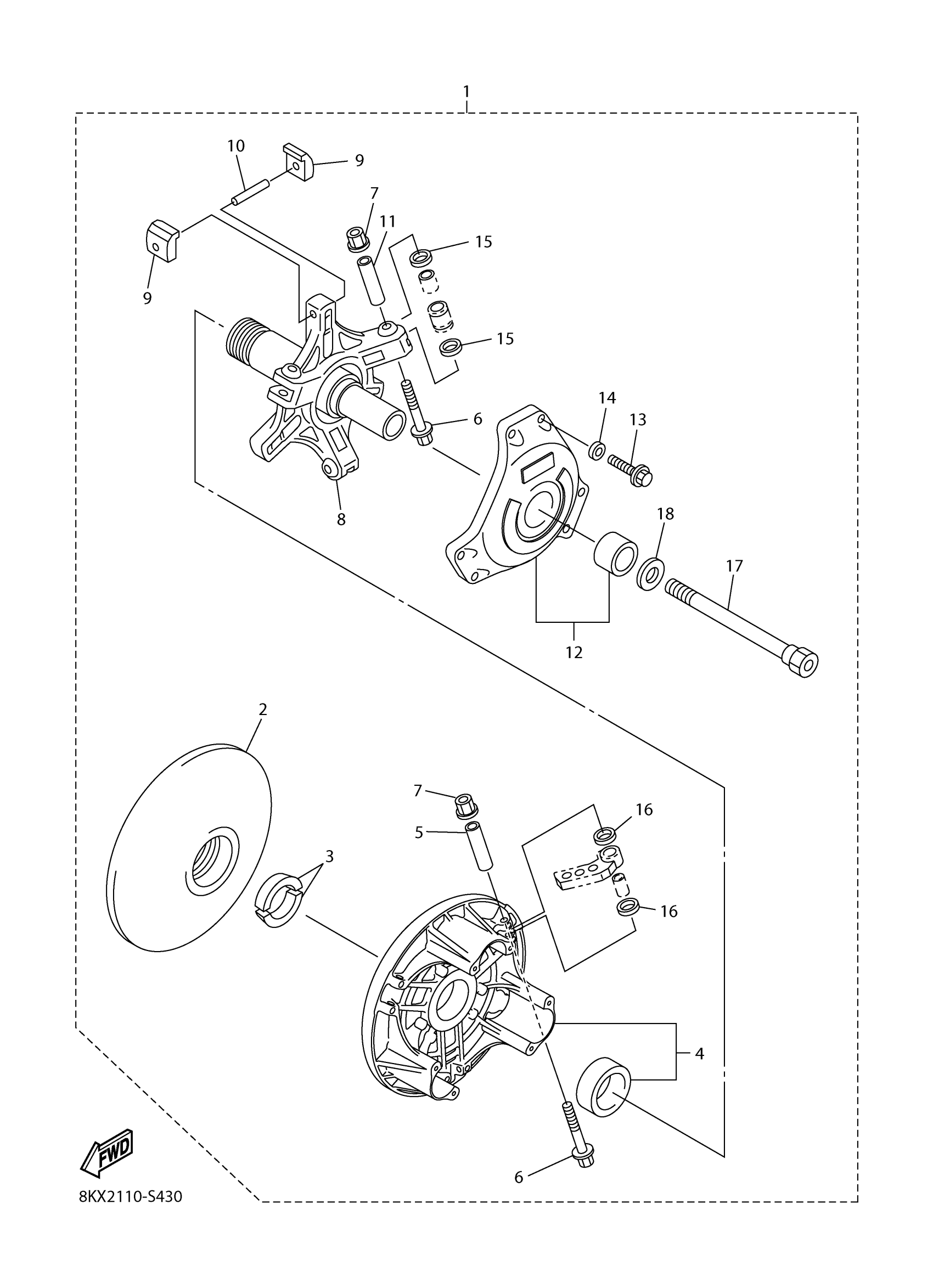

Yamaha VK540FHW (VK540) 8KX21 2017 ALTERNATE REBUILD KIT Diagram

CLUTCH REPAIR KIT

SHEAVE, PRIMARY FIXED

STOPPER

PRIMARY SLIDING SHEAVE COMP.

COLLAR

BOLT, WASHER BASED(88R)

NUT, S/L FLANGE

SPIDER COMPLETE

SLIDER

PIN, SPRING (7F7)

COLLAR

PRIMARY SHEAVE CAP COMP.

BOLT, HEXAGON

WASHER(6TA)

WASHER, PLATE(8BV)

WASHER, PLATE(88R)

BOLT (L=156.5MM)

WASHER(JN5)
