Description

Price

1

SHAFT, PIVOT

83R-47337-00-00

Unavailable

2

BOLT, FLANGE

95817-10030-00

$8.49

3

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

4

COLLAR(83R)

90387-105T5-00

$2.60

5

BUSH(83R)

90386-16154-00

$12.49

6

FRAME, SLIDING

83R-W4741-00-00

Unavailable

7

FRAME, SLIDING

83R-W4741-00-00

Unavailable

8

RUNNER, SLIDING 4

83R-47424-00-00

Unavailable

9

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

10

ARM, PIVOT 3

83R-47333-01-00

Unavailable

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

BOLT, WASHER BASED(83R)

90105-08483-00

$13.99

13

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

14

WASHER (1T1)

90201-08649-00

$9.49

15

SEAT, SPRING 1

83R-23768-00-00

$5.49

16

SPRING, COMPRESSION(83R)

90501-407E4-00

Unavailable

17

SPRING

83R-47335-00-00

Unavailable

18

HOOK 1

83R-47446-00-00

Unavailable

19

NUT, NYLON

95717-12300-00

Unavailable

20

COLLAR 2

8AC-47478-00-00

Unavailable

21

COLLAR 3

8K2-47479-01-00

Unavailable

22

NUT, NYLON

95707-10300-00

Unavailable

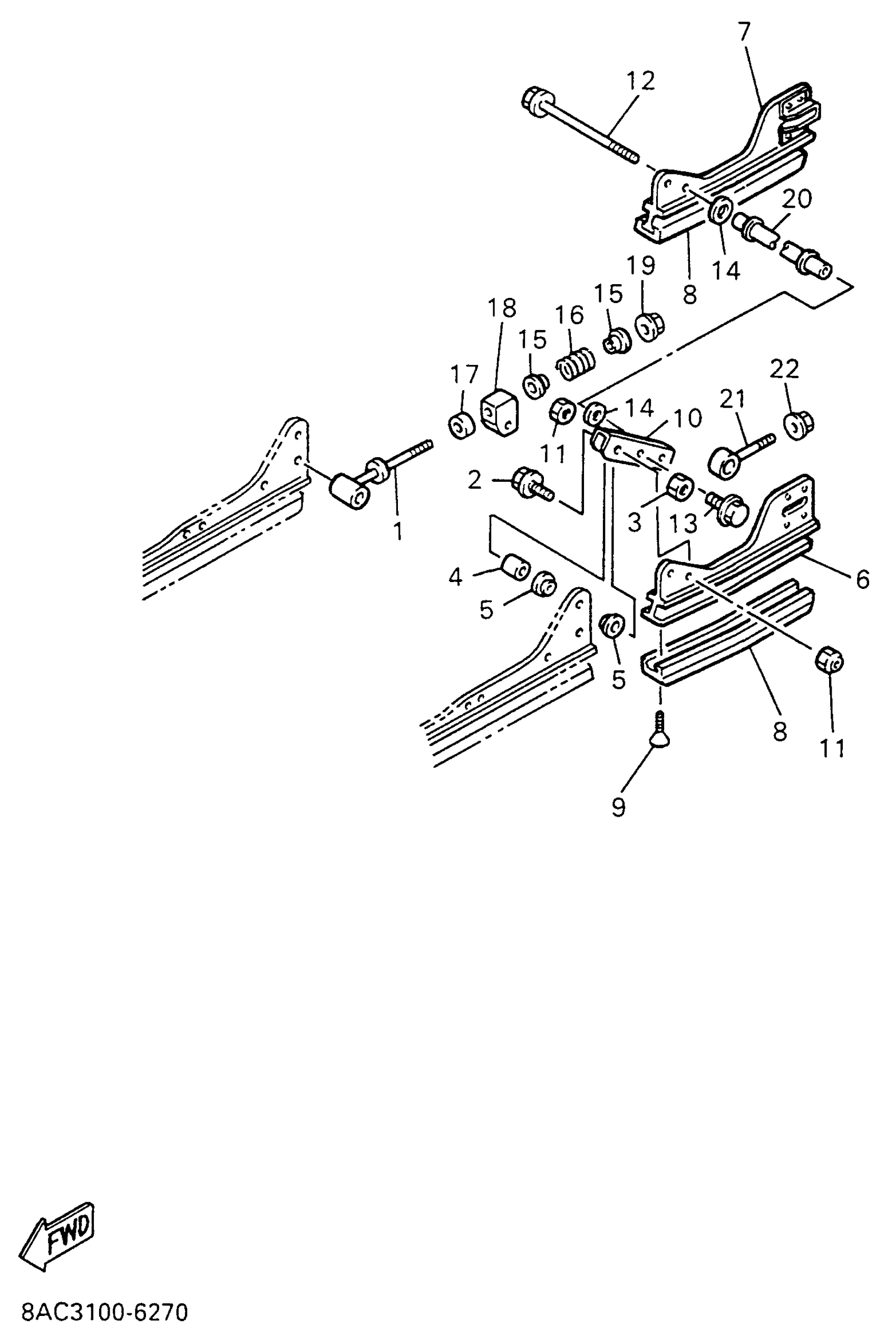

Yamaha VK540EW (VK540 II) 1996 TRACK SUSPENSION 3 Diagram

SHAFT, PIVOT

BOLT, FLANGE

NUT, SELF-LOCKING (8U7)

COLLAR(83R)

BUSH(83R)

FRAME, SLIDING

FRAME, SLIDING

RUNNER, SLIDING 4

SCREW, CROSSRECESS (8G6)

ARM, PIVOT 3

NUT, SELF-LOCKING

BOLT, WASHER BASED(83R)

BOLT, FLANGE(6TA)

WASHER (1T1)

SEAT, SPRING 1

SPRING, COMPRESSION(83R)

SPRING

HOOK 1

NUT, NYLON

COLLAR 2

COLLAR 3

NUT, NYLON
