1996 Yamaha VK540 Ii (VK540EW) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1996 Yamaha VK540 Ii (VK540EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

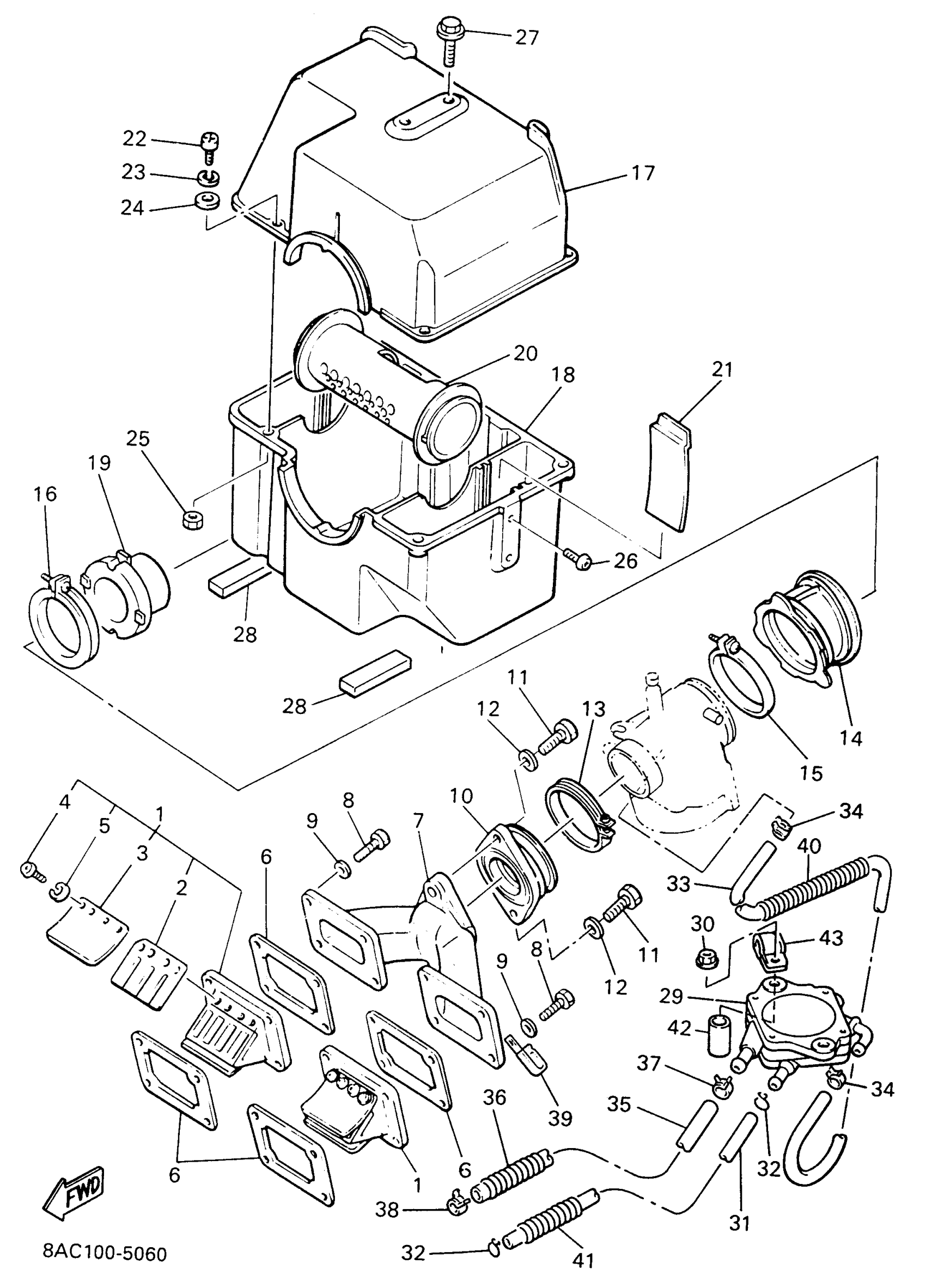

1996 Yamaha VK540 Ii (VK540EW) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

8AT-13610-00-00

1
Out of stock

2

REED, VALVE

8AT-13613-00-00

1
Out of stock

3

STOPPER REED VALVE

8H8-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1
Out of stock

6

GASKET, MANIFOLD

8Y7-13556-01-00

1
Out of stock

7

JOINT, CARBURETOR

83R-13565-00-00

—
Out of stock

8

BOLT, HEXAGON

97017-06025-00

1
Out of stock

9

WASHER(6TA)

92907-06600-00

1
Out of stock

10

MANIFOLD

8G8-13555-01-00

1
Out of stock

11

BOLT, HEXAGON

97017-08025-00

1
Out of stock

12

WASHER(6TA)

92907-08600-00

1
Out of stock

13

BAND

86M-13575-00-00

1
Out of stock

14

JOINT, AIR CLEANER 1

83R-14453-00-00

1
Out of stock

15

CLAMP, HOSE (29L)

90460-68230-00

1
Out of stock

16

CLAMP,HOSE

90450-99056-00

1
Out of stock

17

SILENCER

8H8-14431-00-00

—
Out of stock

18

SILENCER

8H8-14441-00-00

—
Out of stock

19

PIPE

83R-14465-00-00

—
Out of stock

20

PIPE, BALANCE 2

8H8-14466-00-00

—
Out of stock

21

PLATE

8H8-14477-00-00

—
Out of stock

22

SCREW, PAN HEAD(JJ6)

98507-05016-00

—
Out of stock

23

WASHER(3SX)

92907-05100-00

—
Out of stock

24

WASHER(1RW)

92907-05600-00

—
Out of stock

25

NUT, HEXAGON SMALL

95317-05700-00

—
Out of stock

26

SCREW, PAN

98507-06010-00

—
Out of stock

27

BOLT, FLANGE

95817-06012-00

—
Out of stock

28

DAMPER 1

83R-14425-00-00

—
Out of stock

29

FUEL PUMP ASSY

8AT-24410-00-00

—
Out of stock

30

NUT, FLANGE(4MV)

95707-06500-00

—
Out of stock

31

HOSE (L450)

90445-10144-00

—
Out of stock

32

CLIP

90467-090A2-00

—
Out of stock

33

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—
Out of stock

34

CLIP (8A1)

90467-09026-00

—
Out of stock

35

TUBE, FLEXIBLE VINYL

91A20-07008-00

1
Out of stock

36

PROTECTOR, PIPE

84M-24327-00-00

—
Out of stock

37

CLIP (7K7)

90467-11044-00

—
Out of stock

38

CLIP (8J7)

90467-11009-00

—
Out of stock

39

CLAMP(51Y)

90465-08277-00

—
Out of stock

40

SPRING, COMPRESSION(7MX)

90501-084J0-00

—
Out of stock

41

SPRING, COMPRESSION (3LD4)

90501-084G9-00

—
Out of stock

42

COLLAR (8U7)

90387-105G5-00

—
Out of stock

43

CLAMP (706)

90465-06100-00

—
Out of stock
