- VK540EV (VK540 II) 1995
SECONDARY SHEAVE

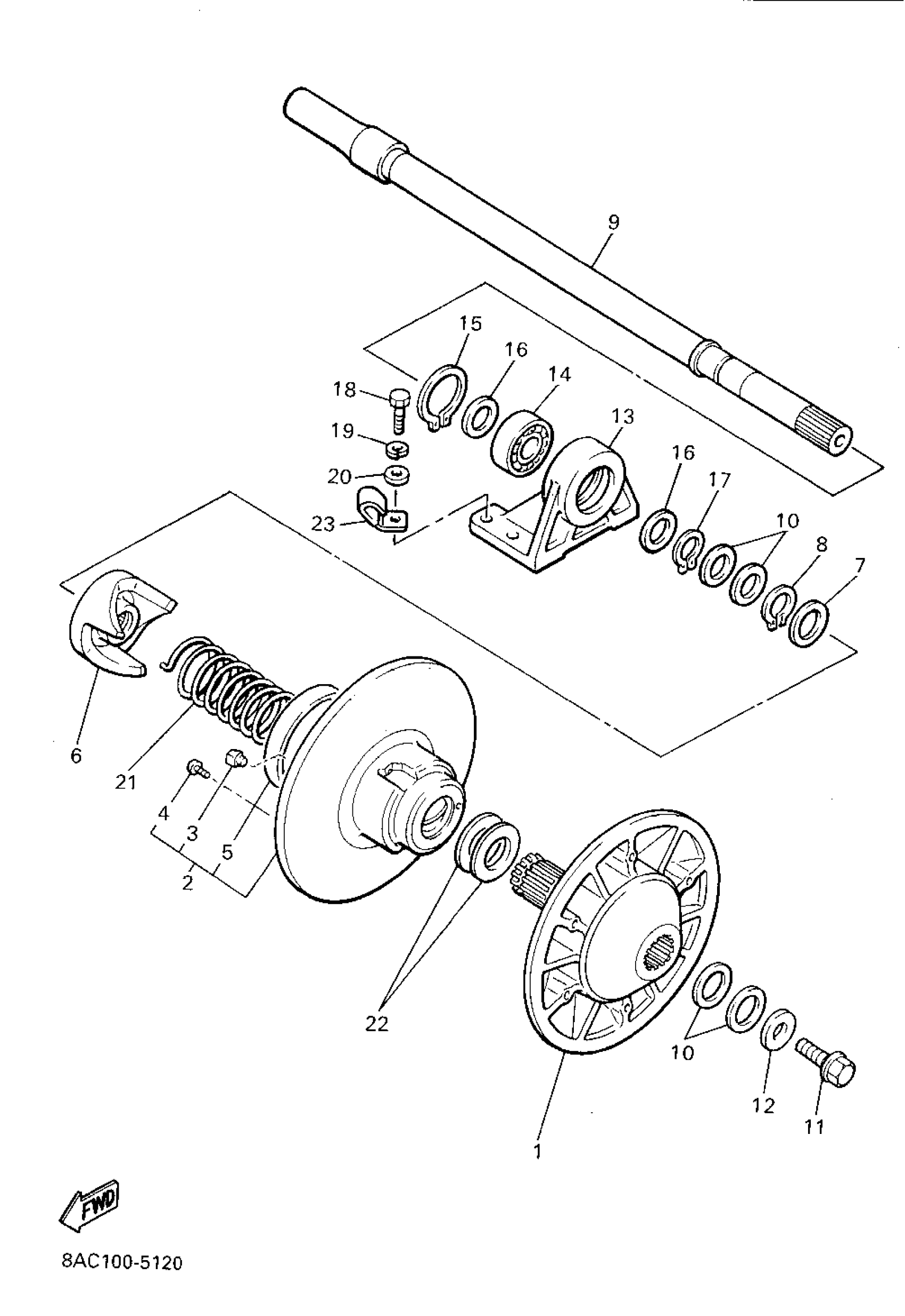

Yamaha VK540EV (VK540 II) 1995 SECONDARY SHEAVE Diagram
#
Description
Price
1
SECONDARY FIXED SHEAVE COMP.
88R-17660-12-00
Unavailable
2
SECONDARY SLIDING SHEAVE
8AT-17670-01-00
Unavailable
3
SHOE RAMP
8X6-17688-00-00
$8.49
4
SCREW, BINDING
98907-06016-00
$9.49
5
BUSH, BIMETAL FORMED (90384-90081-00)
90380-90117-00
Unavailable
6
SEAT, SECONDARY SPRING
8AT-17684-01-00
Unavailable
7
WASHER, CLAW(88R)
90214-29060-00
$7.49
8
CIRCLIP(86F)
93440-34170-00
$8.49
9
SECONDARY SHAFT COMP.
88N-17680-02-00
$303.99
10
WASHER, PLATE (8R6)
90201-252F1-00
$8.49
10
WASHER, PLATE (888)
90201-25526-00
$9.49
10
WASHER, PLATE (888)
90201-25527-00
$10.49
11
BOLT, FLANGE
95817-10020-00
$8.49
12
WASHER, PLATE(42X)
90201-105H3-00
$7.49
13
HOUSING, BEARING
88N-47631-00-00
$117.99
14
BEARING(83R)
93306-20582-00
Unavailable
15
CIRCLIP(26H)
99009-52500-00
Unavailable
16
WASHER, PLATE(J38)
90201-257J2-00
Unavailable
17
CIRCLIP (256)
93410-25017-00
Unavailable
18
BOLT, HEXAGON
97017-08025-00
Unavailable
19
WASHER(JN5)
92907-08100-00
Unavailable
20
WASHER(6TA)
92907-08600-00
Unavailable
21
SPRING, TORSION(84M)
90508-50746-00
Unavailable
22
WASHER, PLATE (8U9)
90201-345G2-00
Unavailable
23
CLAMP (706)
90465-06100-00
Unavailable
