Description

Price

1

METER GEAR HOUSING COMP

83R-47700-00-00

Unavailable

2

JOINT

8K4-47715-00-00

$5.60

3

SPEEDOMETER ASSY

87R-83510-40-00

Unavailable

4

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

5

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

6

DAMPER, METER

8G6-83523-00-00

Unavailable

7

NUT, HEXAGON

95317-05600-00

$2.34

8

WASHER(3SX)

92907-05100-00

$8.49

9

TRIP METER CABLE ASSY

8K1-83603-01-00

Unavailable

10

TACHOMETER CABLE ASSY

8H4-83560-00-00

$64.99

11

TACHOMETER ASSY

85L-83540-00-00

$335.99

12

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

SOCKET CORD ASSY

85L-83509-00-00

Unavailable

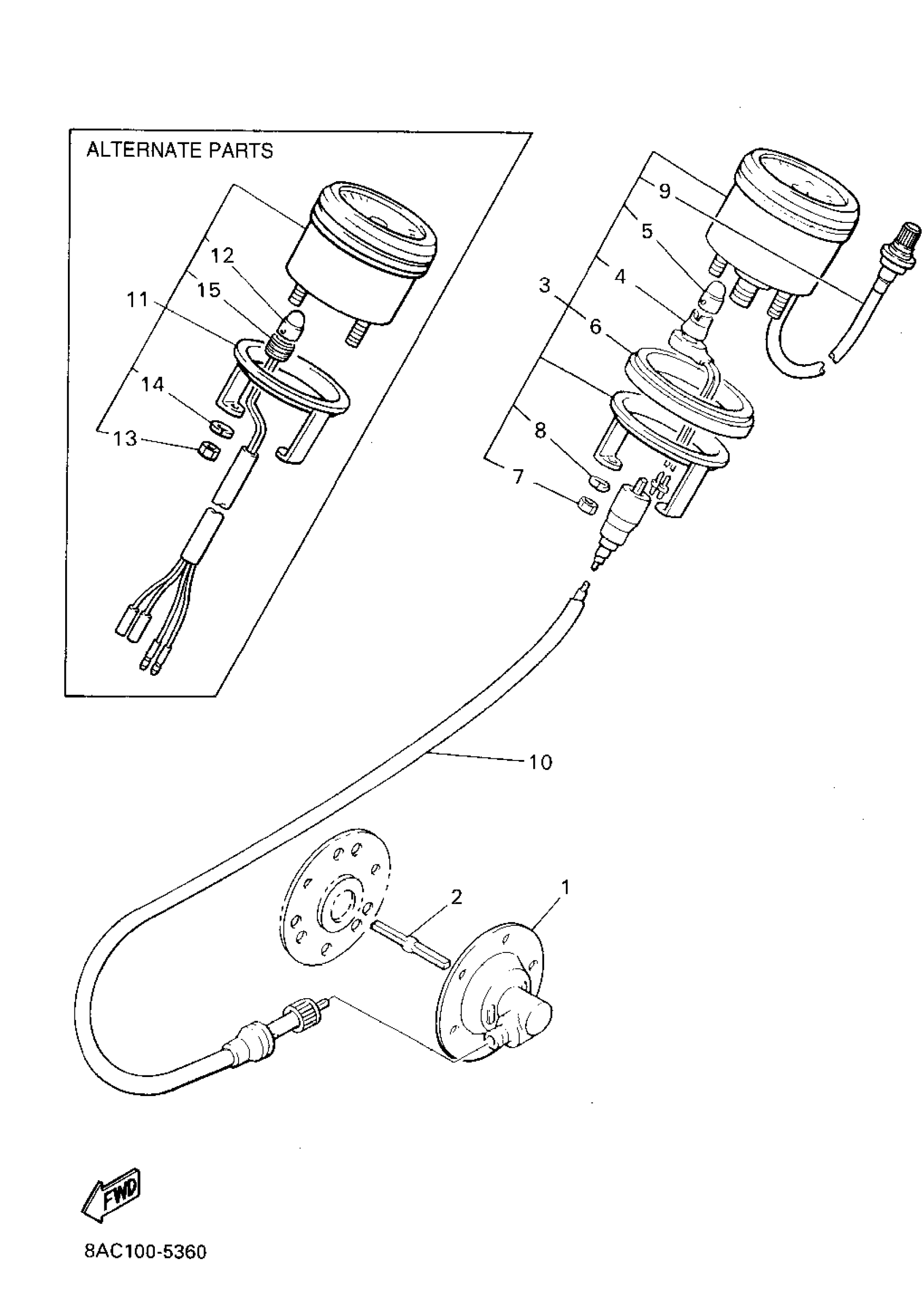

Yamaha VK540EV (VK540 II) 1995 METER Diagram

METER GEAR HOUSING COMP

JOINT

SPEEDOMETER ASSY

SOCKET CORD ASSY

BULB, MTR.12V3.4W

DAMPER, METER

NUT, HEXAGON

WASHER(3SX)

TRIP METER CABLE ASSY

TACHOMETER CABLE ASSY

TACHOMETER ASSY

BULB, MTR.12V3.4W

NUT, HEXAGON (663)

YBS67-5 WASHER, SPRING

SOCKET CORD ASSY
