1995 Yamaha VK540 Ii (VK540EV) Electrical 1 Diagram

← All diagrams

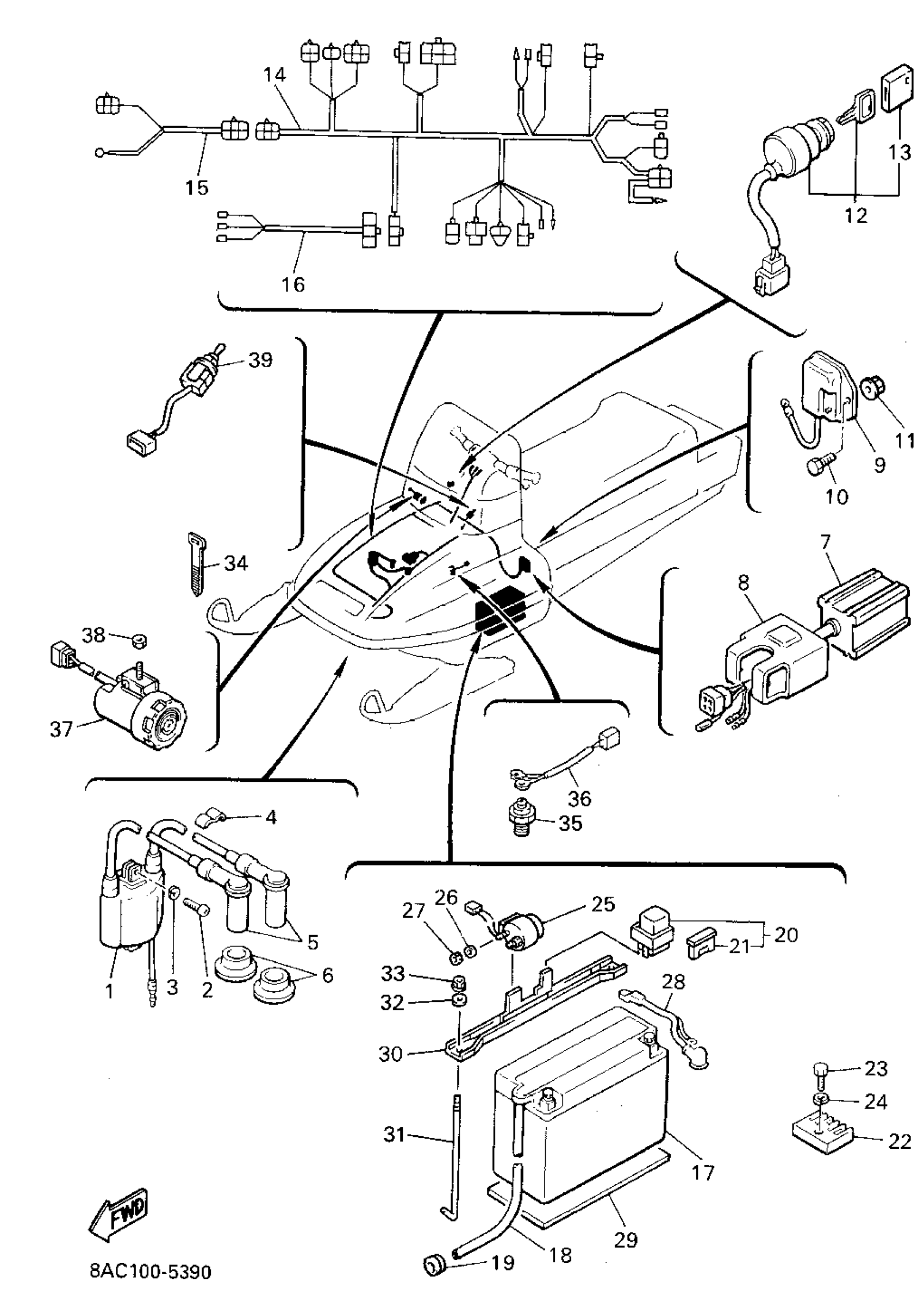

Find the part on the Electrical 1 diagram for your 1995 Yamaha VK540 Ii (VK540EV), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha VK540 Ii (VK540EV) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

8AB-82310-07-00

1
Out of stock

2

SCREW, PAN

98517-06020-00

1
Out of stock

3

WASHER, SPRING

92907-06100-00

1
Out of stock

4

CLAMP, CORD

861-82361-00-00

—
Out of stock

5

PLUG CAP ASSY

85G-82370-20-00

1
Out of stock

6

SEAL

8G5-82372-00-00

1
Out of stock

7

C.D.I. UNIT ASSY

8AU-85540-00-00

1
Out of stock

8

BAND

2A7-85546-00-00

—
Out of stock

9

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

—
Out of stock

10

BOLT(8CP)

97017-06014-00

1
Out of stock

11

NUT, NYLON

95707-06300-00

1
Out of stock

12

MAIN SWITCH ASSY

8K1-82510-21-00

—
Out of stock

13

CAP, KEY

526-82579-00-00

1
Out of stock

14

WIRE HARNESS ASSY

8AC-82590-00-00

—
Out of stock

15

WIRE, SUB LEAD

8AC-82509-00-00

1
Out of stock

16

CORD, TAIL LIGHT

8AC-84717-01-00

—
Out of stock

17

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

1
Out of stock

18

HOSE (L340)

90445-08684-00

—
Out of stock

19

GROMMET(3AA)

90480-12497-00

1
Out of stock

20

FUSE HOLDER ASSY

8BE-82150-00-00

—
Out of stock

21

FUSE (10A)

42X-82151-00-00

—
Out of stock

22

RECTIFIER ASSY (RXKING,RXS)

3HB-H1970-01-00

1
Out of stock

23

BOLT, HEXAGON

97017-06020-00

—
Out of stock

24

WASHER, SPRING

92907-06100-00

1
Out of stock

25

STARTER RELAY ASSY (MS5D-231)

50W-81940-10-00

—
Out of stock

26

WASHER, SPRING

92907-06100-00

1
Out of stock

27

NUT(6TA)

95317-06600-00

—
Out of stock

28

WIRE, PLUS LEAD

3LD-82115-00-00

1
Out of stock

29

SEAT, BATTERY

84N-82122-00-00

—
Out of stock

30

PLATE, BATTERY FITTING

8AC-82136-00-00

1
Out of stock

31

SCREW, FITTING

8Y7-82133-00-00

—
Out of stock

32

WASHER(6TA)

92907-06600-00

—
Out of stock

33

NUT, NYLON

95707-06300-00

1
Out of stock

34

BAND

341-26397-01-00

1
Out of stock

35

NEUTRAL SWITCH ASSY

4KD-82540-00-00

—
Out of stock

36

WIRE, SUB-LEAD

87L-82318-01-00

—
Out of stock

37

BUZZER

87L-83383-00-00

1
Out of stock

38

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

39

SWITCH

8JD-82917-00-00

—
Out of stock
