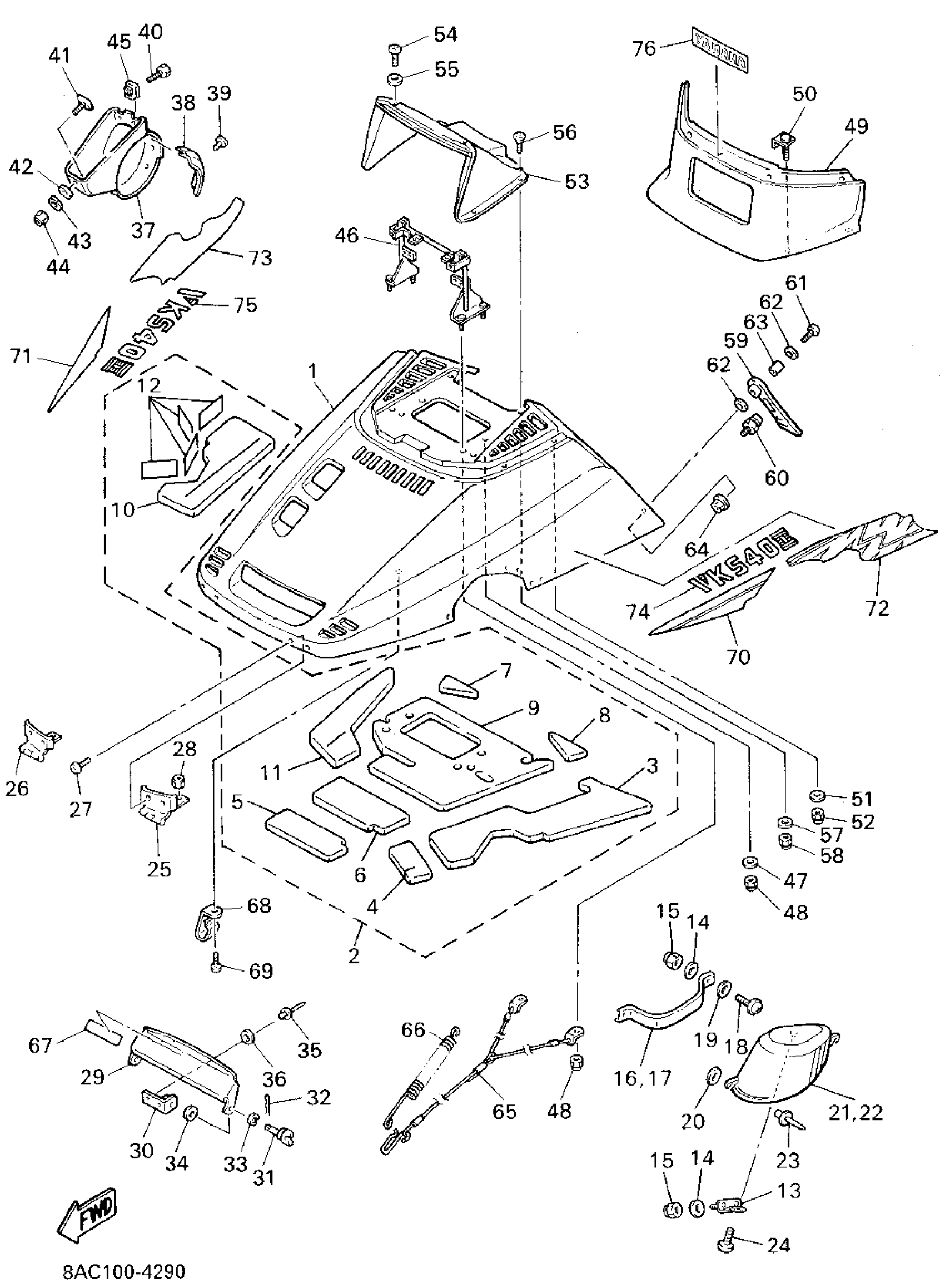

Yamaha VK540EU (VK540 II) 1994 SHROUD Diagram
#
1
SHROUD
8AT-77111-10-00
Unavailable
2
LINING SET
8AT-W7726-01-00
Unavailable
3
LINING, SHROUD 1
8AT-77261-00-00
Unavailable
4
LINING SHROUD 2
8AT-77262-00-00
Unavailable
5
LINING SHROUD 3
8AT-77263-00-00
Unavailable
6
LINING SHROUD 4
8AT-77264-00-00
Unavailable
7
LINING SHROUD 5
8AT-77265-00-00
Unavailable
8
LINING SHROUD 6
8AT-77266-00-00
Unavailable
9
LINING SHROUD 7
8AT-77267-00-00
Unavailable
10
LINING,SHROUD 8
8AT-77268-00-00
Unavailable
11
LINING,SHROUD 9
8AT-77269-00-00
Unavailable
12
TAPE 3
82M-7717G-01-00
$2.34
13
STAY 1
8AT-77125-00-00
Unavailable
14
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
15
NUT, NYLON
95707-06300-00
$3.50
16
PLATE, BACK UP 1
8AT-77153-00-00
Unavailable
17
PLATE, BACK UP 2
8AT-77154-00-00
Unavailable
18
SCREW PAN HEAD
98580-06020-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
Unavailable
21
HOOD 1
8AT-77121-00-00
Unavailable
22
HOOD 2
8AT-77122-00-00
Unavailable
23
RIVET, BLIND
90267-48018-00
Unavailable
24
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
25
HINGE ASSY
83R-77140-00-00
Unavailable
26
HINGE ASSY 2
83R-7714A-01-00
Unavailable
27
SCREW, BIND (705)
98980-06016-00
Unavailable
28
NUT, NYLON
95707-06300-00
$3.50
29
PLATE 1
83R-77185-00-00
Unavailable
30
STAY 1
83R-77125-00-00
Unavailable
31
BOLT, WING(8W1)
90122-05022-00
Unavailable
32
PIN, HAIR 6474123500
90468-10003-00
Unavailable
33
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
34
. WASHER, PLATE
90202-05088-00
Unavailable
35
RIVET, BLIND (8K2)
90267-48079-00
Unavailable
36
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
37
DUCT
83R-77194-00-00
Unavailable
38
BUSH, RUBBER 1
83R-77515-00-00
Unavailable
39
RIVET(81E)
90269-05055-00
Unavailable
40
SCREW, BINDING
98907-06014-00
Unavailable
41
PLATE 2
83R-77186-00-00
Unavailable
42
WASHER, PLATE
90201-06020-00
Unavailable
43
WASHER, SPRING
92995-06100-00
Unavailable
44
NUT, U FLANGE
95604-06200-00
Unavailable
45
NUT
83R-77144-00-00
Unavailable
46
SRAY, FAIRING
83R-77241-00-00
Unavailable
47
WASHER, PLATE
90201-06020-00
Unavailable
48
NUT, NYLON
95707-06300-00
$3.50
49
FAIRING
8AT-77231-10-00
Unavailable
50
BOLT, WIND SHIELD
83R-77212-00-00
Unavailable
51
WASHER, PLATE
90201-06020-00
Unavailable
52
NUT, NYLON
95707-06300-00
$3.50
53
COVER, HEADLIGHT
86V-77251-01-00
Unavailable
54
SCREW, BINDING
98907-05012-00
Unavailable
55
WASHER, PLATE (214-27417-00)
90201-06042-00
Unavailable
56
SCREW, FLAT
98707-05016-00
Unavailable
57
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
58
NUT, NYLON
95707-05300-00
Unavailable
59
BODY, LATCH 1
8V0-77171-00-00
Unavailable
60
HOLDER, LATCH
8V0-77175-00-00
Unavailable
61
SCREW, BINDING
98907-06025-00
Unavailable
62
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
63
COLLAR (420)
90387-06241-00
Unavailable
64
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
65
STOPPER, SHROUD
83R-77118-01-00
Unavailable
66
CLAMP,ROD
838-77159-00-00
Unavailable
67
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
67
LABEL, WARNING 2
8Y0-77762-70-00
Unavailable
68
CLAMP(83R)
90461-08113-00
Unavailable
69
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
70
EMBLEM 3
8AT-77353-10-00
Unavailable
71
EMBLEM 4
8AT-77354-10-00
Unavailable
72
EMBLEM 5
8AT-77355-10-00
Unavailable
73
EMBLEM 6
8AT-77356-10-00
Unavailable
74
EMBLEM 1
8AC-77141-00-00
Unavailable
75
EMBLEM 2
8AC-77142-00-00
Unavailable
76
EMBLEM, YAMAHA
99247-00080-00
Unavailable
