ELECTRICAL 1

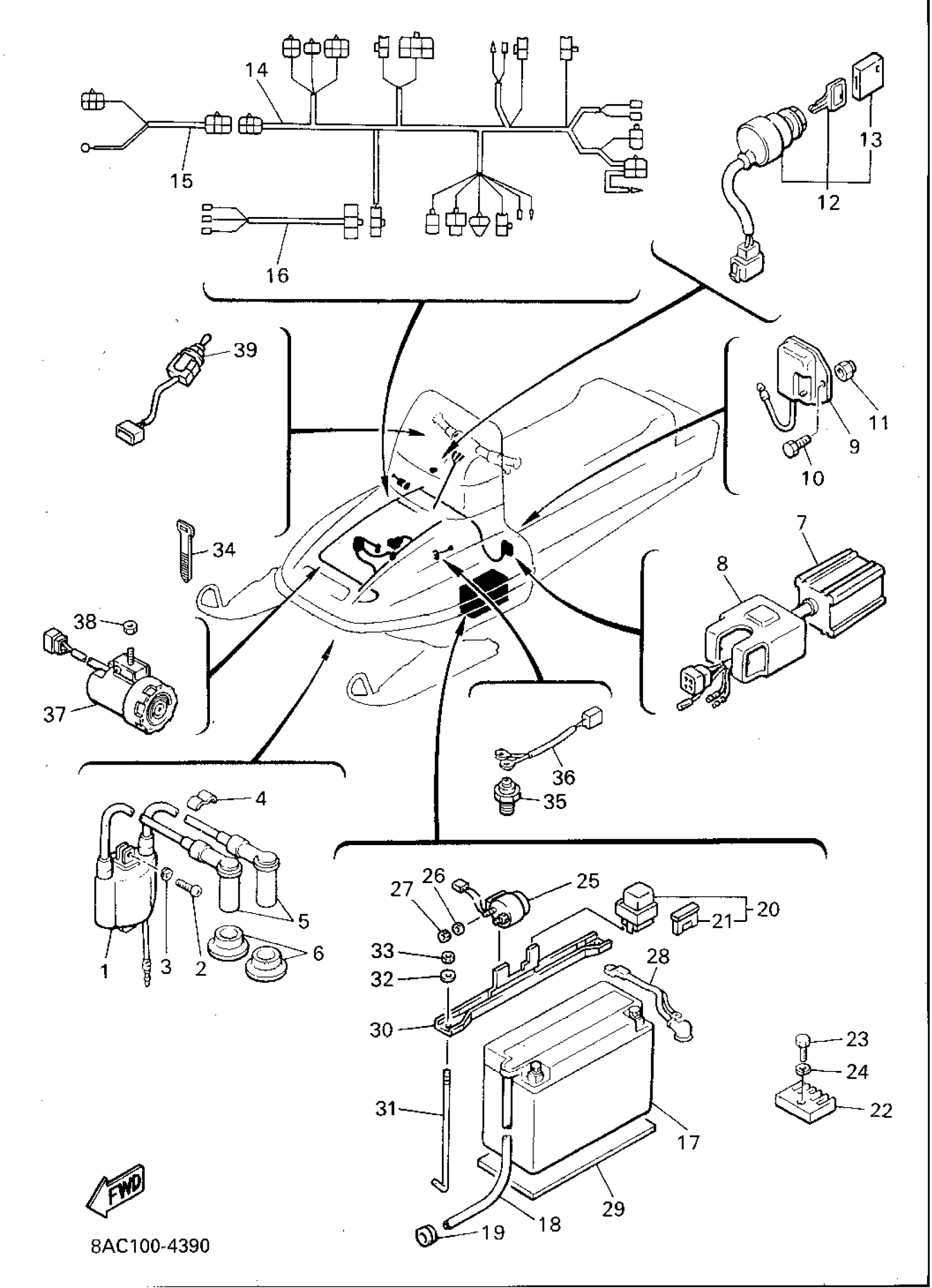

Yamaha VK540EU (VK540 II) 1994 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8AB-82310-07-00
$85.99
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
WASHER, SPRING
92995-06100-00
Unavailable
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
85G-82370-20-00
$34.99
6
SEAL
8G5-82372-00-00
$5.60
7
C.D.I. UNIT ASSY
8AU-85540-00-00
$201.99
8
BAND
2A7-85546-00-00
Unavailable
9
VOLTAGE REGULATOR ASSY
82M-81910-A0-00
Unavailable
10
BOLT, HEXAGON DEEP RECESS
97D95-06014-00
Unavailable
11
NUT, NYLON
95707-06300-00
$3.50
12
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
13
CAP, KEY
526-82579-00-00
$7.99
14
WIRE HARNESS ASSY
8AC-82590-00-00
Unavailable
15
WIRE, SUB LEAD
8AC-82509-00-00
$51.99
16
CORD, TAIL LIGHT
8AC-84717-01-00
Unavailable
17
YB16ALA2 YUASA BATTERY
YB1-6ALA2-00-00
Unavailable
18
HOSE (L340)
90445-08684-00
Unavailable
19
GROMMET(3AA)
90480-12497-00
Unavailable
20
FUSE HOLDER ASSY
8BE-82150-00-00
Unavailable
21
FUSE (10A)
42X-82151-00-00
Unavailable
22
RECTIFIER ASSY (RXKING,RXS)
3HB-H1970-01-00
Unavailable
23
BOLT, HEXAGON
97017-06020-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
STARTER RELAY ASSY (MS5D-231)
50W-81940-10-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
NUT, U FLANGE
95604-06200-00
Unavailable
28
WIRE, PLUS LEAD
3LD-82115-00-00
Unavailable
29
SEAT, BATTERY
84N-82122-00-00
Unavailable
30
PLATE, BATTERY FITTING
8AC-82136-00-00
Unavailable
31
SCREW, FITTING
8Y7-82133-00-00
Unavailable
32
WASHER, PLAIN (646)
92990-06600-00
Unavailable
33
NUT, NYLON
95707-06300-00
$3.50
34
BAND
341-26397-01-00
Unavailable
35
NEUTRAL SWITCH ASSY
136-82540-03-00
Unavailable
36
WIRE, SUB-LEAD
87L-82318-01-00
Unavailable
37
BUZZER
87L-83383-00-00
Unavailable
38
NUT, U FLANGE
95604-06200-00
Unavailable
39
SWITCH
8JD-82917-00-00
Unavailable
