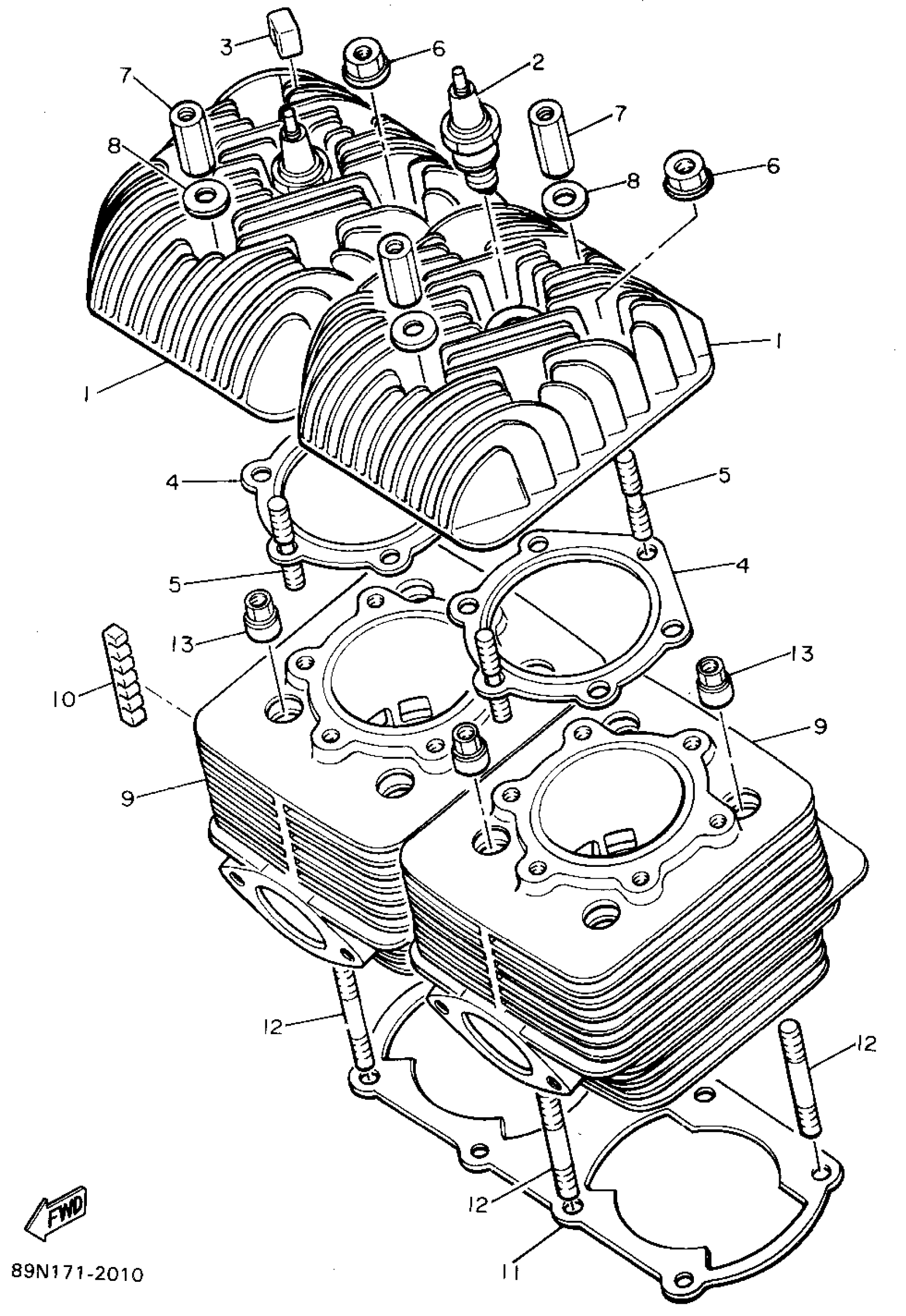

Yamaha VK540EU (VK540 II) 1994 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8R6-11111-00-00

Unavailable

2

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

$4.03

3

ABSORBER 1

83R-11161-00-00

$2.64

4

GASKET, CYLINDER HEAD 1

83R-11181-00-00

$29.49

5

BOLT STUD 363111790000

90116-08104-00

$13.41

6

NUT, FLANGE

95704-08500-00

$5.76

7

NUT (8H8)

90179-08269-00

$10.39

8

WASHER, PLATE (397)

90201-08100-00

$5.75

9

CYLINDER 1

83R-11311-00-00

$821.42

10

ABSORBER 2

83R-11162-00-00

$3.02

11

GASKET, CYLINDER

89N-11351-00-00

$7.68

12

BOLT, STUD (8H8)

90116-08302-00

$8.51

13

NUT (8H8)

90179-08268-00

$9.09
