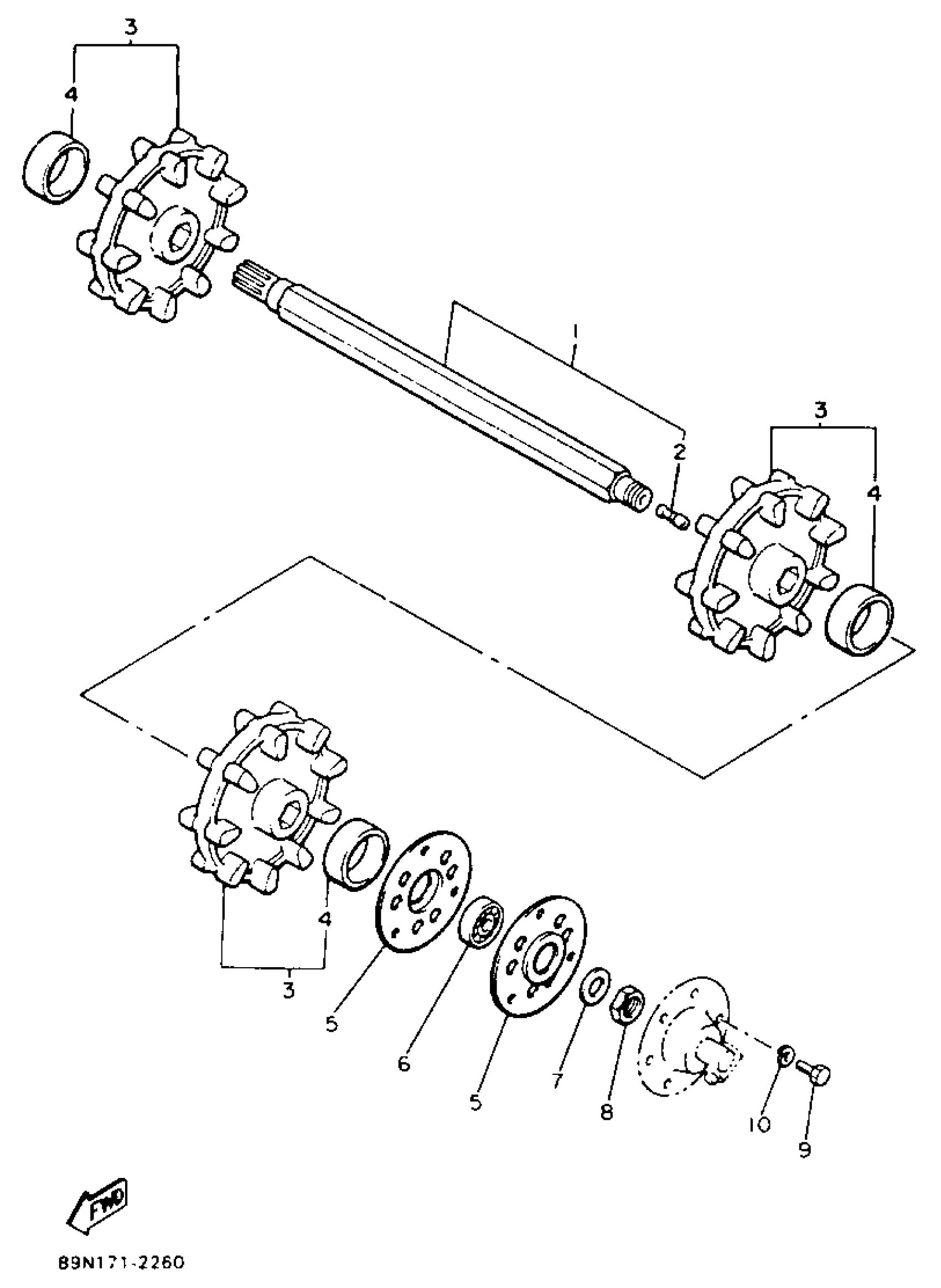

Yamaha VK540ET (VK540 II) 1993 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

83R-W4751-10-00

Unavailable

2

CONNECTOR

8K4-47577-00-00

$15.47

3

WHEEL, SPROCKET 1

83R-W4753-01-00

$121.48

4

COLLAR(83R)

90387-514Y2-00

$11.06

5

HOUSING, FRONT AXLE

83R-47551-00-00

$33.94

6

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$34.68

7

WASHER, CONICAL SPRING(83R)

90208-25045-00

$12.01

8

NUT(83R)

90170-25367-00

$10.21

9

BOLT, HEXAGON

97017-08016-00

$5.79

10

WASHER(JN5)

92907-08100-00

$5.59
