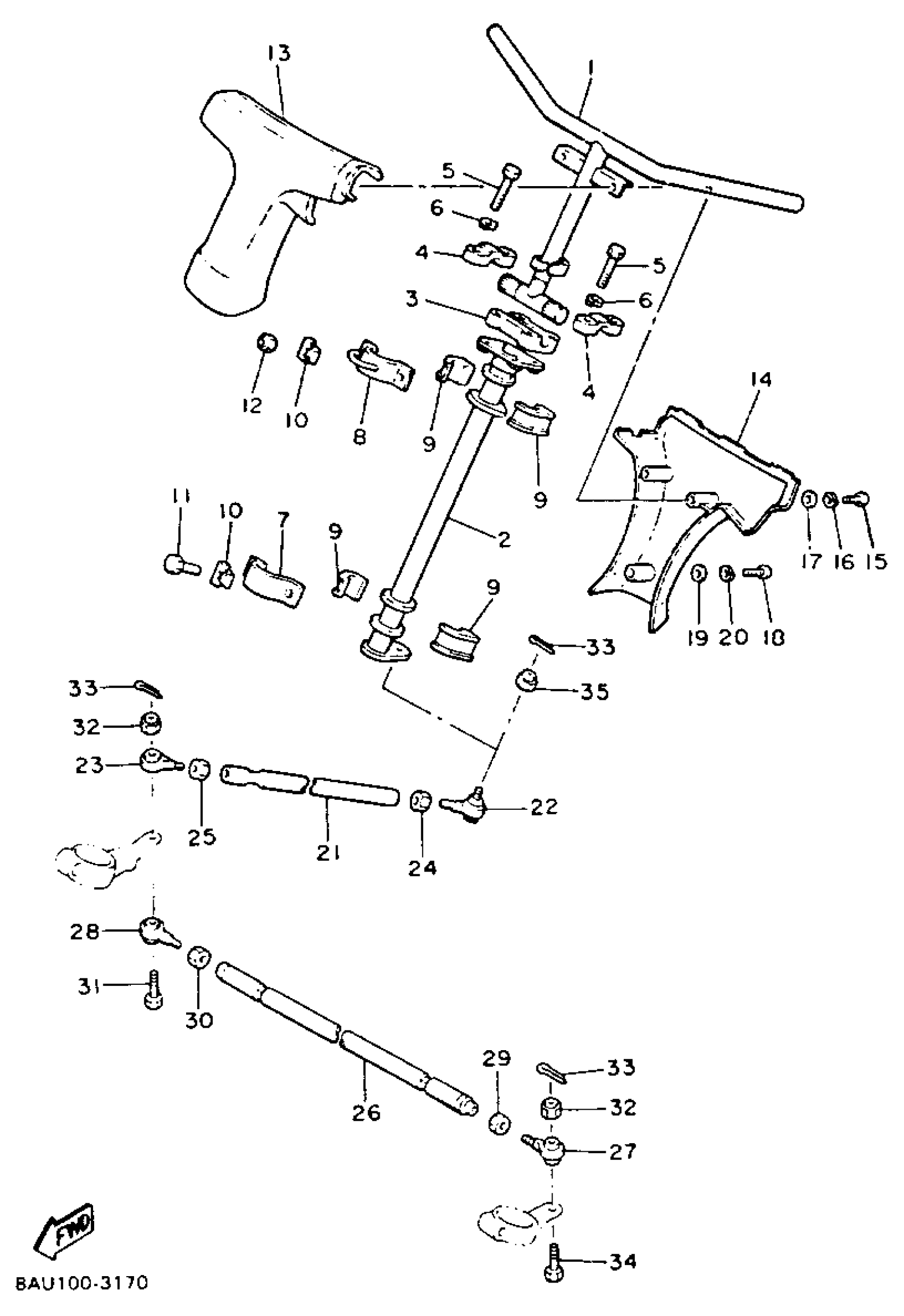

Yamaha VK540ET (VK540 II) 1993 STEERING Diagram
#
1
COLUMN, STEERING
8AU-23811-00-00
Unavailable
2
COLUMN, STEERING 2
8AT-23813-01-00
Unavailable
3
HANDLE, HOLDER
164-23441-01-98
Unavailable
4
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
5
BOLT, HEXAGON
97017-08055-00
$9.49
6
WASHER(JN5)
92907-08100-00
$8.49
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
HOLDER, BEARING
84M-23872-00-00
Unavailable
9
BEARING, STEERING
8F3-23812-00-00
Unavailable
10
WASHER, LOCK 1
8AC-23894-01-00
$4.78
11
BOLT, HEXAGON
97017-08016-00
$8.49
12
NUT, NYLON
95717-08300-00
$2.70
13
PAD, STEERING
8W9-23815-00-00
Unavailable
14
PAD,STEERING
88E-23817-00-00
Unavailable
15
SCREW, PAN HEAD
98517-05030-00
$10.49
16
WASHER(3SX)
92907-05100-00
Unavailable
17
WASHER(1RW)
92907-05600-00
Unavailable
18
GASKET, EXHAUST
98507-05008-00
Unavailable
19
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
20
WASHER(3SX)
92907-05100-00
Unavailable
21
ROD, STEERING RELAY
8AT-23821-00-00
Unavailable
22
JOINT, UNIVERSAL 1
86X-23841-00-00
Unavailable
23
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
24
NUT (682)
95380-10700-00
Unavailable
25
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
26
ROD, TIE
8AT-23831-00-00
Unavailable
27
JOINT, UNIVERSAL 2
87S-23845-01-00
Unavailable
28
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
29
NUT (682)
95380-10700-00
Unavailable
30
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
31
BOLT, WITH HOLE
90102-10078-00
Unavailable
32
NUT, NYLON
95707-10300-00
Unavailable
33
PIN, COTTER
91490-25020-00
Unavailable
34
BOLT, WITH HOLE
90102-10031-00
Unavailable
35
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
