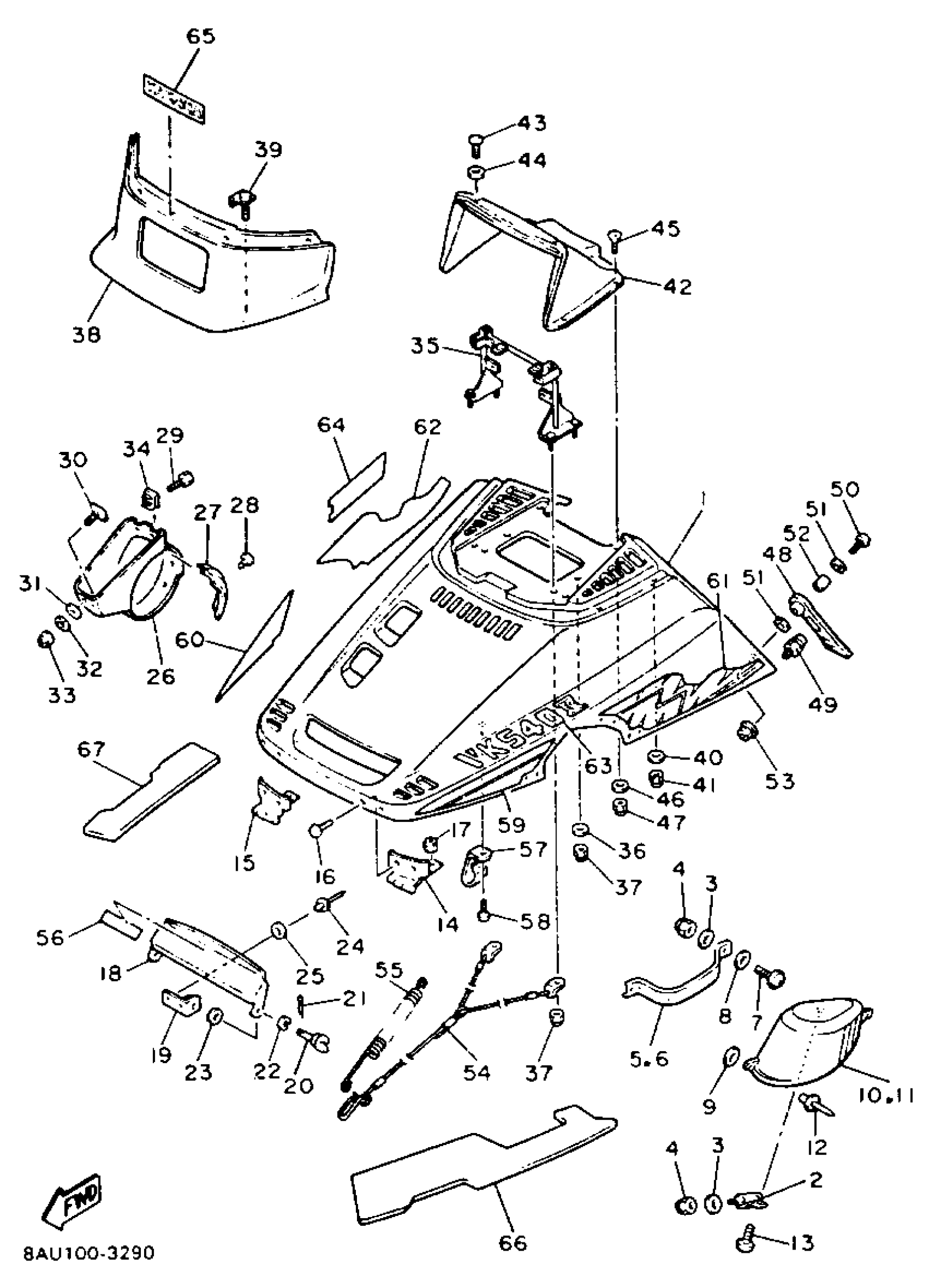

Yamaha VK540ET (VK540 II) 1993 SHROUD Diagram
#
1
SHROUD ASY
8AT-77111-00-00
Unavailable
2
STAY 1
8AT-77125-00-00
Unavailable
3
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
4
NUT, NYLON
95707-06300-00
$3.50
5
PLATE, BACK UP 1
8AT-77153-00-00
Unavailable
6
PLATE, BACK UP 2
8AT-77154-00-00
Unavailable
7
SCREW PAN HEAD
98580-06020-00
$8.49
8
WASHER, SPRING
92995-06100-00
Unavailable
9
WASHER, PLAIN (646)
92990-06600-00
$2.80
10
HOOD 1
8AT-77121-00-00
Unavailable
11
HOOD 2
8AT-77122-00-00
$141.99
12
RIVET, BLIND
90267-48018-00
$9.49
13
SCREW, TAPPING(4MV)
97707-50016-00
$2.19
14
HINGE ASSY
83R-77140-00-00
Unavailable
15
HINGE ASSY 2
83R-7714A-01-00
Unavailable
16
SCREW, BIND (705)
98980-06016-00
Unavailable
17
NUT, NYLON
95707-06300-00
$3.50
18
PLATE 1
83R-77185-00-00
Unavailable
19
STAY 1
83R-77125-00-00
Unavailable
20
BOLT, WING(8W1)
90122-05022-00
Unavailable
21
PIN, HAIR 6474123500
90468-10003-00
Unavailable
22
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
23
. WASHER, PLATE
90202-05088-00
Unavailable
24
RIVET, BLIND (8K2)
90267-48079-00
Unavailable
25
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
26
DUCT
83R-77194-00-00
Unavailable
27
BUSH, RUBBER 1
83R-77515-00-00
Unavailable
28
RIVET(81E)
90269-05055-00
Unavailable
29
SCREW, BINDING
98907-06014-00
Unavailable
30
PLATE 2
83R-77186-00-00
Unavailable
31
WASHER, PLATE
90201-06020-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
NUT, HEXAGON
95380-06600-00
Unavailable
34
NUT
83R-77144-00-00
Unavailable
35
SRAY, FAIRING
83R-77241-00-00
Unavailable
36
WASHER, PLATE
90201-06020-00
Unavailable
37
NUT, NYLON
95707-06300-00
$3.50
38
FAIRING 1
8AT-77231-00-00
Unavailable
39
BOLT, WIND SHIELD
83R-77212-00-00
Unavailable
40
WASHER, PLATE
90201-06020-00
Unavailable
41
NUT, NYLON
95707-06300-00
$3.50
42
COVER, HEADLIGHT
86V-77251-01-00
Unavailable
43
SCREW, BINDING
98907-05012-00
Unavailable
44
WASHER, PLATE (214-27417-00)
90201-06042-00
Unavailable
45
SCREW, FLAT
98707-05016-00
Unavailable
46
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
47
NUT, NYLON
95707-05300-00
Unavailable
48
BODY, LATCH 1
8V0-77171-00-00
Unavailable
49
HOLDER, LATCH
8V0-77175-00-00
Unavailable
50
SCREW, BINDING
98907-06025-00
Unavailable
51
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
52
COLLAR (420)
90387-06241-00
Unavailable
53
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
54
STOPPER, SHROUD
83R-77118-01-00
Unavailable
55
CLAMP,ROD
838-77159-00-00
Unavailable
56
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
57
CLAMP(83R)
90461-08113-00
Unavailable
58
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
59
EMBLEM 3
8AT-77353-00-00
Unavailable
60
EMBLEM 4
8AT-77354-00-00
Unavailable
61
EMBLEM 5
8AT-77355-00-00
Unavailable
62
EMBLEM 6
8AT-77356-00-00
Unavailable
63
EMBLEM 1
8AU-77141-00-00
Unavailable
64
EMBLEM 2
8AU-77142-00-00
Unavailable
65
EMBLEM, YAMAHA
99246-00080-00
Unavailable
66
LINING, SHROUD 1
8AT-77261-00-00
Unavailable
67
LINING,SHROUD 8
8AT-77268-00-00
Unavailable
