Description

Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-12-00

Unavailable

2

SEC SLIDING SHEAVE

8AV-17670-12-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SCREW, BINDING

98907-06016-00

$9.49

5

BUSH, BIMETAL FORMED (90384-90081-00)

90380-90117-00

Unavailable

6

SEAT, SECONDARY SPRING

8AT-17684-01-00

Unavailable

7

WASHER, CLAW(88R)

90214-29060-00

$7.49

8

CIRCLIP(86F)

93440-34170-00

$8.49

9

SECONDARY SHAFT COMP.

88N-17680-02-00

$303.99

10

WASHER, PLATE (8V2)

90201-251G8-00

$8.49

11

BOLT, FLANGE

95817-10020-00

$8.49

12

WASHER, PLATE(42X)

90201-105H3-00

$7.49

13

HOUSING, BEARING

88N-47631-00-00

$117.99

14

BEARING(83R)

93306-20582-00

$58.99

15

CIRCLIP(26H)

99009-52500-00

$12.49

16

WASHER, PLATE(J38)

90201-257J2-00

Unavailable

17

CIRCLIP (256)

93410-25017-00

Unavailable

18

BOLT, HEXAGON

97017-08025-00

Unavailable

19

WASHER(JN5)

92907-08100-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

Unavailable

21

SPRING, TORSION(84M)

90508-50746-00

Unavailable

22

WASHER, PLATE (8U9)

90201-345G2-00

Unavailable

23

CLAMP (706)

90465-06100-00

Unavailable

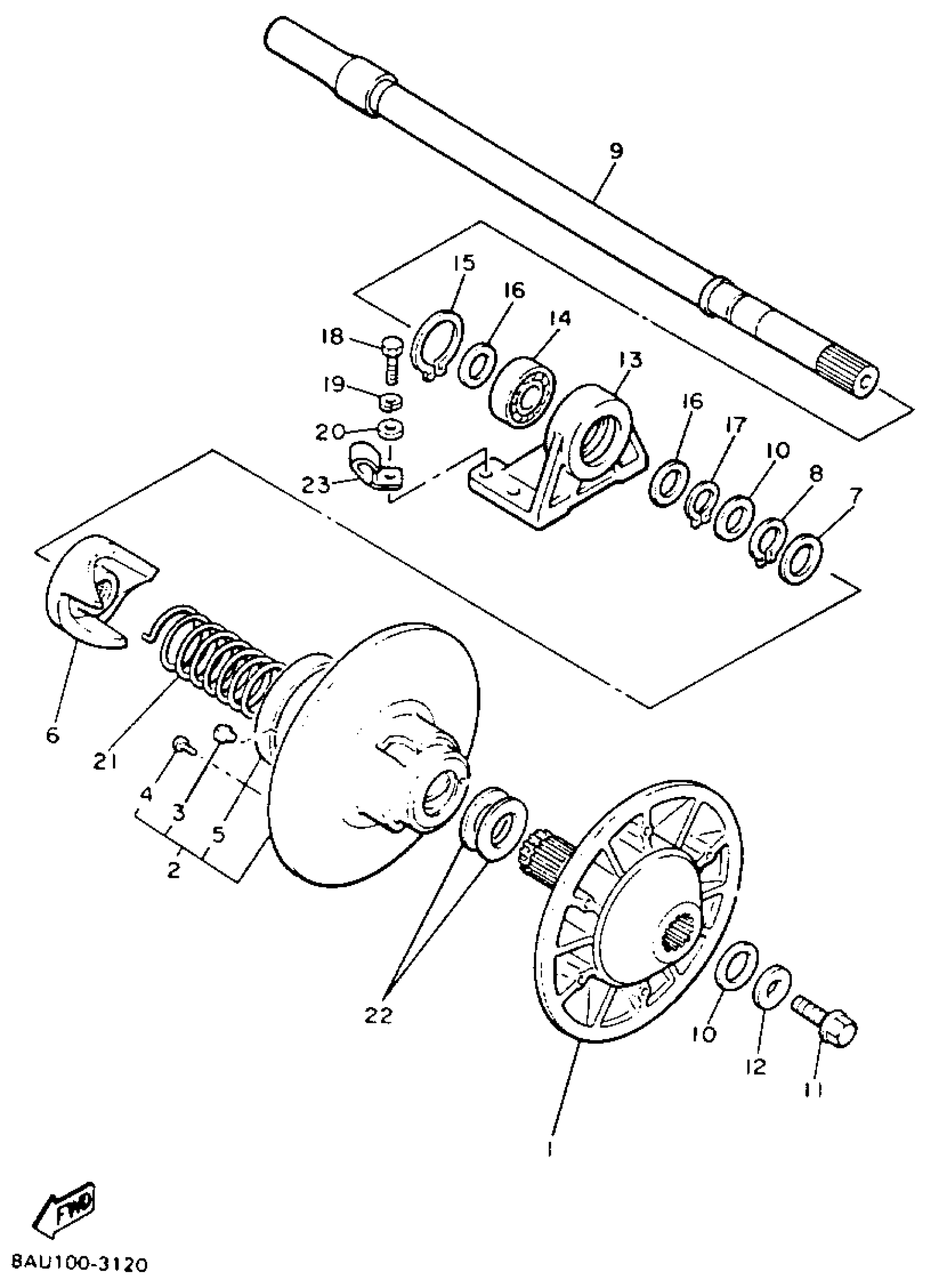

Yamaha VK540ET (VK540 II) 1993 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SEC SLIDING SHEAVE

SHOE RAMP

SCREW, BINDING

BUSH, BIMETAL FORMED (90384-90081-00)

SEAT, SECONDARY SPRING

WASHER, CLAW(88R)

CIRCLIP(86F)

SECONDARY SHAFT COMP.

WASHER, PLATE (8V2)

BOLT, FLANGE

WASHER, PLATE(42X)

HOUSING, BEARING

BEARING(83R)

CIRCLIP(26H)

WASHER, PLATE(J38)

CIRCLIP (256)

BOLT, HEXAGON

WASHER(JN5)

.. WASHER, PLATE

SPRING, TORSION(84M)

WASHER, PLATE (8U9)

CLAMP (706)
