Description

Price

1

ROTOR ASSY

8AT-85550-01-00

Unavailable

2

BASE ASSY

8AT-85560-10-00

$401.99

3

COIL, CHARGE

81L-85520-M0-00

Unavailable

4

COIL, LIGHTING 1

81L-81313-M0-00

$66.99

5

COIL, LIGHTING 2

81L-81314-M0-00

Unavailable

6

PULSER ASSY

8R4-85580-M0-00

Unavailable

7

SCREW, WITH WASHER(81E)

90159-05130-00

$1.11

8

SCREW, WITH WASHER(81E)

90159-05129-00

$2.34

9

SCREW, PAN HEAD

98511-04012-00

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

12

COLLAR (1M1)

90387-06553-00

$9.49

13

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

14

SCREW, BIND (705)

98980-06016-00

$8.49

15

WASHER, PLATE 6261117600

90201-06043-00

$7.49

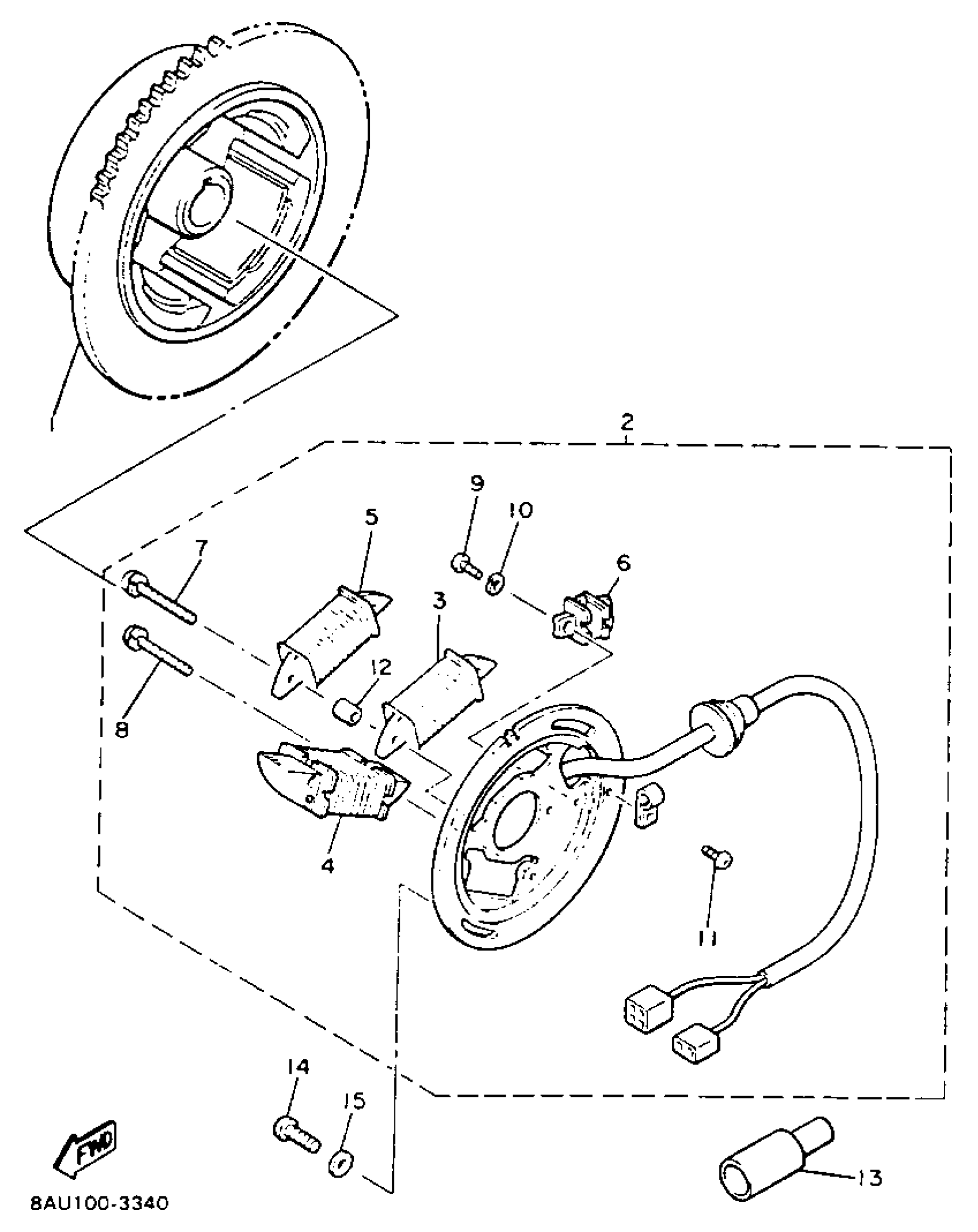

Yamaha VK540ET (VK540 II) 1993 GENERATOR Diagram

ROTOR ASSY

BASE ASSY

COIL, CHARGE

COIL, LIGHTING 1

COIL, LIGHTING 2

PULSER ASSY

SCREW, WITH WASHER(81E)

SCREW, WITH WASHER(81E)

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD (713)

COLLAR (1M1)

COVER, CONNECTER

SCREW, BIND (705)

WASHER, PLATE 6261117600
