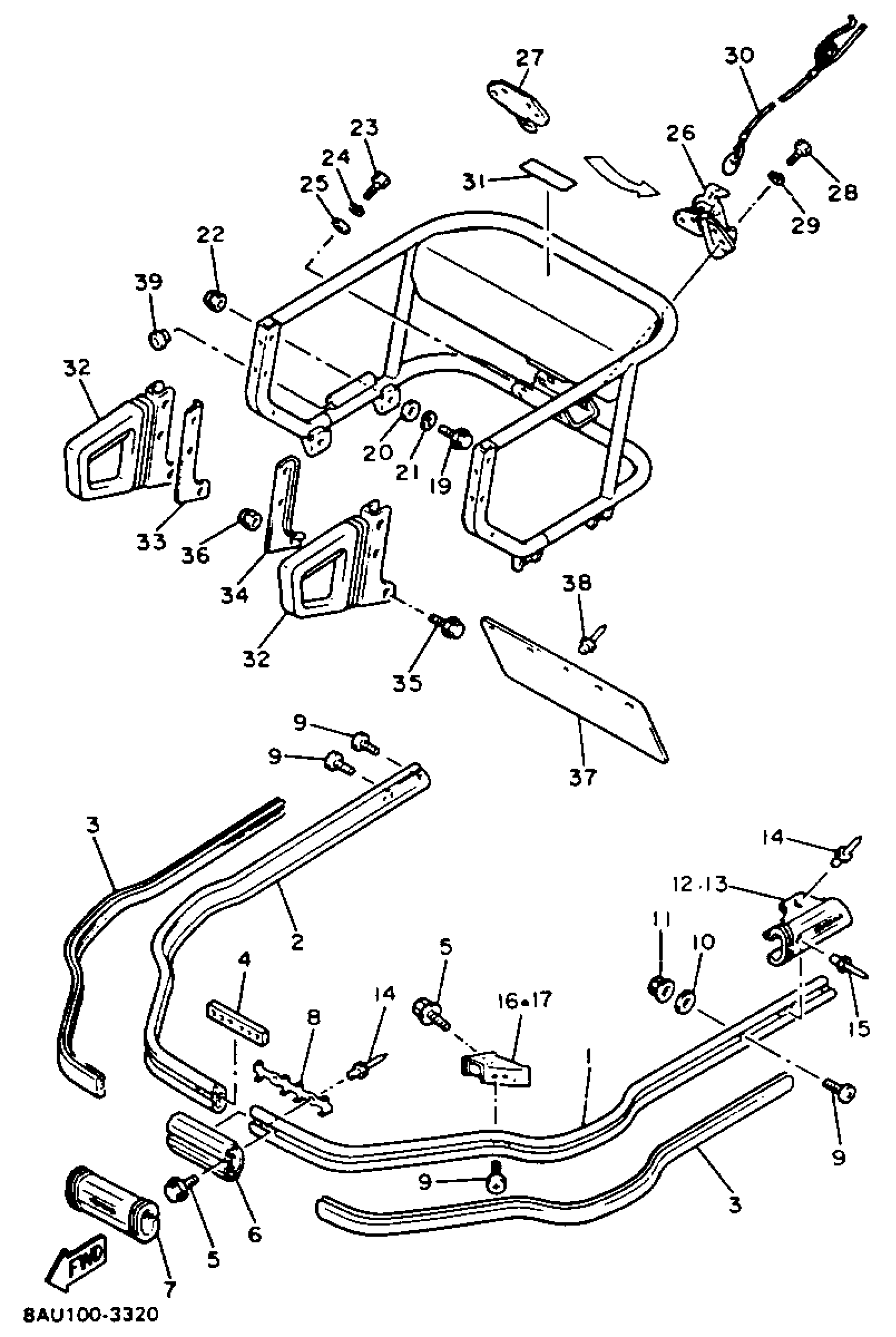

Yamaha VK540ET (VK540 II) 1993 BUMPER Diagram
#
1
BUMPER, FRONT 1
8AT-77511-01-00
Unavailable
2
BUMPER, FRONT 2
8AT-77512-01-00
Unavailable
3
BUSH, RUBBER 2
8AT-77516-00-00
$44.99
4
SPACER, BUMPER
8AT-77529-00-00
Unavailable
5
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
6
PROTECTOR 2
8AT-77552-00-00
Unavailable
7
PROTECTOR 1
8AT-77551-01-00
Unavailable
8
PROTECTOR 3
8AT-77553-00-00
Unavailable
9
BOLT, BUTTON
92017-08020-00
$7.49
10
WASHER, PLAIN
92990-08200-00
Unavailable
11
NUT(6L2)
95333-08600-00
$2.49
12
STOPPER, 1
8AT-77521-00-00
$83.99
13
STOPPER 2
8AT-77522-00-00
$83.99
14
RIVET, BLIND
90267-48018-00
$9.49
15
RIVET, BLIND (J45)
90267-48149-00
$1.64
16
END, BUMPER
8AT-77523-00-00
Unavailable
17
END, BUMPER
8AT-77524-00-00
Unavailable
18
REAR BUMPER COMP.
8AT-77540-01-00
Unavailable
19
BOLT, FLANGE
95817-08014-00
Unavailable
20
WASHER(6TC)
92907-08200-00
Unavailable
21
WASHER(JN5)
92907-08100-00
Unavailable
22
NUT, CAP
95307-08800-00
Unavailable
23
BOLT, HEXAGON
97017-08020-00
Unavailable
24
WASHER(JN5)
92907-08100-00
Unavailable
25
WASHER(6TA)
92907-08600-00
Unavailable
26
BRACKET, HITCH 1
86D-77591-00-00
Unavailable
27
BRACKET, HITCH 2
84R-77592-00-00
Unavailable
28
BOLT, HEXAGON
97017-08020-00
Unavailable
29
WASHER(JN5)
92907-08100-00
Unavailable
30
PIN, HINGE
8U1-77157-00-00
Unavailable
31
EMBLEM
3GX-24897-00-00
Unavailable
32
GRIP, ASSIST 1
8X0-77571-00-00
Unavailable
33
WASHER 1
8X0-77525-00-00
Unavailable
34
WASHER 2
8X0-77526-00-00
Unavailable
35
BOLT, FLANGE
95817-08040-00
Unavailable
36
NUT, CROWN(82U)
90176-08063-00
Unavailable
37
FLAP
83R-77595-00-00
Unavailable
38
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
39
GROMMET (8L1)
90480-15268-00
Unavailable
