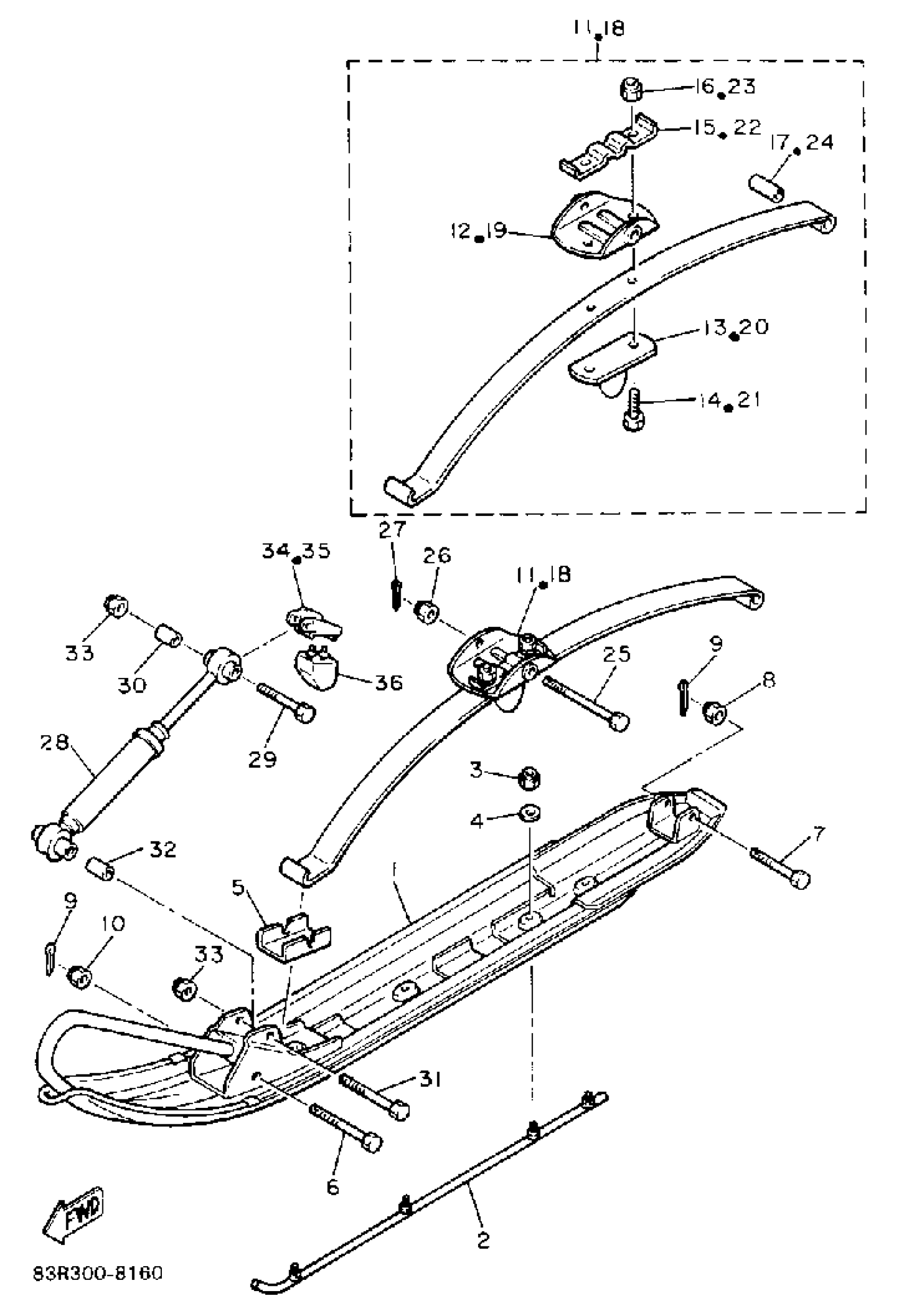

Yamaha VK540ER (VK540) 1991 SKI Diagram
#
1
SKI 1
83R-23710-00-00
Unavailable
2
SKI RUNNER,1
VMX-23731-01-XX
Unavailable
3
NUT, U
95617-08100-00
$9.49
4
.. WASHER, PLATE
92990-08600-00
Unavailable
5
PLATE, WEAR 1
8K4-23735-00-00
Unavailable
6
BOLT PIN HOLE HEXAGON(8E6)
90102-08028-00
$10.49
7
BOLT, PIN HOLE (8A7)
90102-08027-00
$8.49
8
NUT, NYLON
95717-08300-00
$2.70
9
PIN, COTTER
91490-20025-00
$1.99
10
NUT, U
95617-08100-00
$9.49
11
SPRING ASSEMBLY 1
83R-23760-00-00
Unavailable
12
SADDLE
8G6-23766-00-00
Unavailable
13
. SEAT, SPRING 1
878-23768-00-00
Unavailable
14
. BOLT
90109-105E7-00
Unavailable
15
WASHER, ROCK (8J5)
90215-10155-00
$13.99
16
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
17
COLLAR
90387-08478-00
Unavailable
18
SPRING ASSEMBLY 2
83R-23770-00-00
Unavailable
19
SADDLE
8G6-23766-00-00
Unavailable
20
. SEAT, SPRING 1
878-23768-00-00
Unavailable
21
. BOLT
90109-105E7-00
Unavailable
22
WASHER, ROCK (8J5)
90215-10155-00
$13.99
23
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
24
COLLAR
90387-08478-00
Unavailable
25
BOLT, PIN HOLE (8G6)
90102-12030-00
Unavailable
26
NUT, CASTLE
95307-12900-00
Unavailable
27
PIN, COTTER
91490-30030-00
Unavailable
28
SHOCK ABSORBER ASSEMBLYASSY
83R-23350-00-00
Unavailable
29
BOLT, HEXAGON
97017-08060-00
Unavailable
30
COLLAR (878)
90387-08262-00
Unavailable
31
BOLT, HEXAGON
97017-08075-00
Unavailable
32
COLLAR (864)
90387-08224-00
Unavailable
33
NUT, NYLON
95717-08300-00
$2.70
34
WASHER, LOCK
80M-23857-01-00
Unavailable
35
HOLDER 2
80M-23867-01-00
Unavailable
36
SPACER
83R-23858-00-00
Unavailable
