Description

Price

1

SECONDARY FIXED SHEAVE COMP.

89N-17660-00-00

Unavailable

2

SEC.SLIDING SHEAVE

80R-17670-01-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SEAT, SEC SPRING

99999-02363-00

Unavailable

5

WASHER, PLATE

90201-34684-00

Unavailable

6

CIRCLIP(86F)

93440-34170-00

$8.49

7

SECONDARY SHAFT COMP.

88N-17680-02-00

$303.99

8

WASHER, PLATE (8V2)

90201-251G8-00

$8.49

9

BOLT, FLANGE

95817-10020-00

$8.49

10

WASHER, PLATE(42X)

90201-105H3-00

$7.49

11

HOUSING, BEARING

88N-47631-00-00

$117.99

12

BEARING(83R)

93306-20582-00

$58.99

13

CIRCLIP(26H)

99009-52500-00

$12.49

14

WASHER, PLATE(J38)

90201-257J2-00

$3.50

15

CIRCLIP (256)

93410-25017-00

$3.76

16

BOLT, HEXAGON

97017-08025-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

SPRING, TORSION(84M)

90508-50746-00

Unavailable

20

WASHER, PLATE (8U9)

90201-345G2-00

Unavailable

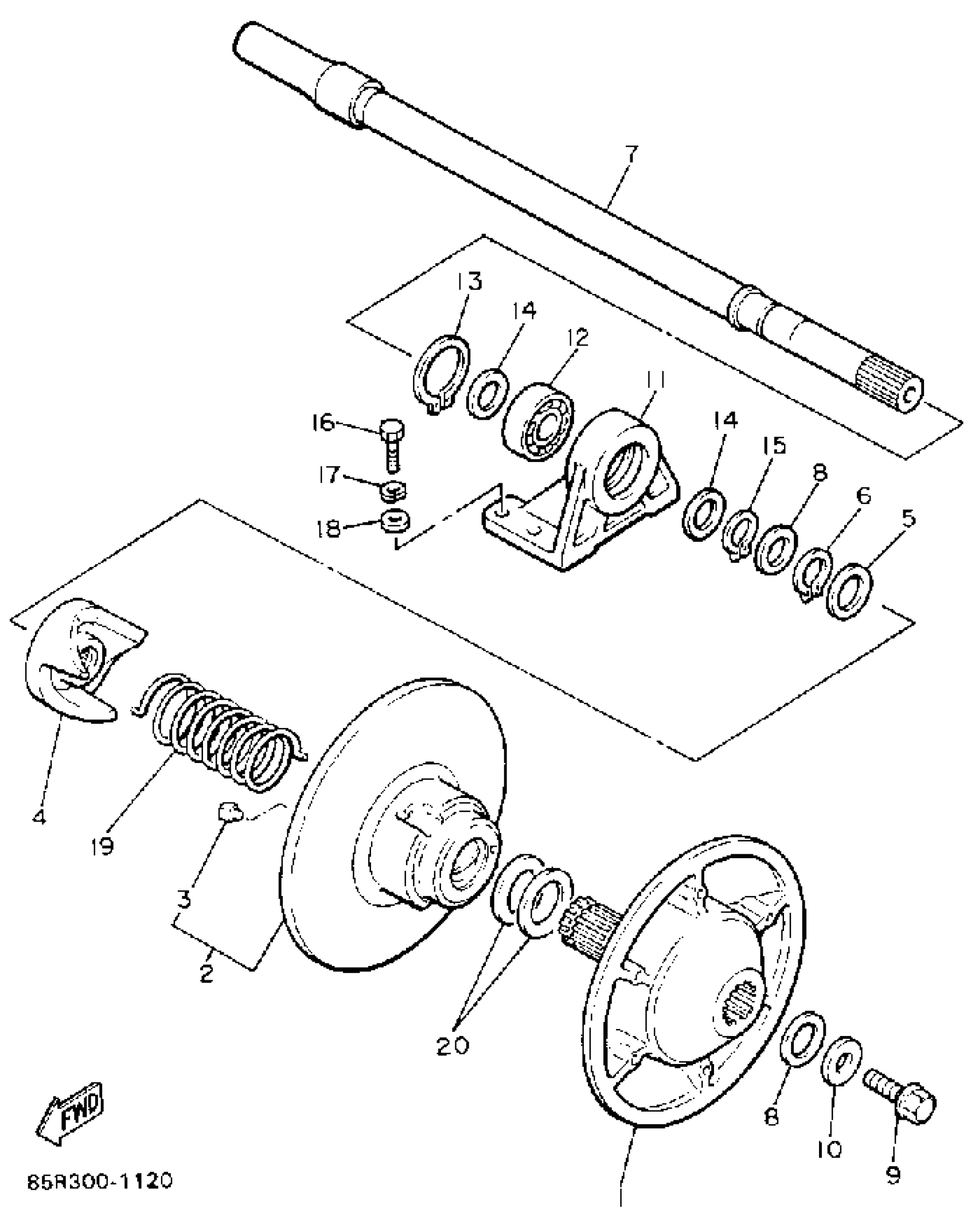

Yamaha VK540ER (VK540) 1991 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SEC.SLIDING SHEAVE

SHOE RAMP

SEAT, SEC SPRING

WASHER, PLATE

CIRCLIP(86F)

SECONDARY SHAFT COMP.

WASHER, PLATE (8V2)

BOLT, FLANGE

WASHER, PLATE(42X)

HOUSING, BEARING

BEARING(83R)

CIRCLIP(26H)

WASHER, PLATE(J38)

CIRCLIP (256)

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

SPRING, TORSION(84M)

WASHER, PLATE (8U9)
