Description

Price

1

TANK, OIL

83R-21751-00-00

Unavailable

2

CLAMP(51Y)

90465-08277-00

Unavailable

3

SCREW, BIND(1JK)

98980-06010-00

$9.49

4

BODY, CAP

8LU-21771-00-00

$31.99

5

GASKET, TANK (867)

90430-31003-00

$10.49

6

PIPE, JOINT

801-24376-00-00

Unavailable

7

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

8

CLIP (7K7)

90467-11044-00

$8.49

9

CLIP (8A1)

90467-09026-00

$3.28

10

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

11

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

12

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

13

HOSE

91A30-07036-00

Unavailable

14

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

COLLAR(50M)

90387-087L0-00

Unavailable

17

BOLT, FLANGE

95817-06016-00

Unavailable

18

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

19

HOSE

90446-09282-00

Unavailable

20

BAND

80L-26397-00-00

Unavailable

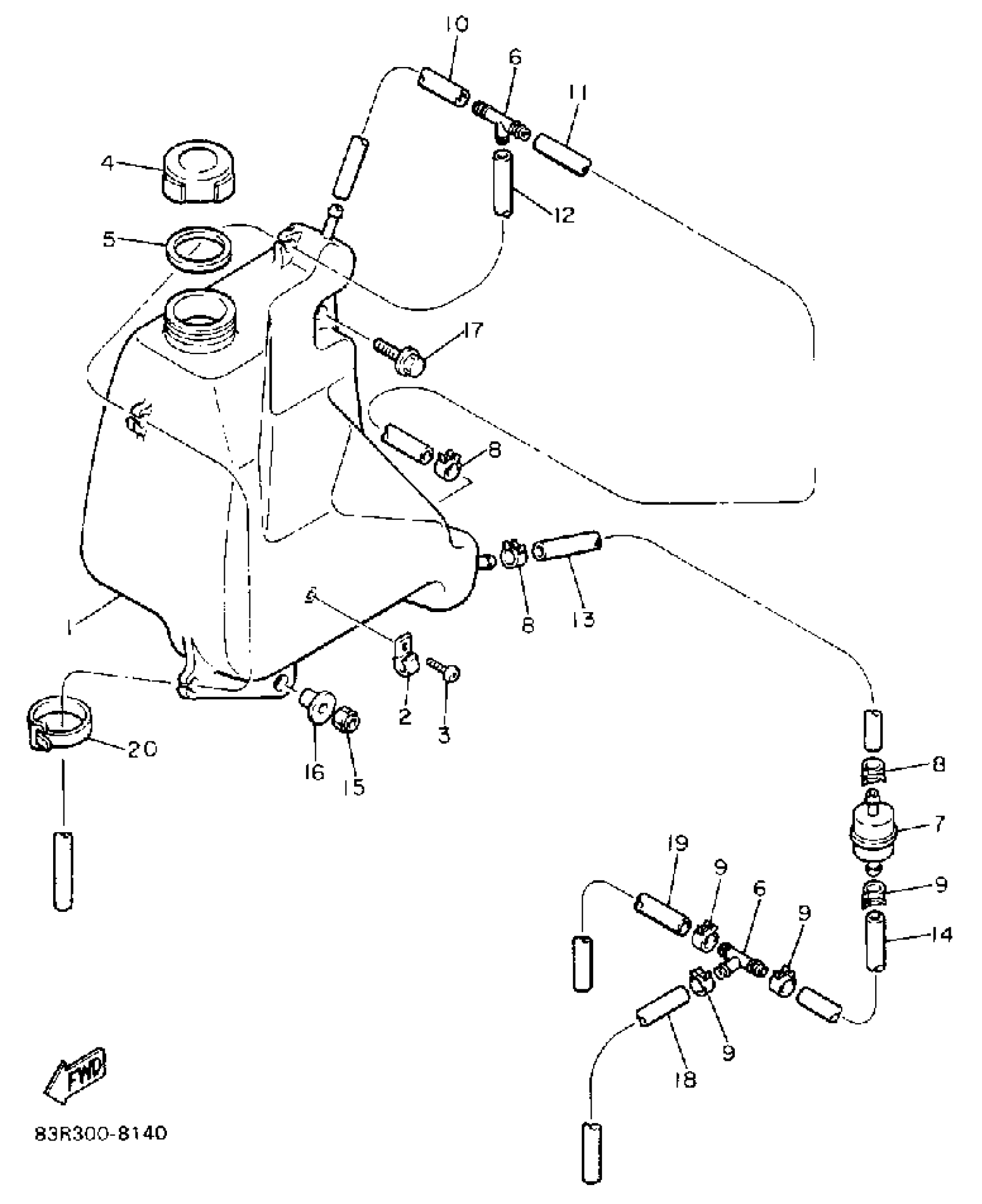

Yamaha VK540ER (VK540) 1991 OIL TANK Diagram

TANK, OIL

CLAMP(51Y)

SCREW, BIND(1JK)

BODY, CAP

GASKET, TANK (867)

PIPE, JOINT

HOUSING STRAINER ASSY

CLIP (7K7)

CLIP (8A1)

TUBE, FLEXIBLE VINYL(8AK)

TUBE, FLEXIBLE VINYL(8AT)

TUBE, FLEXIBLE VINYL(8AK)

HOSE

TUBE, FLEXIBLE VINYL(8AK)

NUT, SELF-LOCKING

COLLAR(50M)

BOLT, FLANGE

TUBE,FLEXIBLE VINYL(85R)

HOSE

BAND
