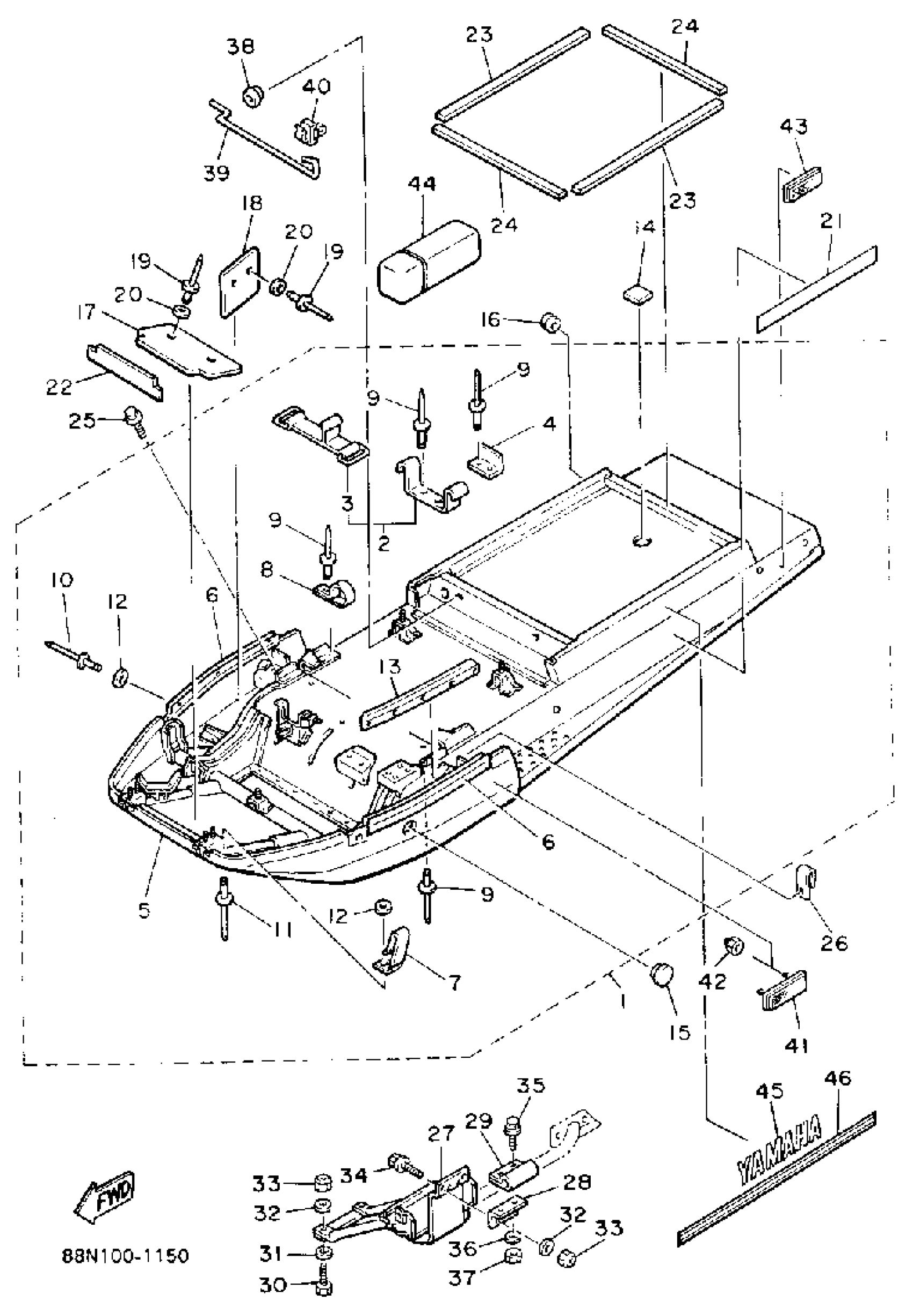

Yamaha VK540ER (VK540) 1991 FRAME Diagram
#
1
FRAME
86V-21910-00-00
Unavailable
2
BRACKET, TOOL BOX FITTING
81E-21945-00-00
$20.99
3
BAND, BATTERY
4J2-82131-01-00
$29.99
4
BRACKET, TOOL BOX FITTING
83R-21955-00-00
$8.99
5
PANEL,SUB FRAME 1
86V-21912-00-00
Unavailable
6
. TRIM 1
83R-2196T-00-00
Unavailable
7
. CLAMP
90463-06059-00
Unavailable
8
CLAMP
90462-10236-00
$10.49
9
RIVET, BLIND
90267-48060-00
$8.49
10
RIVET, BLIND (8M6)
90267-48051-00
$1.49
11
RIVET, BLIND
90267-48018-00
$9.49
12
WASHER, PLATE
90201-04027-00
$3.02
13
. PLATE, BACK-UP 1
86V-77153-00-00
Unavailable
14
COVER 3
8CR-2198J-00-00
Unavailable
15
PLUG (8H8)
90338-44093-00
$15.99
16
GROMMET (438)
90480-15061-00
Unavailable
17
SHIELD, NOISE
83R-2199F-00-00
Unavailable
18
SHIELD, NOISE 2
83R-2199J-00-00
Unavailable
19
RIVET, BLIND
90267-48018-00
$9.49
20
WASHER, PLATE
90201-04027-00
$3.02
21
EMBLEM 4
86V-77354-00-00
Unavailable
22
TAPE 1
82M-7717E-00-00
Unavailable
23
TAPE 1
83R-7717E-00-00
Unavailable
24
TAPE 1
83R-7717E-00-00
Unavailable
25
BOLT, FLANGE
95817-06012-00
Unavailable
26
CLAMP(4MX)
90465-06376-00
Unavailable
27
BRACKET, BATTERY
83R-2199G-00-00
Unavailable
28
BRACKET, BATTERY
83R-82128-00-00
Unavailable
29
BRACKET, BATTERY 2
83R-82158-00-00
Unavailable
30
BOLT, HEXAGON
97017-06025-00
Unavailable
31
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
32
WASHER, PLATE (4F4)
90201-063A5-00
Unavailable
33
NUT, NYLON
95707-06300-00
Unavailable
34
BOLT, FLANGE
95817-06020-00
Unavailable
35
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
36
WASHER, PLATE (397)
90201-08100-00
Unavailable
37
NUT, NYLON
95717-08300-00
Unavailable
38
GROMMET (22F)
90480-10348-00
Unavailable
39
STAY, SEAT
85R-2471A-00-00
Unavailable
40
HOLDER, 2
85R-2639F-00-00
Unavailable
41
FRONT REFLECTOR ASSY
86R-85110-00-00
Unavailable
42
NUT, S/L FLANGE
95607-05200-00
Unavailable
43
REAR REFLECTOR ASSY
81G-85130-00-00
Unavailable
44
TOOL KIT
85L-28100-01-00
Unavailable
45
EMBLEM, YAMAHA
99246-00240-00
Unavailable
46
STRIPE 1
86V-77281-00-00
Unavailable
