- VK540ER (VK540) 1991
ELECTRICAL 1

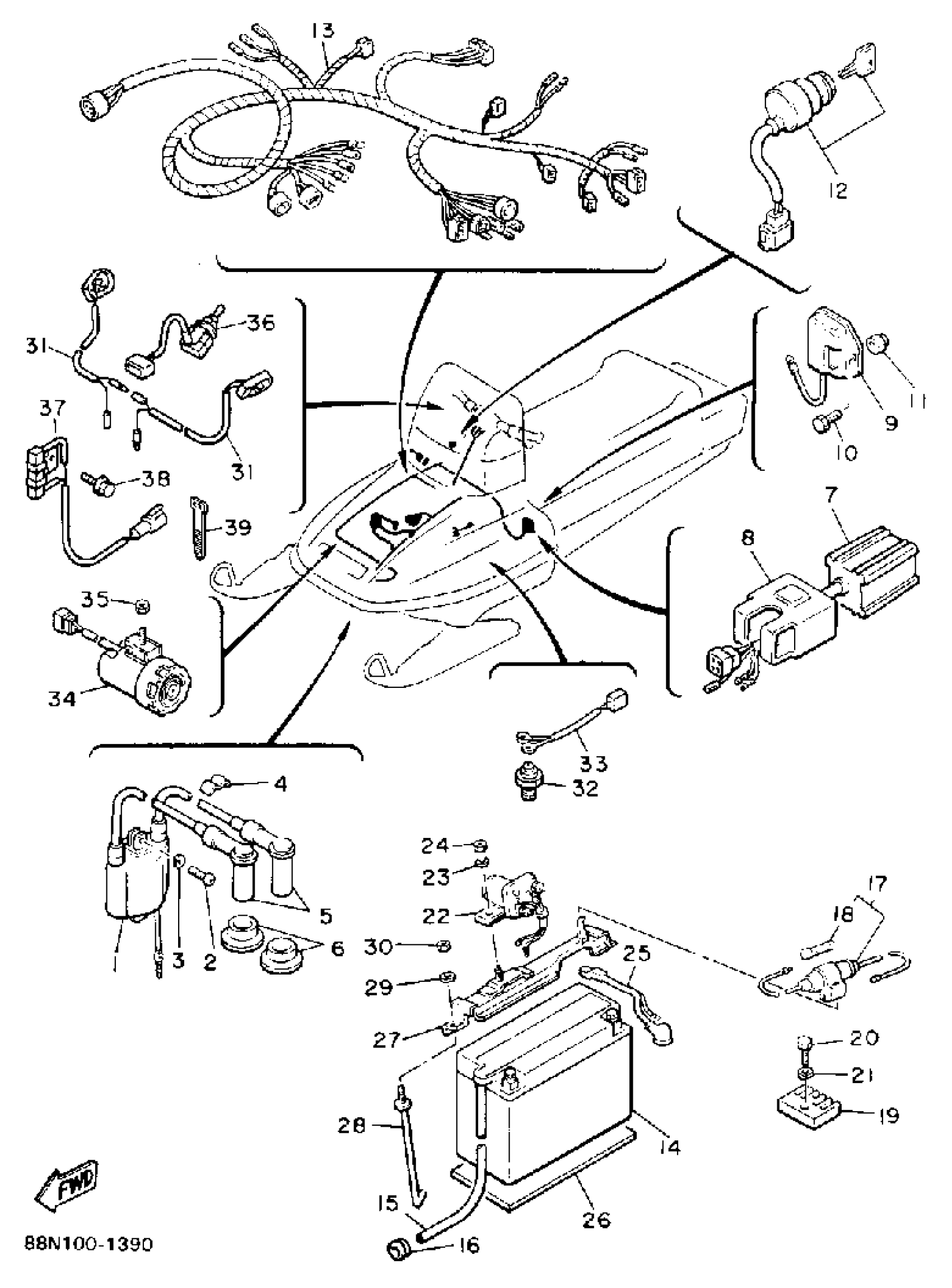

Yamaha VK540ER (VK540) 1991 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
85T-82310-06-00
$79.99
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
WASHER, SPRING
92995-06100-00
Unavailable
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
85G-82370-20-00
$34.99
6
SEAL
8G5-82372-00-00
$5.60
7
CDI UNIT ASSEMBLY
87R-85540-00-00
Unavailable
8
BAND
2A7-85546-00-00
Unavailable
9
VOLTAGE REGULATOR ASSY
82M-81910-A0-00
Unavailable
10
BOLT, HEXAGON DEEP RECESS
97D95-06014-00
Unavailable
11
NUT, NYLON
95707-06300-00
$3.50
12
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
13
WIRE HARNESS ASSEMBLY
88N-82590-00-00
Unavailable
14
YB16ALA2 YUASA BATTERY
YB1-6ALA2-00-00
Unavailable
14
YB16ALA2 YUASA BATTERY
YB1-6ALA2-00-00
Unavailable
15
HOSE (L1500)
90445-084J0-00
Unavailable
16
GROMMET(3AA)
90480-12497-00
Unavailable
17
FUSE HOLDER ASSY
1E6-82150-00-00
Unavailable
18
FUSE (10A)
1E6-82151-00-00
Unavailable
19
RECTIFIER ASSY (RXKING,RXS)
3HB-H1970-01-00
Unavailable
20
BOLT, HEXAGON
97017-06020-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
STARTER RELAY ASSY (MS5D-231)
50W-81940-10-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
NUT, HEXAGON
95380-06600-00
Unavailable
25
WIRE, PLUS LEAD
3LD-82115-00-00
Unavailable
26
SEAT, BATTERY
86V-82122-00-00
Unavailable
27
PLATE BATTERYFITTING
83R-82136-00-00
Unavailable
28
SCREW, FITTING
8K1-82133-00-00
Unavailable
29
WASHER, PLAIN (646)
92990-06600-00
Unavailable
30
NUT, NYLON
95707-06300-00
$3.50
31
WIRE, SUB-LEAD
80X-82318-00-00
Unavailable
32
NEUTRAL SWITCH ASSY
136-82540-03-00
Unavailable
33
WIRE, SUB-LEAD
87L-82318-01-00
Unavailable
34
BUZZER
87L-83383-00-00
Unavailable
35
NUT, U FLANGE
95604-06200-00
Unavailable
36
SWITCH
88H-82917-00-00
Unavailable
37
RESISTOR ASSEMBLY
88T-85370-00-00
Unavailable
38
BOLT, FLANGE
95817-06012-00
Unavailable
39
BAND
341-26397-01-00
Unavailable
