AIR CLEANER

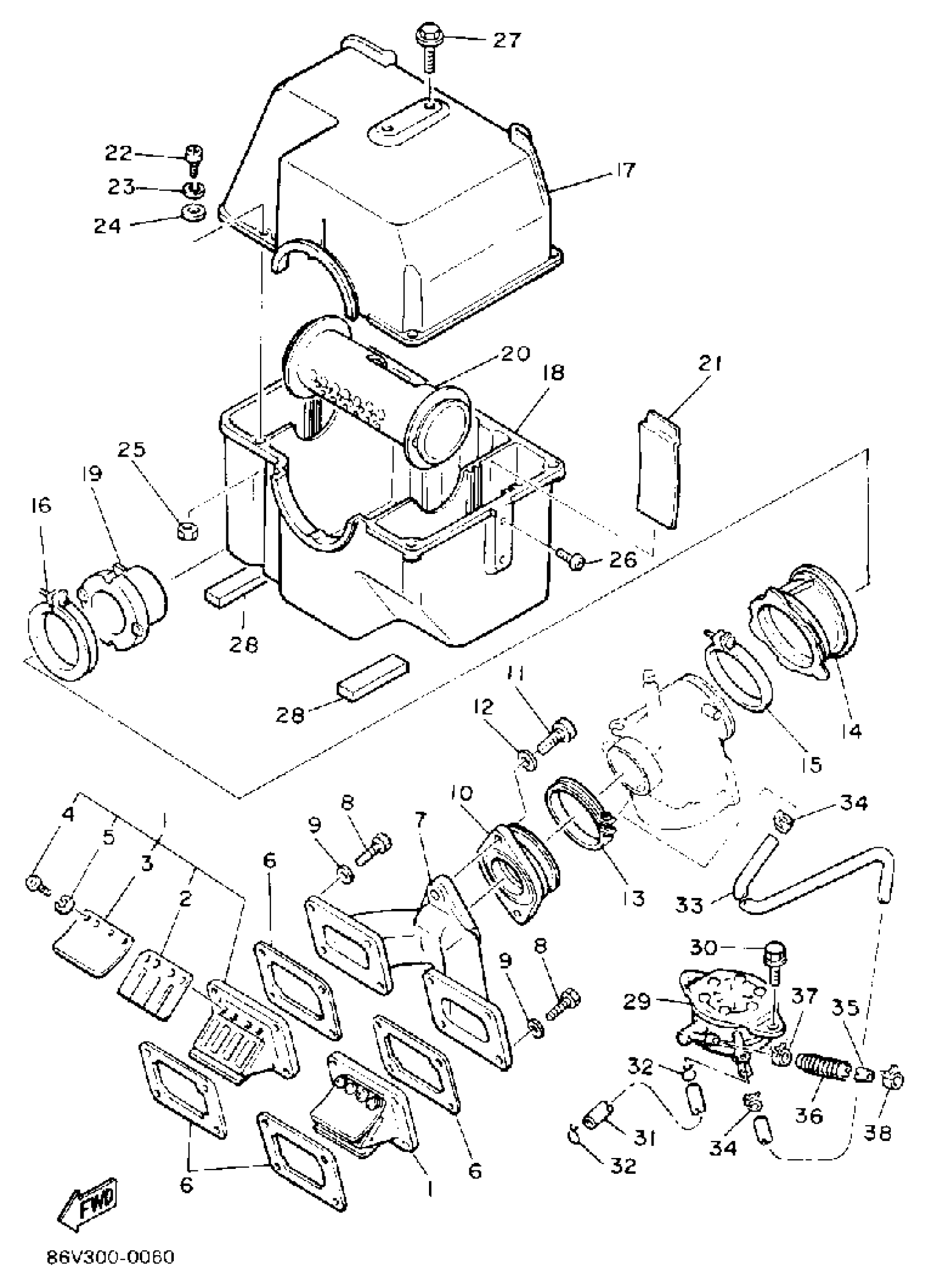

Yamaha VK540ER (VK540) 1991 AIR CLEANER Diagram
#
1
REED VALVE ASSY
8AT-13610-00-00
$165.99
2
REED, VALVE
8AT-13613-00-00
$33.99
3
STOPPER REED VALVE
8H8-13616-00-00
$4.77
4
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
5
WASHER, SPRING
92990-03100-00
$8.49
6
GASKET, MANIFOLD
8Y7-13556-01-00
$9.49
7
JOINT, CARBURETOR
83R-13565-00-00
Unavailable
8
BOLT, HEXAGON
97017-06025-00
$4.24
9
WASHER, PLAIN (646)
92990-06600-00
$2.80
10
MANIFOLD
8G8-13555-01-00
$114.99
11
BOLT, HEXAGON
97017-08025-00
$10.49
12
.. WASHER, PLATE
92990-08600-00
Unavailable
13
BAND
86M-13575-00-00
$19.49
14
JOINT, AIR CLEANER 1
83R-14453-00-00
$45.99
15
CLAMP, HOSE (29L)
90460-68230-00
$16.99
16
CLAMP,HOSE
90450-99056-00
Unavailable
17
SILENCER
8H8-14431-00-00
Unavailable
18
SILENCER
8H8-14441-00-00
Unavailable
19
PIPE
83R-14465-00-00
Unavailable
20
PIPE, BALANCE 2
8H8-14466-00-00
Unavailable
21
PLATE
8H8-14477-00-00
Unavailable
22
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
23
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
24
WASHER, PLAIN (646)
92990-05600-00
Unavailable
25
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
26
SCREW PAN HEAD
98580-06010-00
Unavailable
27
BOLT, FLANGE
95817-06012-00
Unavailable
28
DAMPER 1
83R-14425-00-00
Unavailable
29
FUEL PUMP ASSEMBLY
83R-24410-01-00
Unavailable
30
BOLT, FLANGE
95812-06010-00
Unavailable
31
HOSE (L400)
90445-116K9-00
Unavailable
32
CLIP
90467-090A2-00
Unavailable
33
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
34
CLIP (8A1)
90467-09026-00
Unavailable
35
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
36
PROTECTOR, PIPE
84M-24327-00-00
Unavailable
37
CLIP (7K7)
90467-11044-00
Unavailable
38
CLIP (8J7)
90467-11009-00
Unavailable
