TRACK SUSPENSION 2

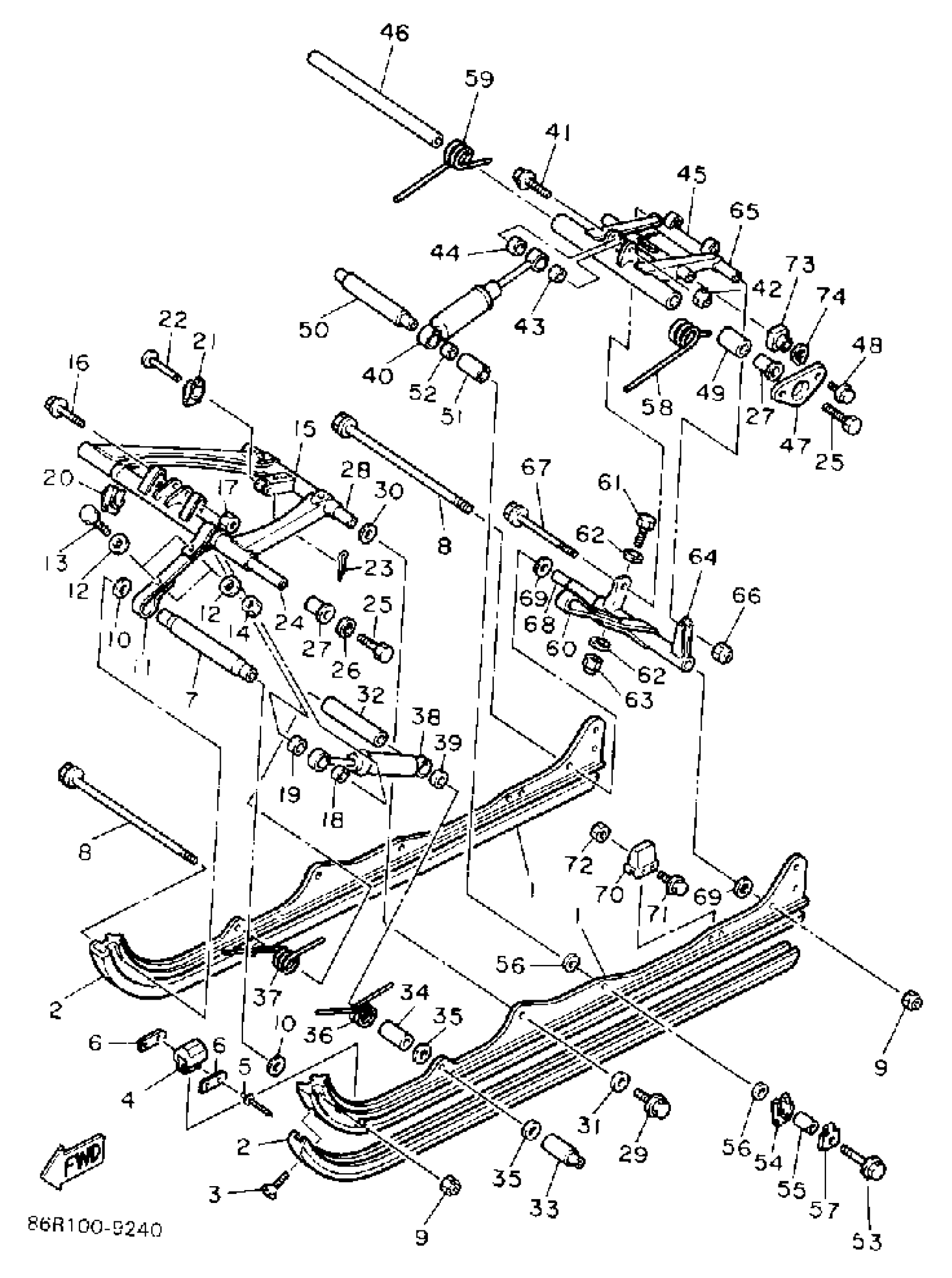

Yamaha VK540EP (VK540) 1990 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
83R-47411-00-00
Unavailable
2
RUNNER, SLIDING 1 (83R-47421-10-00)
83R-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
DAMPER 1
83R-47456-00-00
Unavailable
5
RIVET, BLIND (8K4)
90267-48062-00
$3.66
6
PLATE, DAMPER
8K2-47458-01-00
$4.77
7
BRACKET 1
83R-47415-00-00
Unavailable
8
BOLT, WASHER BASED
90105-08482-00
Unavailable
9
NUT, SELF-LOCKING
90185-08169-00
$8.49
10
.. WASHER, PLATE
92990-08600-00
Unavailable
11
STOPPER 1
83R-47495-01-00
Unavailable
12
WASHER, PLATE
90201-06747-00
$8.49
13
BOLT, HEXAGON
97017-06025-00
$4.24
14
NUT, NYLON
95707-06300-00
$3.50
15
ARM,PIVOT 1
83R-47331-01-00
Unavailable
16
BOLT, FLANGE
95817-08040-00
Unavailable
17
NUT, SELF-LOCKING
90185-08169-00
$8.49
18
COLLAR(82M)
90387-084R5-00
Unavailable
19
BUSH, SOLID
90380-12161-00
Unavailable
20
HOOK 2
83R-47447-00-00
Unavailable
21
HOOK 2
890-47447-00-00
Unavailable
22
PIN, CLEVIS (90240-12107-00)
90240-12136-00
Unavailable
23
PIN, COTTER
91490-30030-00
Unavailable
24
SHAFT 1
83R-47465-02-00
Unavailable
25
BOLT (8V0)
90109-10771-00
Unavailable
26
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
27
BUSH(83R)
90386-20155-00
Unavailable
28
SHAFT 3
83R-47485-02-00
Unavailable
29
BOLT, FLANGE
95817-10030-00
Unavailable
30
COLLAR (8U7)
90387-105G6-00
Unavailable
31
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
32
COLLAR
90387-167T2-00
Unavailable
33
COLLAR
90387-166M8-00
Unavailable
34
COLLAR
83R-47319-00-00
Unavailable
35
WASHER, PLATE
90201-161E5-00
Unavailable
36
SPRING, FRONT 1
83R-47471-01-00
Unavailable
37
SPRING,FRONT.2
83R-47472-01-00
Unavailable
38
SHOCK ABSORBER 2
8AT-47481-10-00
Unavailable
39
BUSH, PIVOT
8V0-47371-00-00
Unavailable
40
SHOCK ABSORBER
83R-47480-00-00
Unavailable
41
BOLT, FLANGE
95817-08040-00
Unavailable
42
NUT, SELF-LOCKING
90185-08169-00
$8.49
43
COLLAR(82M)
90387-084R5-00
Unavailable
44
BUSH, SOLID
90380-12161-00
Unavailable
45
ARM, PIVOT 2
83R-47332-00-00
Unavailable
46
SHAFT 2
83R-47475-02-00
Unavailable
47
BRACKET, REAR 2
83R-47425-00-00
Unavailable
48
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
49
COLLAR 1
83R-47365-00-00
Unavailable
50
SHAFT 4
8AT-47486-00-00
Unavailable
51
COLLAR
83R-47338-00-00
Unavailable
52
BUSH, PIVOT
8V0-47371-00-00
Unavailable
53
BOLT, FLANGE
95817-10060-00
Unavailable
54
HOOK 2
85K-47447-01-00
Unavailable
55
COLLAR
90387-103U7-00
Unavailable
56
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
57
PLATE, GUIDE
83R-47467-00-00
Unavailable
58
SPRING, REAR 1
83R-47473-00-00
Unavailable
59
SPRING, REAR 2
83R-47474-00-00
Unavailable
60
STOPPER 2 (83R-47496-00)
89F-47496-00-00
Unavailable
61
BOLT, HEXAGON
97017-06025-00
$4.24
62
WASHER, PLATE
90201-06747-00
$8.49
63
NUT, NYLON
95707-06300-00
$3.50
64
BRACKET 3
83R-47417-00-00
Unavailable
65
COLLAR (899 SUSPENSION)
90387-08496-00
Unavailable
66
NUT, NYLON
95717-08300-00
Unavailable
67
BOLT, FLANGE
95812-08225-00
Unavailable
68
COLLAR
90387-085T4-00
Unavailable
69
WASHER (1T1)
90201-08649-00
Unavailable
70
DAMPER 2
83R-47457-00-00
Unavailable
71
BOLT, FLANGE
95817-06040-00
Unavailable
72
NUT, U FLANGE
95604-06200-00
Unavailable
73
HOOK 1
86S-47446-01-00
Unavailable
74
CIRCLIP(13H)
99009-14400-00
Unavailable
